4 SYSTEM COMPONENTS
4.1.4 CLV651 Laser Bar Code Scanner (Option)

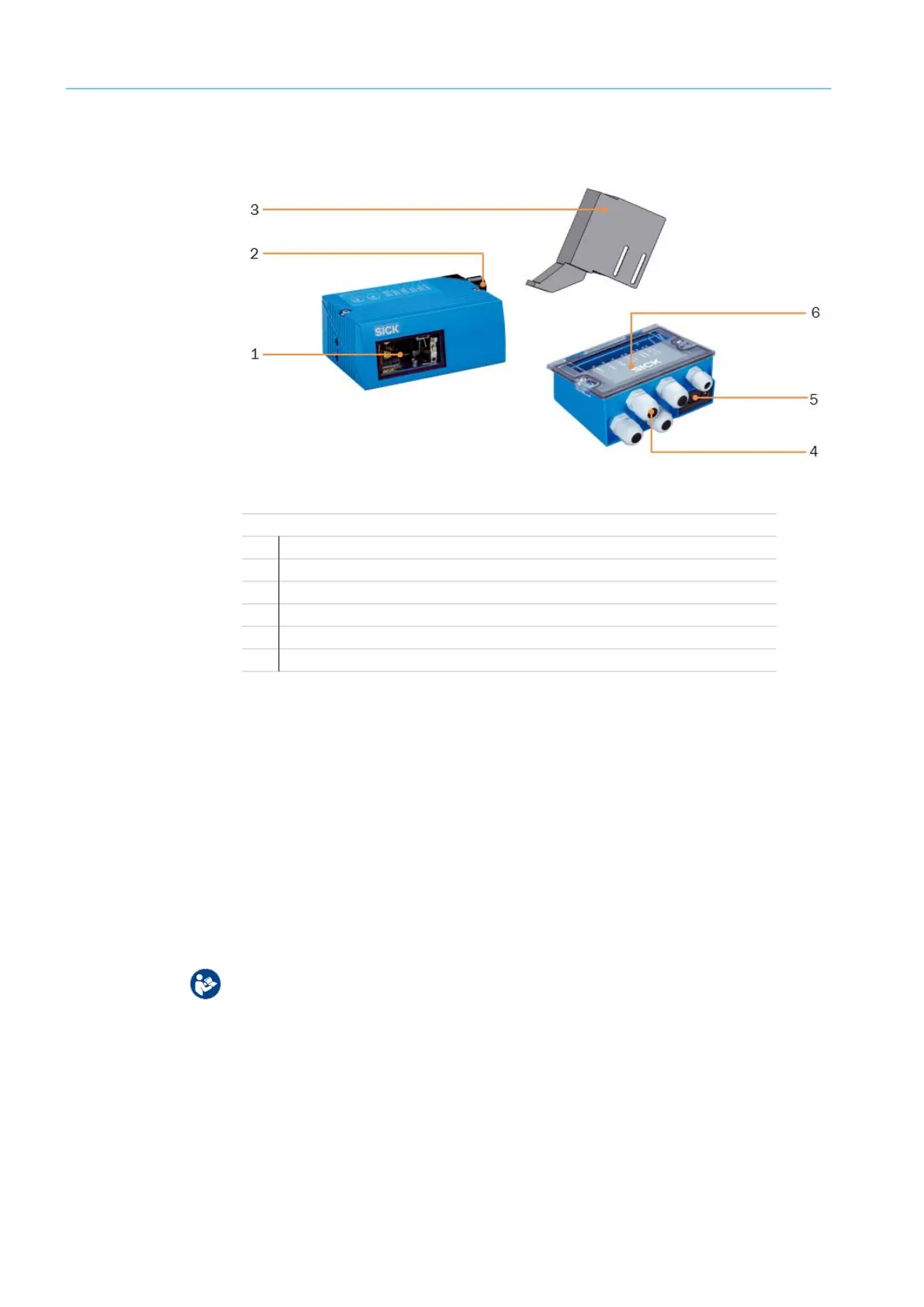

Fig. 12: CLV651 with cleaning unit and connection unit
Function
● CLV651 are used when there is not enough space under the belt. Distance floor to top of
belt < 750mm
● The CLV651 operates in the same way as the CLV691 fixed mount bar code scanner
● The bar code is read through a gap in the belt. Recommended gap: 50mm
● Each fixed mount bar code scanner features a cleaning unit
Connection unit
● The individual readers are connected via a CDB620 connection unit
● This allows for central voltage supply of the fixed mount bar code scanners and connec-
tion to one another via CAN bus
Legend
1
Viewing window
2
Swivel connection
3
Cleaning unit
4
Cable glands
5
Connection type
6
Connection card inside the housing with LEDs, terminal strip and switches
For further information about the CLV651, refer to the respective SICK operating instruc-
tions.
