4 SYSTEM COMPONENTS
4.3.2 Modules with/without Antenna
The RFID system consists of modules that can be freely combined, enabling the tunnel
design to be adapted to the relevant on-site conditions quickly and conveniently.
As a result, the RFID system can respond flexibly to the different widths and heights of con-
veying systems, as well as to the different positions of tags on the objects passing through
it.
For the supporting of the modules a supporting frame is in scope of supply by SICK.
Reader modules
Reader modules feature an integrated antenna and integrated absorber panels.
These are covered on the inside by a plastic panel.

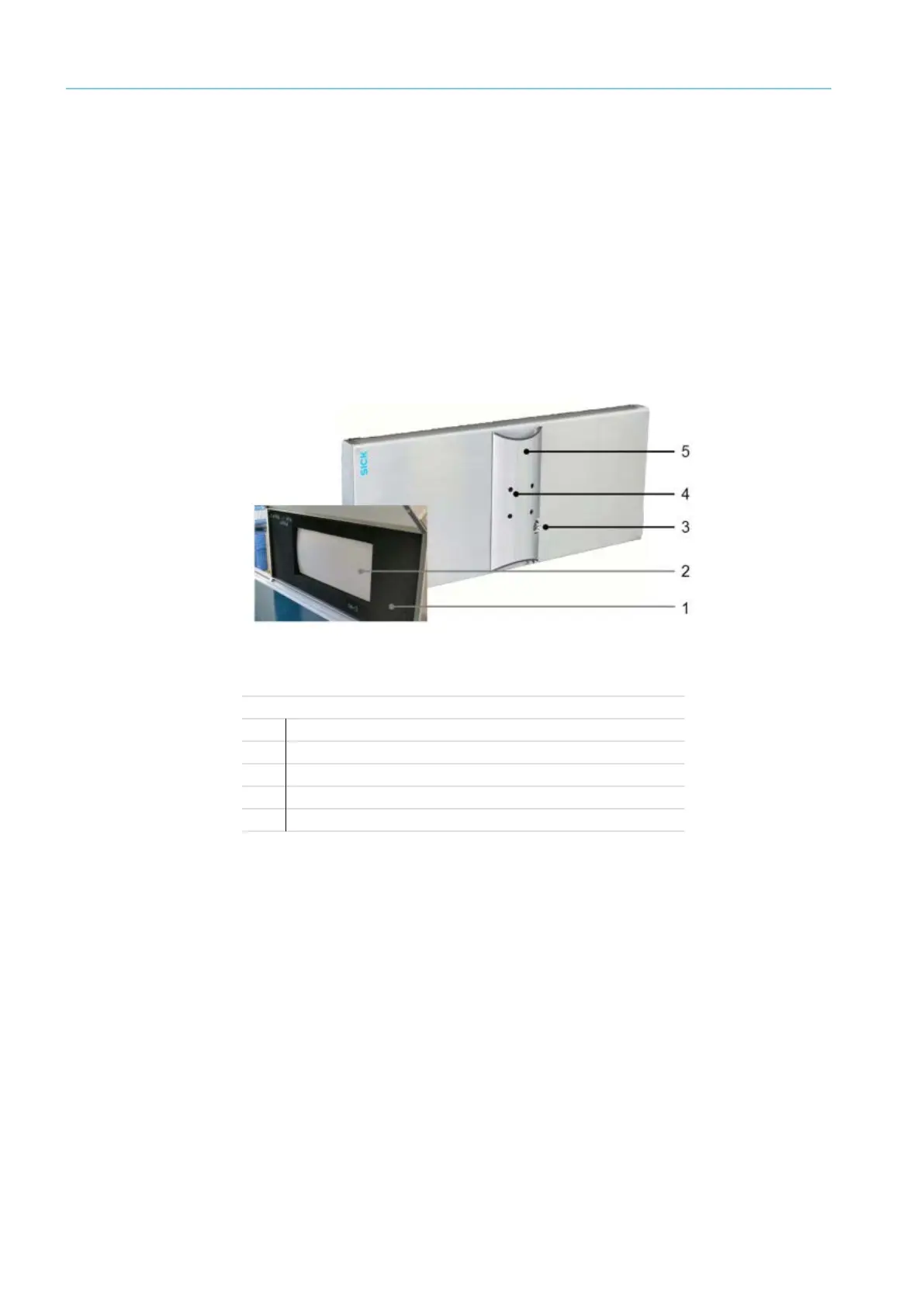

Abb. 16: Reader modules
Legend
1
Module with integrated antenna
2
Integrated absorber panel
3
Antenna downlead
4
Cutouts for antenna mounting
5
Cable channel
