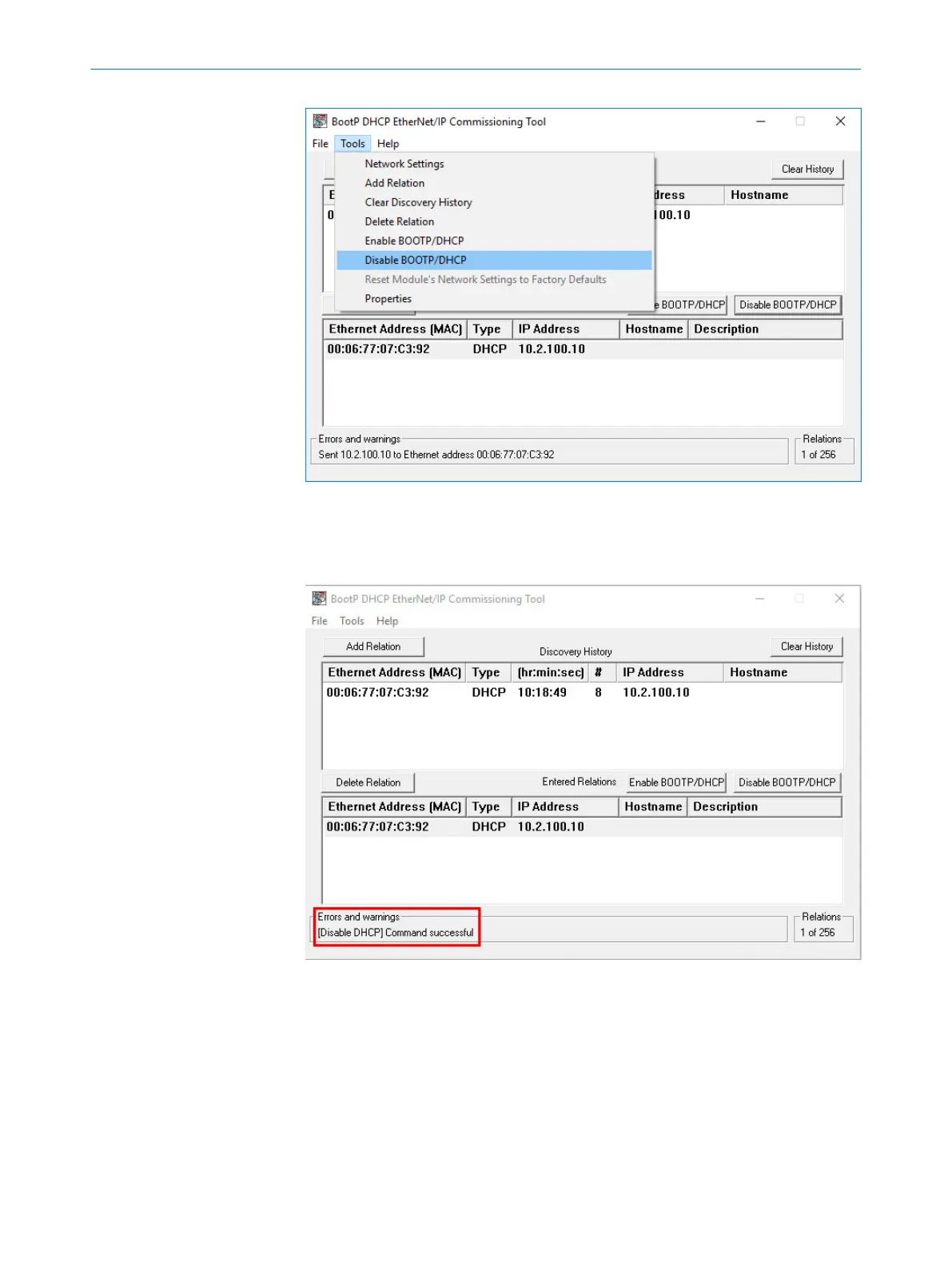

Figure 26: Alternative activation of the Disable BOOTP/DHCP button
✓
If the Disable DHCP command was successful (see status message at Errors and
warnings), then the encoder is ready for use in the network with the newly assigned
IP address.
Figure 27: Disable DHCP status message
✓
Leaving the address switches in the “000” position ensures that the encoder
always reads the IP address correctly assigned via DHCP from the encoder’s
EEPROM at every restart.
5.2.4 Checking integration into EtherNet/IP via RSLinx Classic
The RSLinx Classic tool can be used to check again whether the control detects the set IP
address.
5 CONFIGURATION USING A PLC
50
