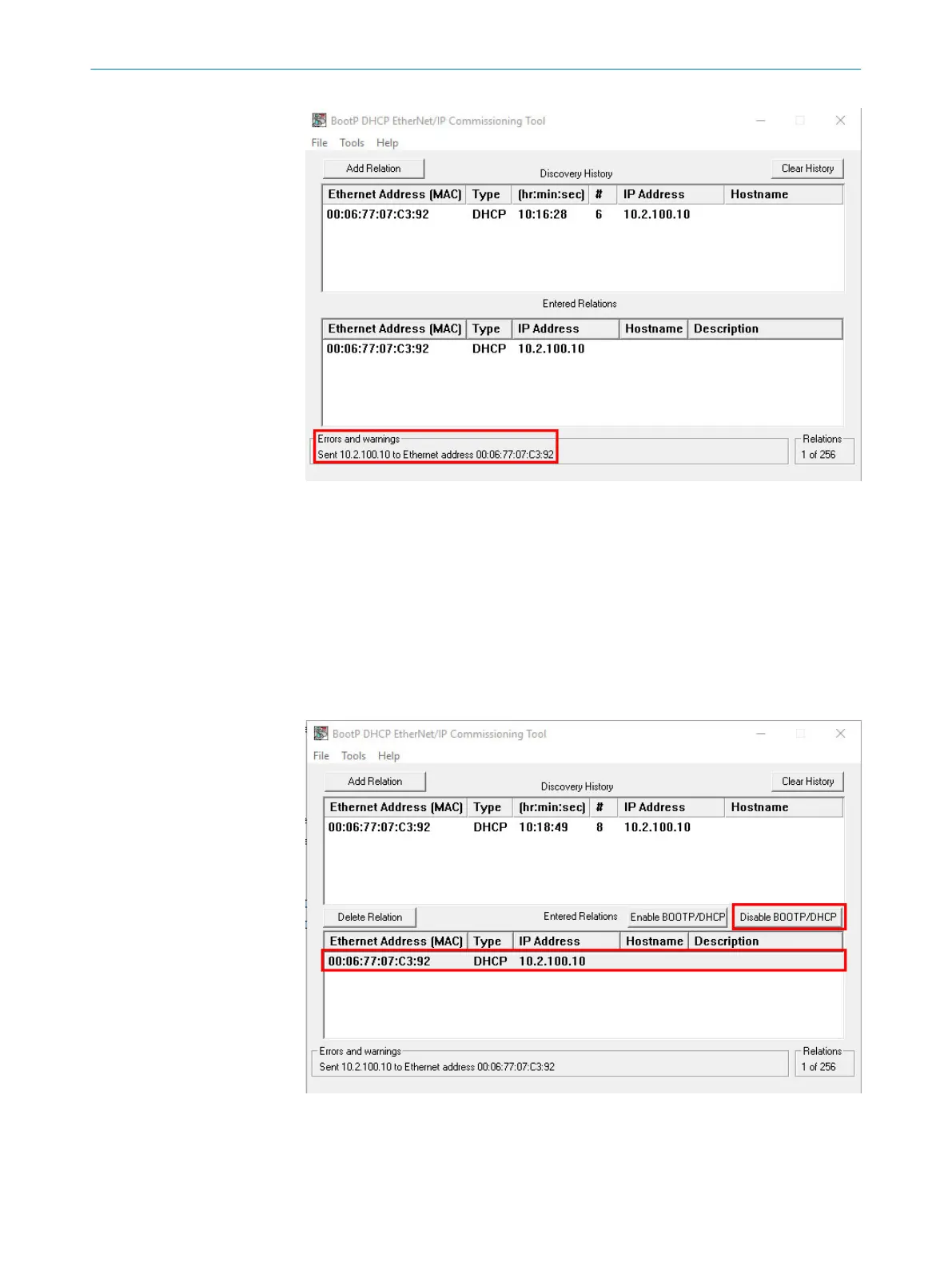

Figure 24: IP address assigned successfully
5.2.3 Freezing the assigned IP address
1. Switch off encoder (supply voltage off).
2. Set value “000” via the three address switches.
3. Switch on encoder (supply voltage on).
Deactivating DHCP server
4. Click on the encoder address line in the lower window area to activate the Disable
BOOTP/DHCP button.
5. Click the Disable BOOTP/DHCP button to deactivate the encoder’s DHCP server.
Figure 25: Disable BOOTP/DHCP button
6. If the button does not respond to this request, the Disable BOOTP/DHCP option can
alternatively be activated via the Disable BootP/DHCP menu option under Tools.
CONFIGURATION USING A PLC
5
8014213/1EF3/2021-12-08 | SICK O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP
49
Subject to change without notice
