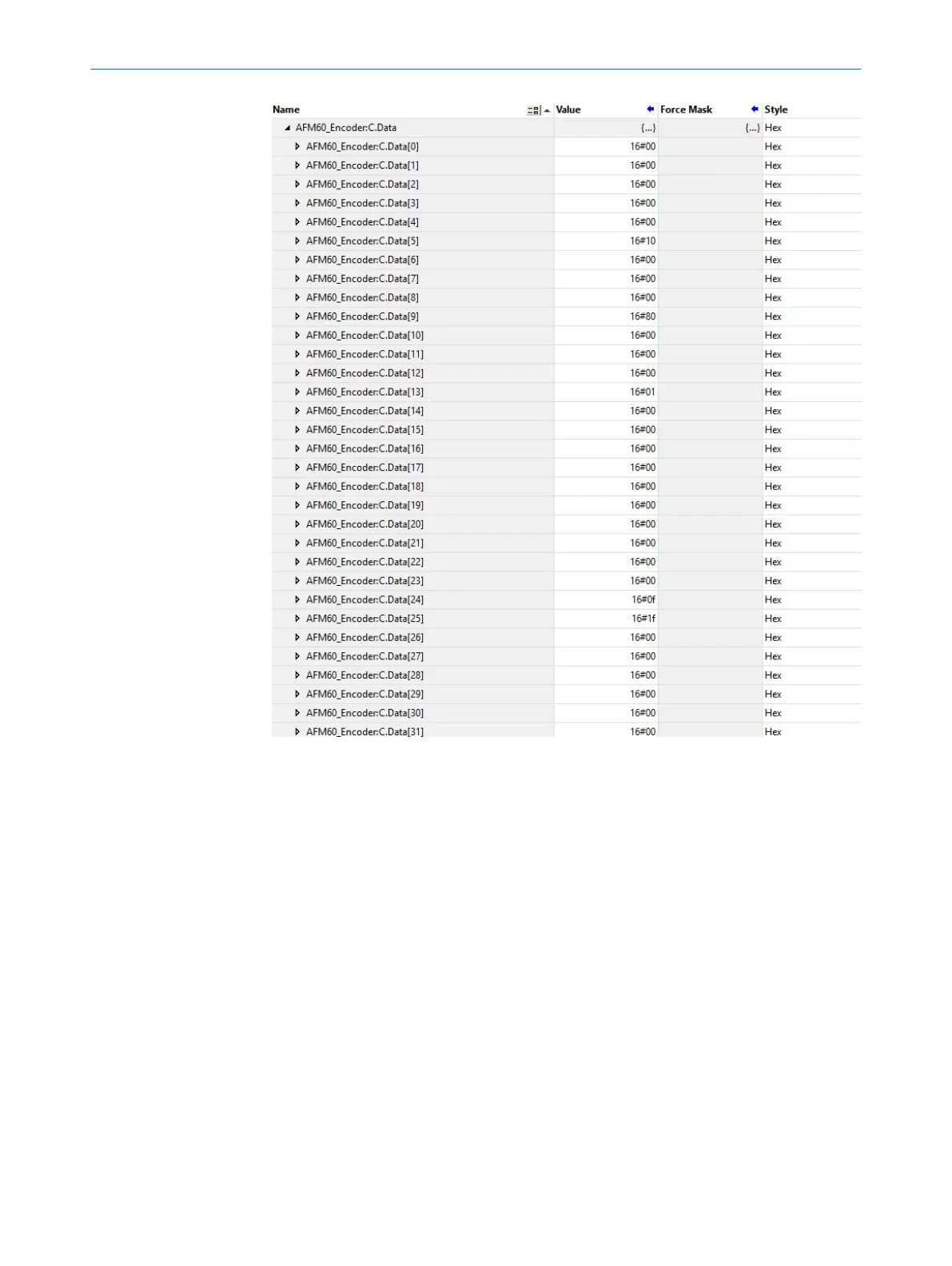

Figure 59: Example data for a configuration assembly
•
Steps per revolution CPR = 4,096 = 1000h
C.Data[4] 00h and C.Data[5] 10h
•
Total resolution CMR = 32,768 = 8000h
C.Data[8] 00h and C.Data[9] 80h
•
Direction of rotation cw = 0
C.Data[12] 00h
•
Scaling on = 1h
C.Data[13] 01h
•
Speed format = 1F0Fh
C.Data[24] 0Fh and C.Data[25] 1Fh
5.7.2 Downloading the configuration to the control
1. Load the configuration for the controller.
5 CONFIGURATION USING A PLC
