turns/s
°
turns/min
°
turns/h
•
Acceleration unit (attribute ID 1Eh)
°
counts/ms²
°
counts/s²
°
turns/s²
°
rad/s²
•
Temperature unit (attribute ID 65h)
°
°C (Celsius)
°
°F (Fahrenheit)
6.2.3 Changing preset value
On this page, the preset value of the position sensor object can be parameterized
(attribute ID 13h, see figure 112, page 98).
DANGER
Before changing the preset value, check whether there is any danger from the machine
or system in which the encoder is integrated!
As soon as the value has been entered and the entry has been confirmed with the
[Enter] key, the value is accepted as the position value.
The Preset function can lead to an immediate change of the position value output by
the encoder.
This could cause an unexpected movement that could endanger people or damage the
system or other objects.
NOTE
The Preset function should only be used when the encoder is at a standstill.
6.2.4 Triggering preset
This page shows the current position value of the encoder and the preset value (attrib‐
ute ID 13h) from the position sensor object.

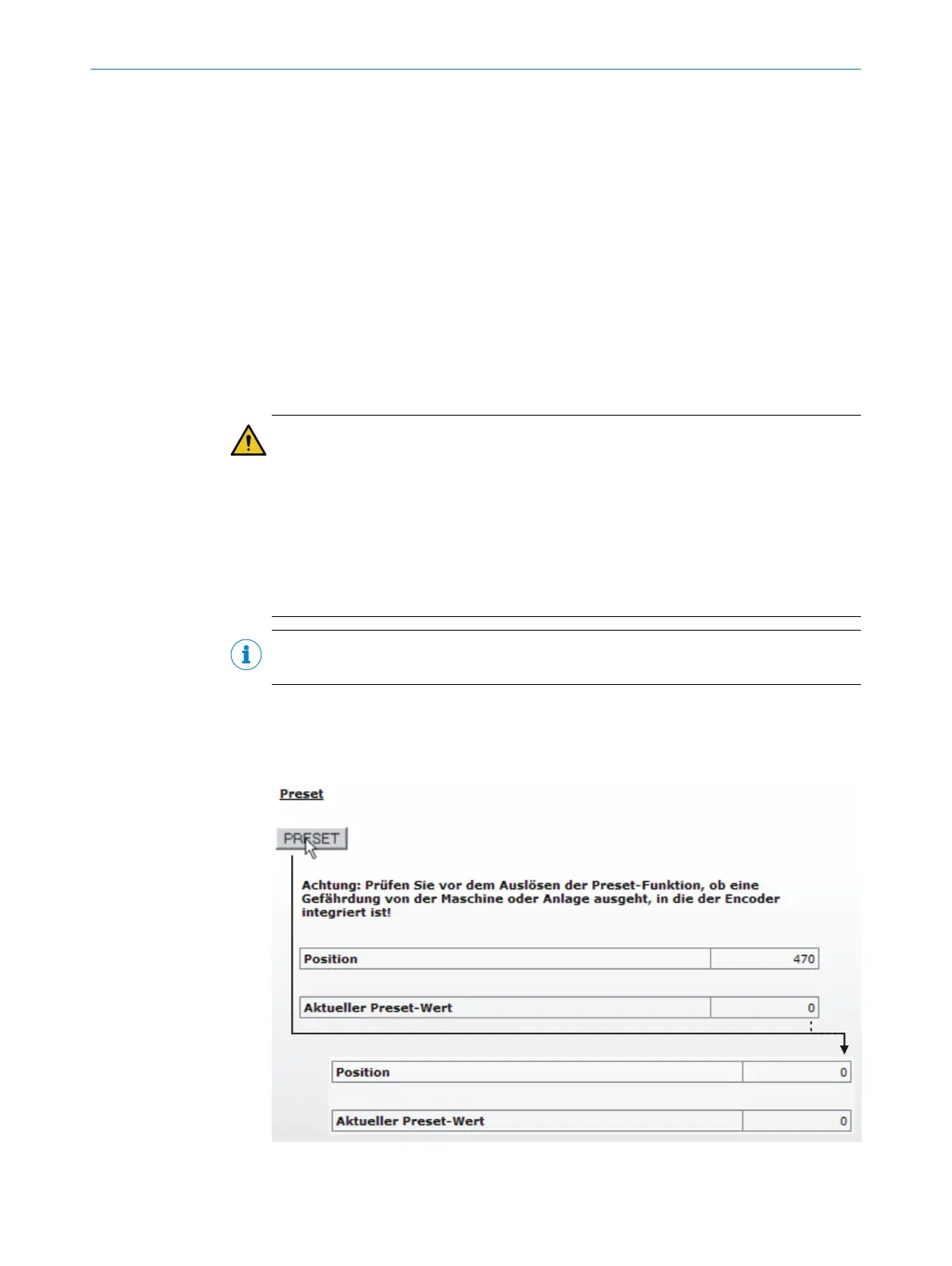

Figure 110: Triggering preset
6
CONFIGURATION USING THE INTEGRATED WEB SERVER
98
O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP 8014213/1EF3/2021-12-08 | SICK
Subject to change without notice
