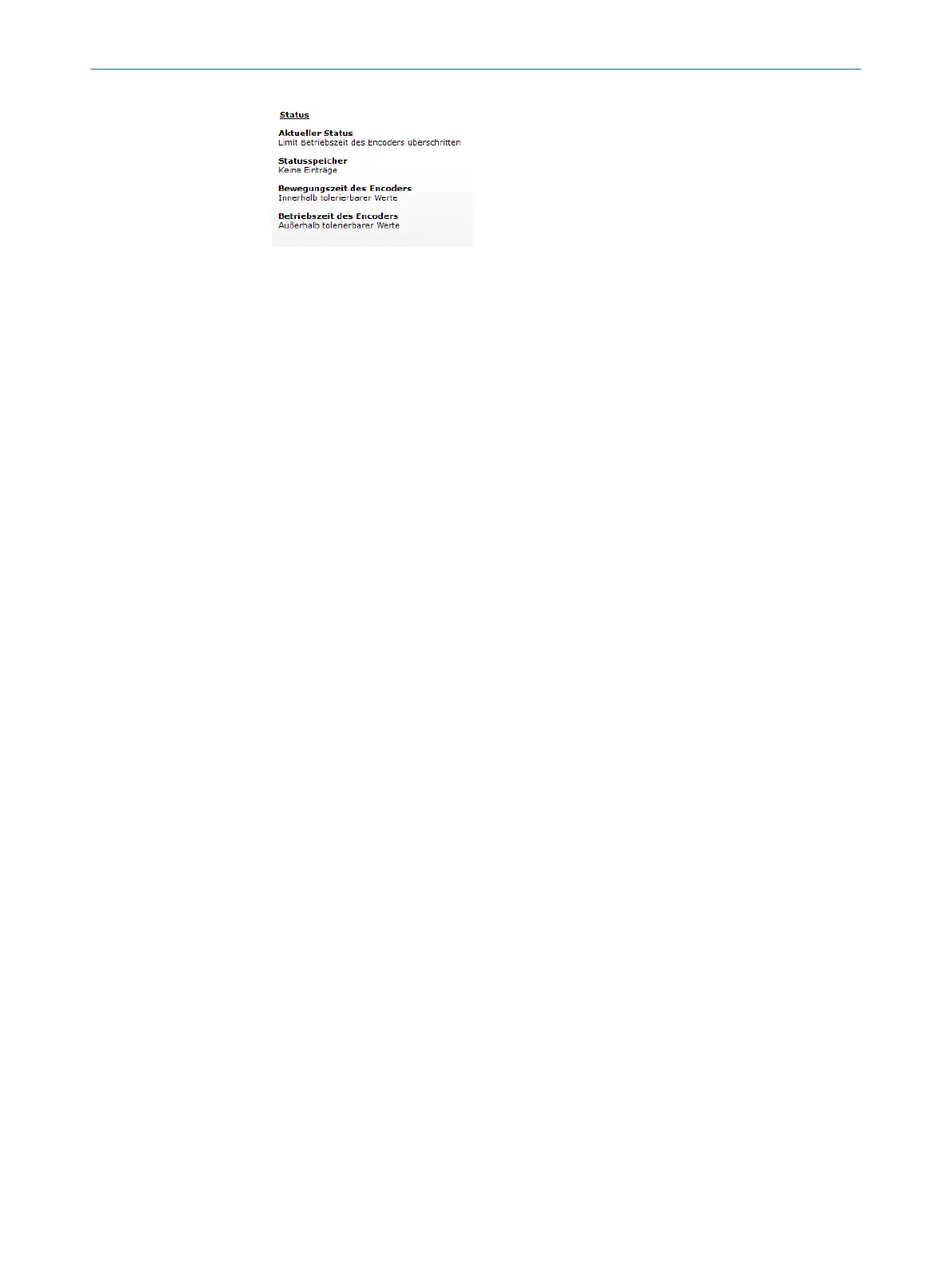

Figure 113: Diagnostic status
•
Aktueller Status
The last three messages since switch-on are displayed (after switching off and
switching back on, the memory is empty).
•
Statusspeicher
The texts for warnings, alarms and errors from the Fault header are displayed (see
table 33, page 108). If no warning, no alarm and no error has occurred yet, the
displayed text is Keine Einträge.
•
Bewegungszeit des Encoders
Indicates whether the movement time is within the tolerated values (see "Limits",
page 100).
•
Betriebszeit des Encoders
Indicates whether the operating time is within the tolerated values (see "Limits",
page 100).
6.3.2 Speed
This page shows the following values for the speed from the position sensor object (see
table 24, page 29):
•
Speed unit (attribute ID 19h)
•
Current speed (attribute ID 18h)
•
Highest speed that the encoder has reached since commissioning (attribute ID
6Dh)
•
Lower speed limit (attribute ID 1Bh)
•
Upper speed limit (attribute ID 1Ch)
6.3.3 Temperature
This page shows the following values for the temperature from the position sensor
object (see table 24, page 29):
•
Temperature unit (attribute ID 65h)
•
Current temperature (attribute ID 64h)
•
Highest operating temperature reached (attribute ID 6Fh)
•
Lowest operating temperature reached (attribute ID 70h)
•
Lower limit of the temperature (attribute ID 67h)
•
Upper limit of the temperature (attribute ID 68h)
6.3.4 Time
This page shows the following values for the movement and operating times of the
encoder from the position sensor object (see table 24, page 29):
•
Stored movement time in seconds (attribute ID 6Bh)
•
Limit of movement time in hours (see "Limits", page 100)
•
Stored operating time in seconds (attribute ID 6Ch)
•
Limit of operating time in hours (see "Limits", page 100)
6 CONFIGURATION USING THE INTEGRATED WEB SERVER
102
O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP 8014213/1EF3/2021-12-08 | SICK
Subject to change without notice
