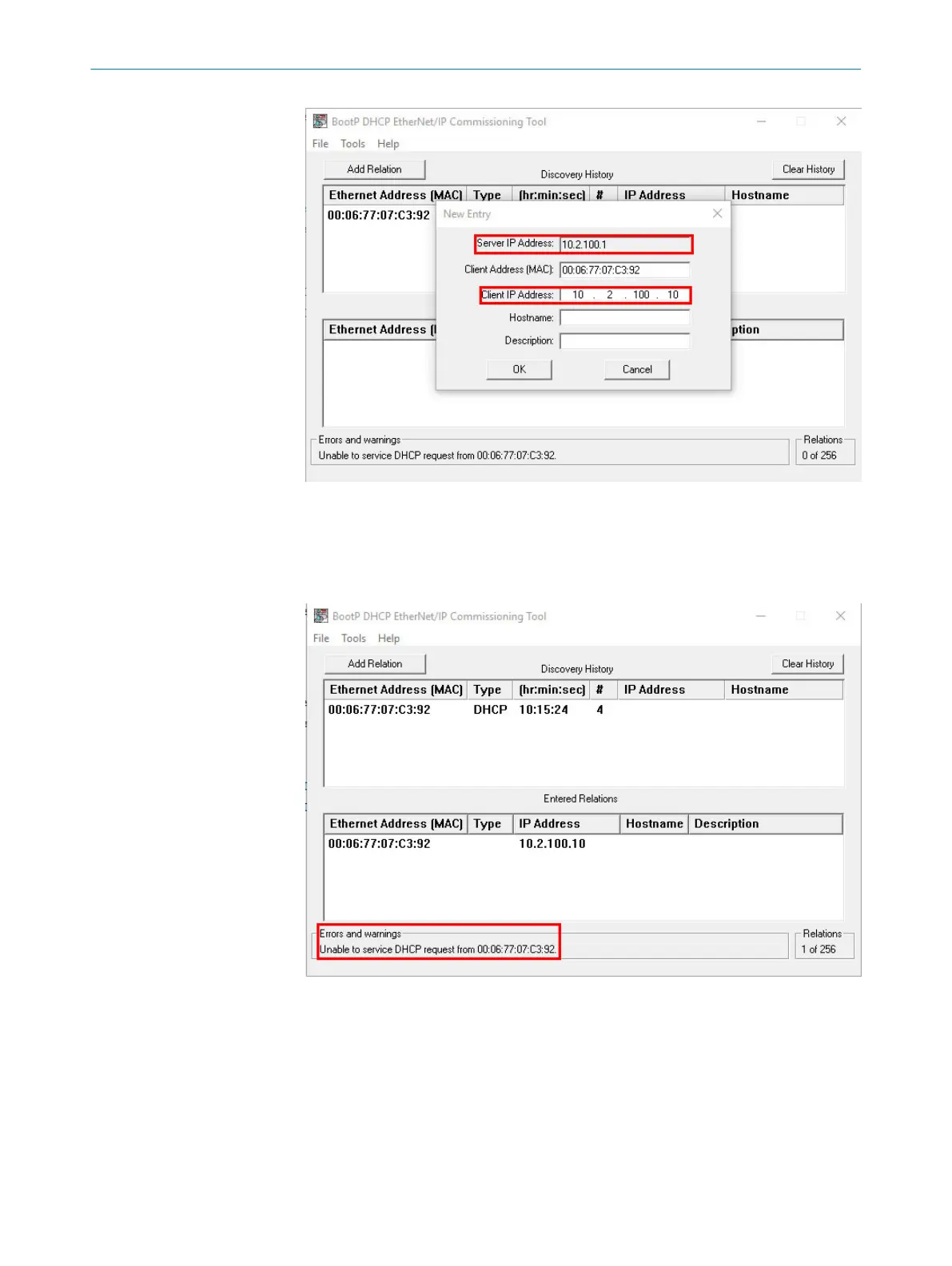

Figure 22: IP address assignment
✓
Once the encoder has been assigned an IP address in BootP, BootP starts to
respond and sends the corresponding IP address to the encoder (via its MAC
address).
This typically takes up to 30 seconds.
Figure 23: Sending the IP address to the encoder
✓
As soon as the encoder has correctly received the assigned IP address, the status
message at Errors and warnings changes accordingly.
5
CONFIGURATION USING A PLC
48
O P E R A T I N G I N S T R U C T I O N S | AFS/AFM60 EtherNet/IP 8014213/1EF3/2021-12-08 | SICK
Subject to change without notice
