Application examples and
connection diagrams
7.5 C2000 and emergency stop on the UE410-MU/XU,
two hazardous areas
Program 7 with restart interlock and EDM
7.6 i11 on the UE410-MU/XU, two independent hazardous
areas
Program 8 with restart interlock and EDM

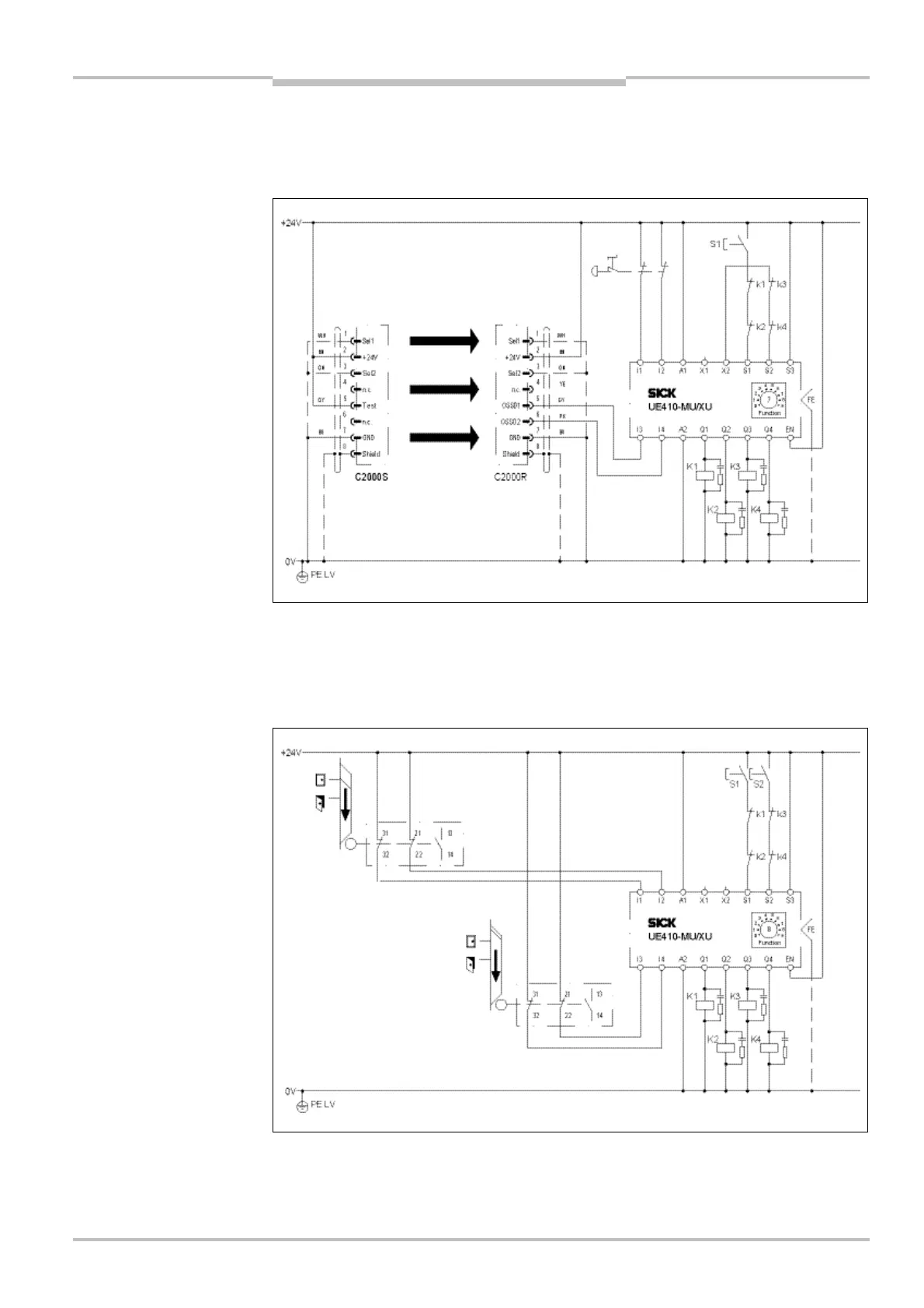

Fig.
45
:
Connection of a
C2000 and emergency stop
to the UE410-MU/XU
Fig.
46
:
Connection of two
i11 to the UE410-MU/XU, two
hazardous areas
