Application examples and
connection diagrams
7.3 RE300 on the UE410-MU/XU
Program 2 with restart interlock and EDM
7.4 Two-hand IIIC on the UE410-MU/XU
Program 4 without restart interlock and with EDM

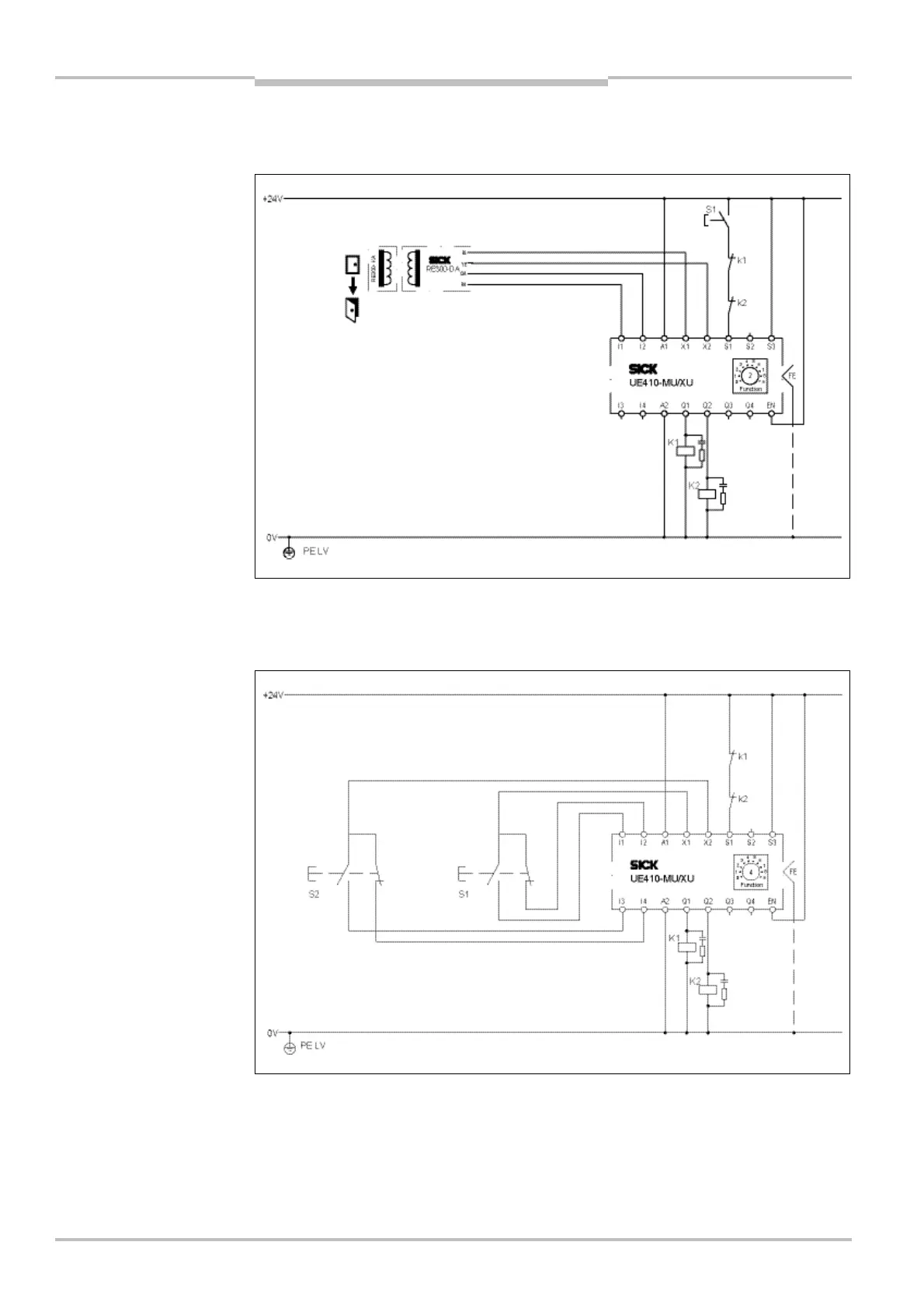

Fig.
43
:
Connection of an
RE300 to the UE410-MU/XU
Fig.
44
:
Connection of a two
-
hand switch IIIC to the
UE410-MU/XU
