Mounting/dismantling
= If there are several modules, slide the modules together individually in the direction of
the arrow until the side plug connection latches in.
= Install end clips on the right and left.
5.2 Steps for dismantling the modules
= Remove the plug-in terminals with wiring and the end clips.

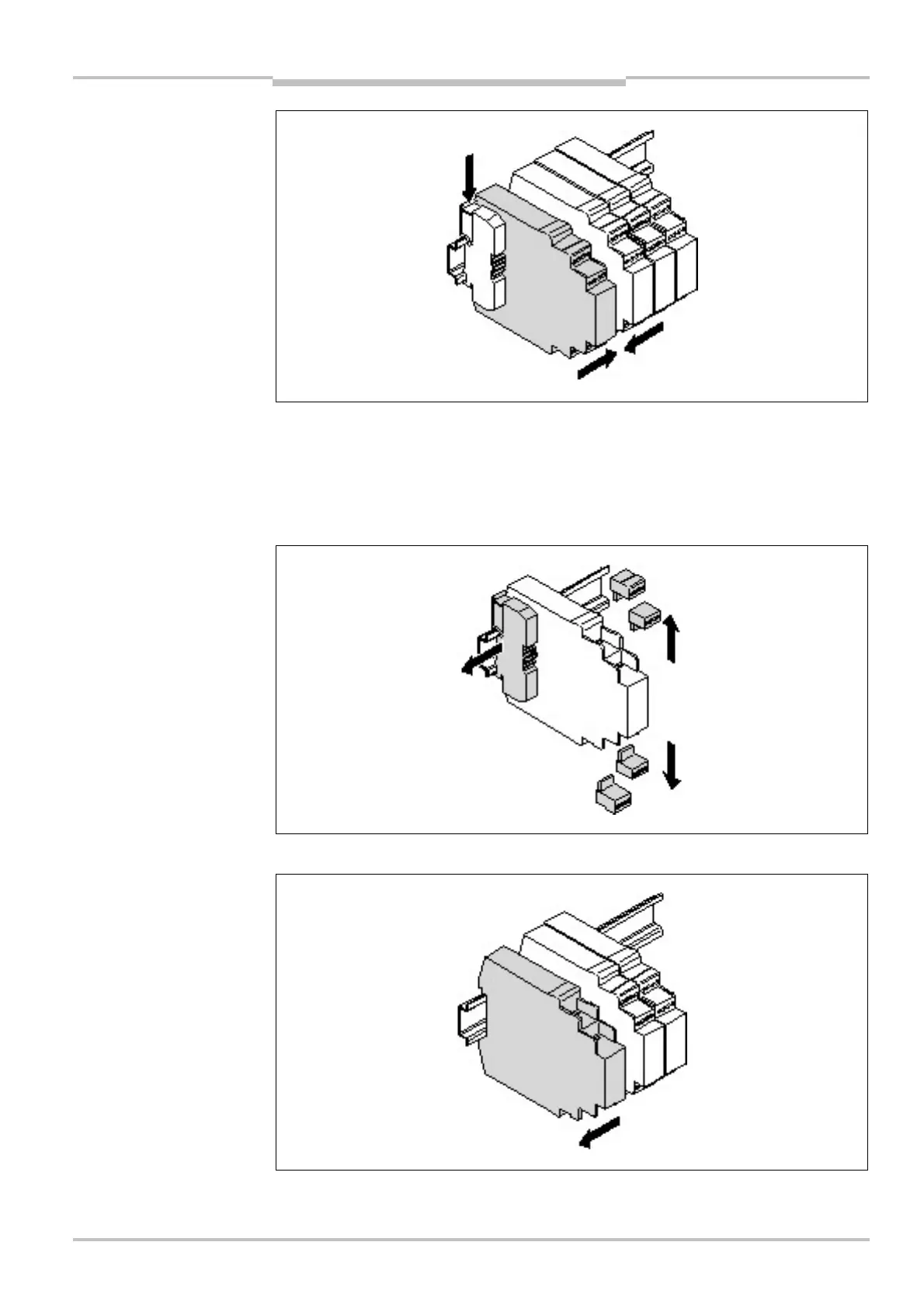

Fig.
36
:
Installing the end
clips
Fig.
37
:
Removing the plug
-
in
terminals
Fig.
38
:
Disconnecting the
plug connection
