SICK Flexi Classic series User Manual

Operating instructions Chapter 3
Flexi Classic
8011509/YPP0/2015-10-26 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 37
Subject to change without notice
Product description

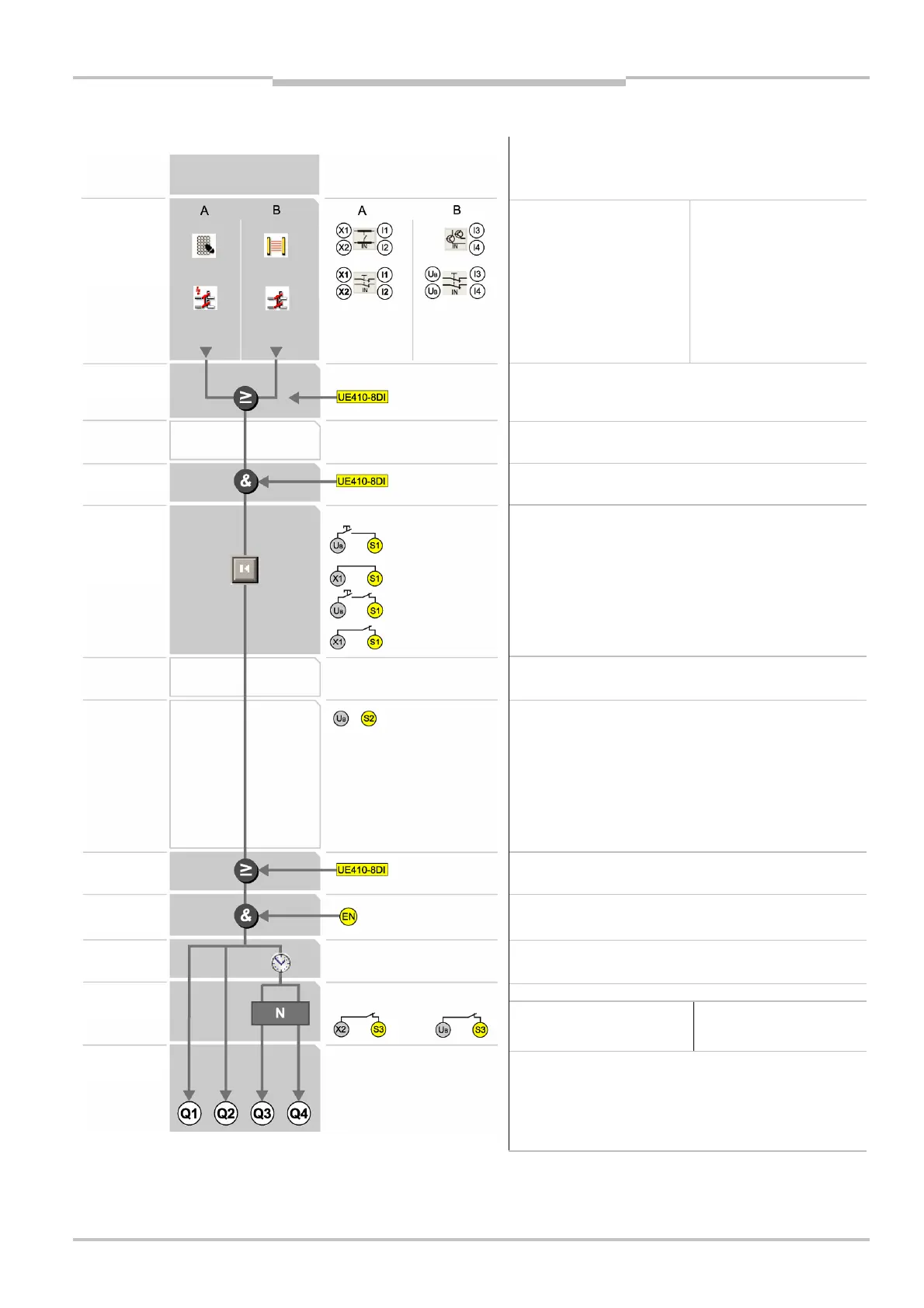

3.6.1 Program 1
A
Dual-channel equivalent N/C
contact
Cross-circuit detecting control
signals
Synchronous time monitoring
(1500 ms)
Pressure-sensitive switching
mats (four-wire)
Flexi Loop
B
Single-channel N/C contact
Dual-channel equivalent N/C
contact (not cross-circuit
detecting)
ESPE (sensors with
semiconductor output)
OR with UE410-8DI — switch position 7
AND with UE410-8DI — switch position 1-6
Connecting of S1:
∂ with restart interlock Q1/Q2, without EDM
∂ without restart interlock Q1/Q2, without EDM
∂ with restart interlock Q1/Q2, with EDM
∂ without restart interlock Q1/Q2, with EDM
Connecting of S2:
S2 may not be connected.
OR limited 60 s with UE410-8DI — switch position 8
Always wire ENABLE (expected 24 V DC)!
At ENABLE low Q1-Q4 are always low.
Off delay acts on Q3/Q4
(not on UE410-xxxT0).
Connecting of S3:
with/without EDM Q3/Q4
∂ retriggering ON
with/without EDM Q3/Q4
∂ retriggering OFF
Undelayed OSSDs Q1/Q2
Delayable OSSDs Q3/Q4
Inputs/
sensors
OR
AND
Restart
interlock
Bypass
ENABLE
Off delay
Retriggering
Outputs
1 logic path
