SICK Flexi Classic series - IN4000 on the UE410-MUXU; C4000 on the UE410-MUXU, 2-Sensor Muting

Chapter 7 Operating instructions
Flexi Classic
88 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8011509/YPP0/2015-10-26
Subject to change without notice
Application examples and
connection diagrams
7.7 IN4000 on the UE410-MU/XU
Program 3.2 with restart interlock and EDM
7.8 C4000 on the UE410-MU/XU, 2-sensor muting
Program 3.1 with restart interlock and EDM

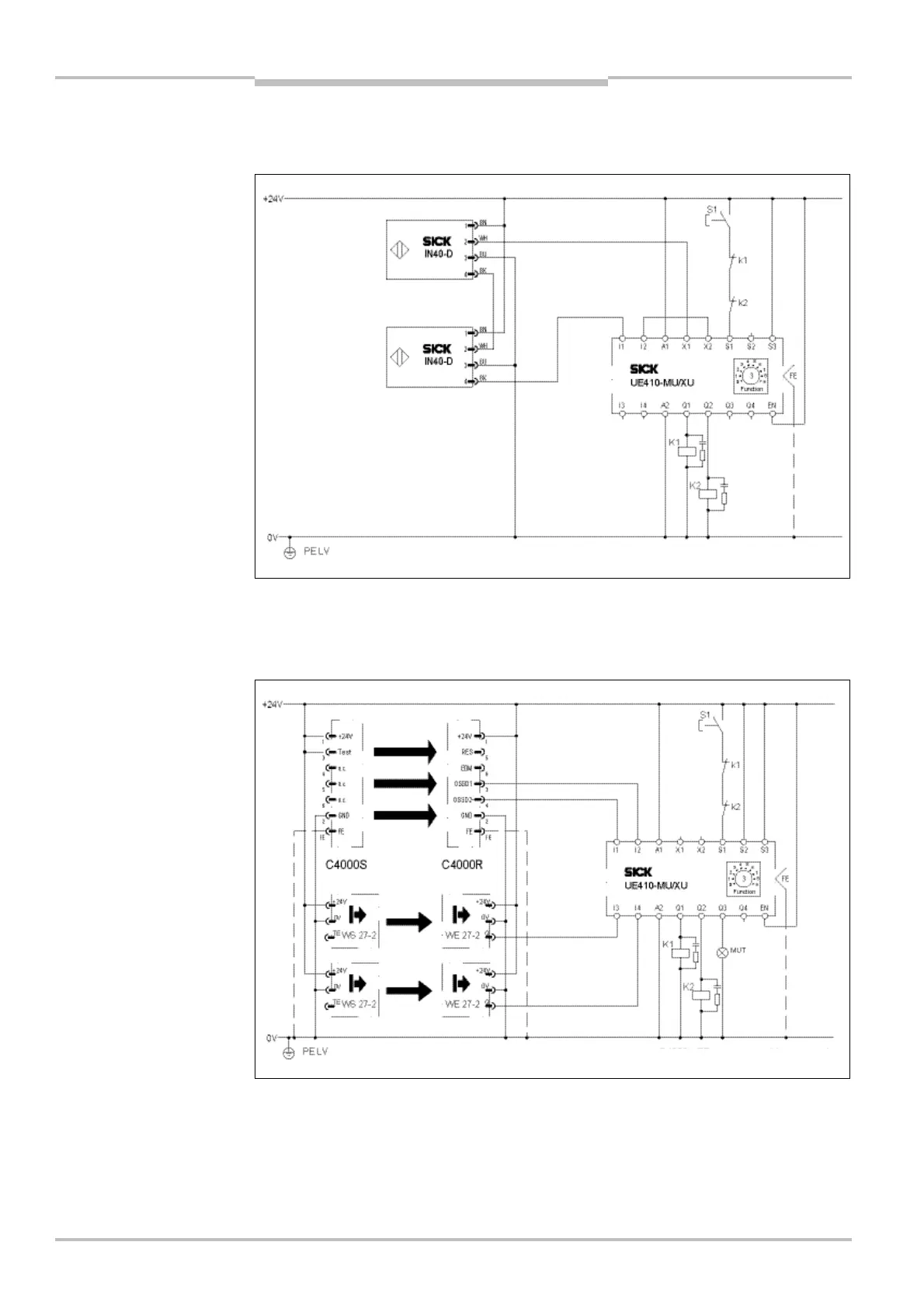

Fig.
47
:
Connection of two
IN4000 to the UE410-MU/XU
Fig.
48
:
Co
nnection of a
C4000 to the UE410-MU/XU,
2-sensor muting
C4000
-
FE must be connected
