SICK Flexi Classic series User Manual

Operating instructions Chapter 3
Flexi Classic
8011509/YPP0/2015-10-26 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 49
Subject to change without notice
Product description
3.7 UE410-GU programs
The UE410-GU has 9 programs that are set using the program switch.
The global emergency stop function with manual reset is active in all programs. Depending
on the program set, a local emergency stop function can also be configured with which it is
possible to choose between manual reset and automatic reset.
The selection of the program defines the type of safety sensor to be connected and the
principle of operation of the local reset. The operator logic is identical for all programs.

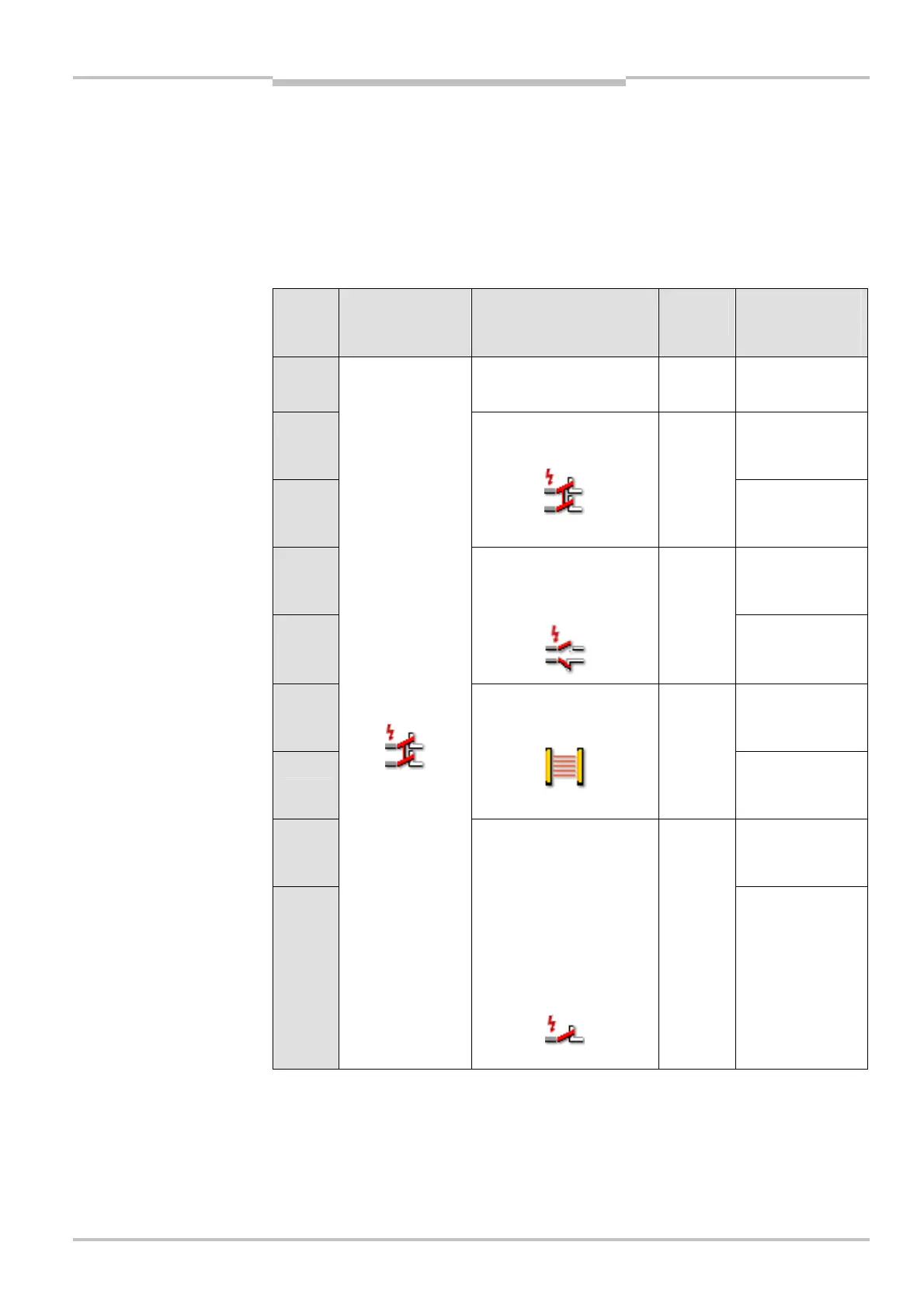

Program
Function I1/I2
(global emergency
stop)
Function I3/I4
(local emergency stop)
Moni-
toring
Function I6
(reset of the local
emergency stop)
5)
1 – – –
2 Manual
3
Equivalent switch, cross-
circuit detecting
I3–X1
I4–X2
Automatic
4 Manual
5
Dual-channel N/C / N/O
contact, complementary,
cross-circuit detecting
I3–X1
I4–X2
Automatic
6 Manual
7
OSSD or untested safety
switch
I3–Ux
6)
I4–Ux
Automatic
8 Manual
9
Equivalent switch,
cross-circuit
detecting
Single-channel N/C
contact, cross-circuit
detecting, e.g.
• emergency stop
pushbutton
• safety switch
• testable sensors
(e.g. L41)
I3–n. u.
7)
I4–X2
Automatic
Switch position 0 is not permitted.
5)
A reset button for the global emergency stop must always be connected to I6. This button also acts as the
reset button for manually resetting the local emergency stop if necessary.
6)
Ux = independent 24 V supply that must be connected to the same GND connection as the power supply for
the UE410-GU.
7)
Not connected, i.e. I3 must not be connected.
Tab.
19
:
UE410
-
GU
programs
Note
