4.3.2 Preventing unprotected areas
Overview
T
he safe multibeam scanner must be mounted so that people cannot enter unsecured
areas.
Undetected areas
T
he safe multibeam scanner has a field of view of 150°. Outside of this field of view,
there may be areas which cannot be detected by the safe multibeam scanner.
"
!

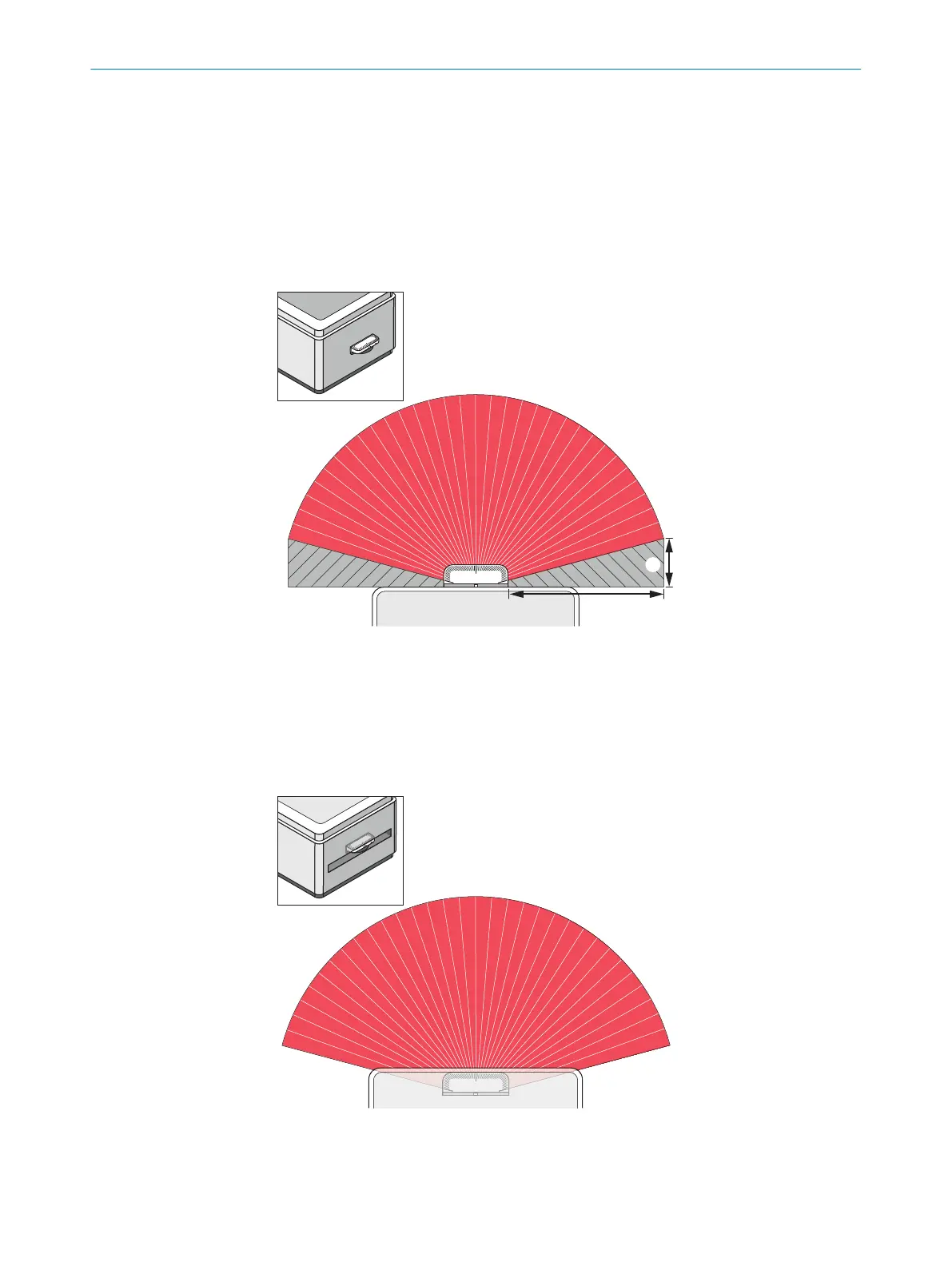

Figure 8: Unsecured areas
!
Width of the unsecured area
"
Length of the unsecured area
Remedial measures:
•
Mount
ing of deflector plates to protect the undetected areas
•
Mounting the safe multibeam scanner in the machine paneling
Figure 9: Example remedy: Install the safe multibeam scanner in the machine paneling
4 P
ROJECT PLANNING
18
O P E R A T I N G I N S T R U C T I O N S | scanGrid2 I/O 8025936/2021-01-08 | SICK
Subject to change without notice
