7.3.1 User interface

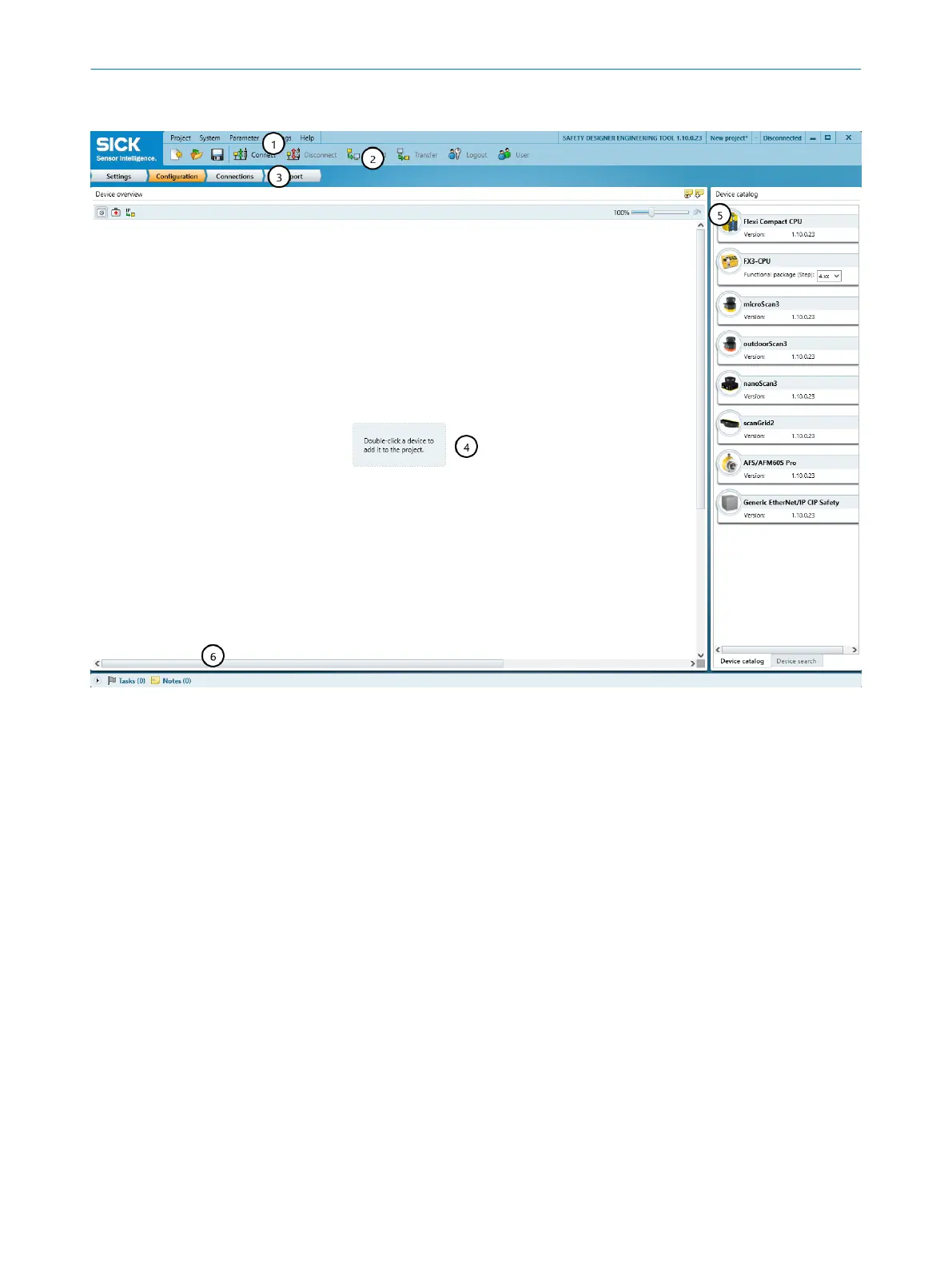

Figure 22: Software controls
1
Menu bar
2
Toolbar
3
Main navigation
4
Working range
5
Device catalog
6
Task list and notes
7.3.2 The device window for the safe multibeam scanner
Overview
T
he device window contains all device-specific settings, data and functions. The device
window has a similar user interface to the main window of Safety Designer.
You can switch between the different areas via the main navigation menu:
•
Overview: Here you can check the most important information as well as the
measurement data and the current status of the device (see "Overview (Safety
Designer)", page 48).
•
Configuration: Here you can set all the parameters that can be configured for
the safe multibeam scanner on various subpages (see "Configuring the safe multi‐
beam scanner (Safety Designer)", page 49).
•
Report: Here you can view the configuration of the device (see "Report (Safety
Designer)", page 57).
7 C
ONFIGURATION
44
O P E R A T I N G I N S T R U C T I O N S | scanGrid2 I/O 8025936/2021-01-08 | SICK
Subject to change without notice
