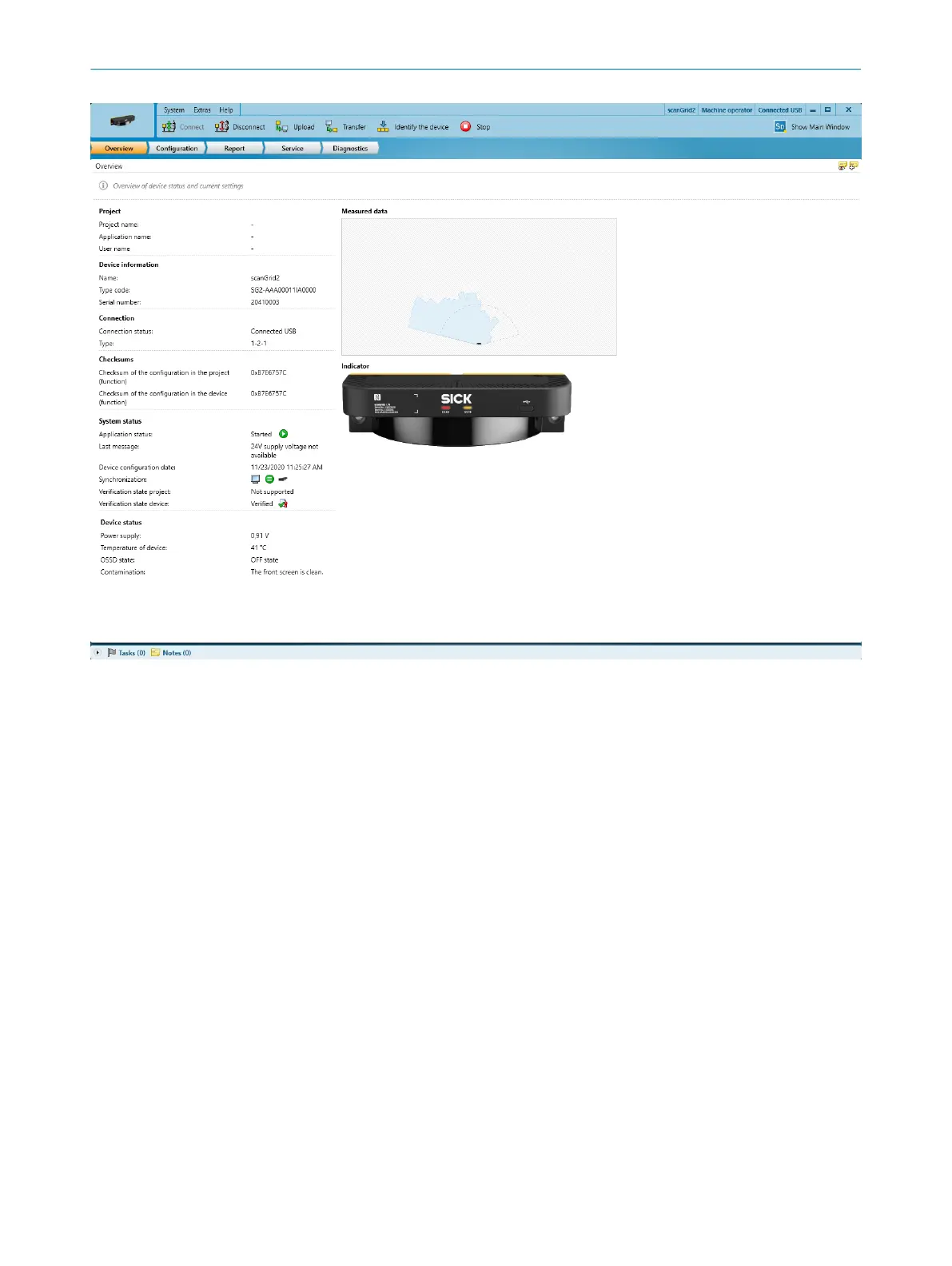

Figure 23: Device window (“Overview” page)
7.6 Configuring the safe multibeam scanner (Safety Designer)
Overview
T
he configuration of the safe multibeam scanner is initially performed on the computer
only and is saved in your Safety Designer project. This section describes the procedure
for configuring the device in Safety Designer and which configuration options you have.
To configure a safe multibeam scanner, you need to select the device in your project
and open it in the device window.
Approach
1.
In the main navigation menu of the device window, click on Configuration.
✓
The Configuration menu opens. The different pages within the configuration are
displayed in the Navigation area.
2. In the Navigation area, click on Identification.
✓
The Identification page opens. On this page, you specify the device name, applica‐
tion name and other attributes (see "Identification", page 50).
3. In the Navigation area, click on Fields.
✓
The Fields page opens. On this page, you create the field sets with fields and set
the object resolution and multiple sampling (see "Fields", page 50).
4. In the Navigation area, click on Inputs and outputs, local.
✓
The Inputs and outputs, local page opens. On this page, you assign signals to the
pins and configure various settings for the pins (see "Inputs and outputs, local",
page 53).
CONFIGURATION 7
8025936/2021-01-08 | SICK O P E R A T I N G I N S T R U C T I O N S | scanGrid2 I/O
49
