7.6.3 Inputs and outputs, local
Overview
On t
he Inputs and outputs, local page, you will find an overview of the connections of the
safe multibeam scanner. You can configure the following settings:
•
Selection of the signal for the Uni-O universal output
•
Selection of the signal level (Hi/Lo) for the Uni-O universal output
•
Selection between PNP and NPN mode for the OSSD pair
•
Setting the restart delay for the OSSD pair

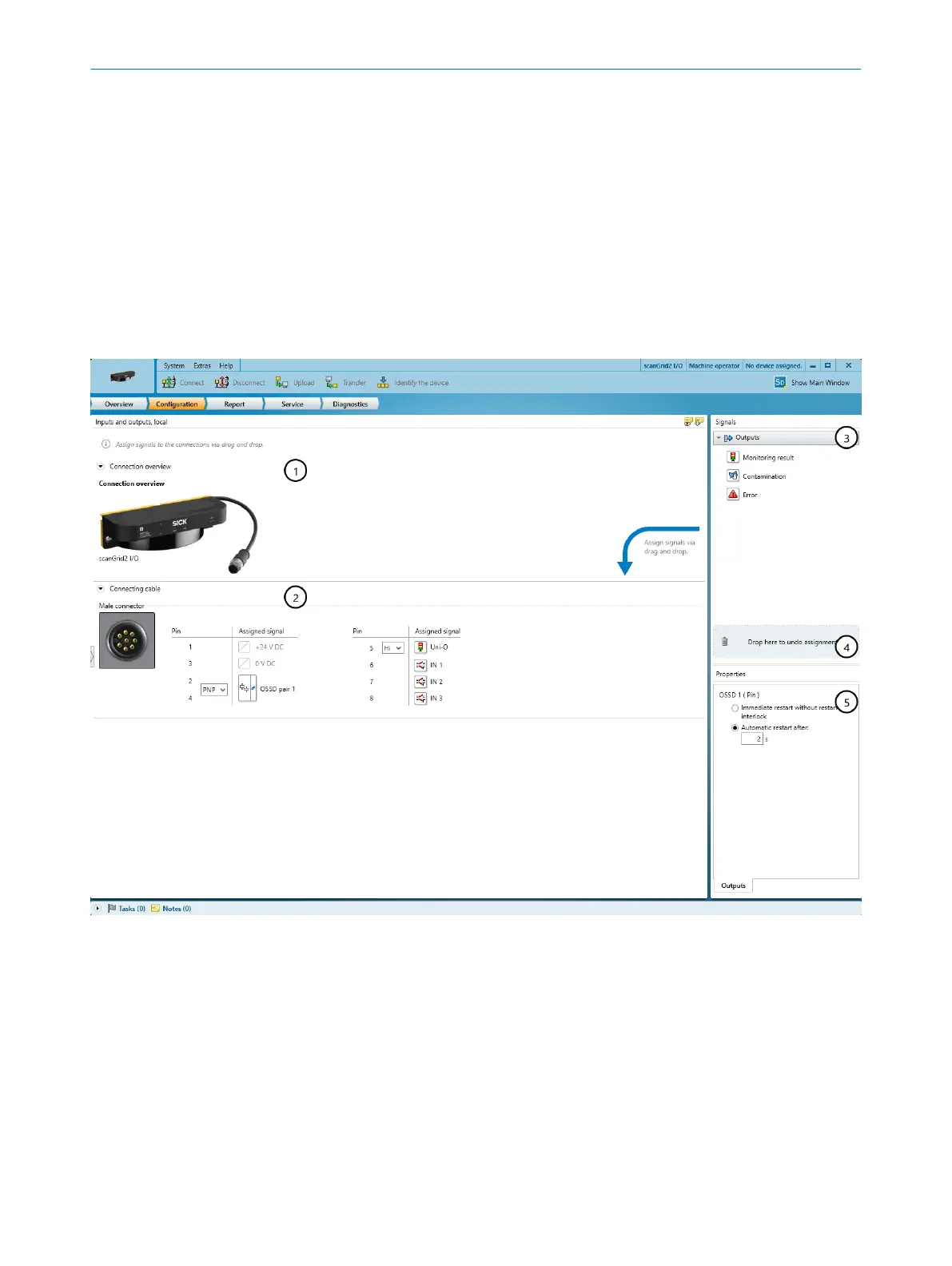

Figure 25: Inputs and outputs, local
1
Connection overview: System connection of the safe multibeam scanner
2
Connecting cable with pin assignment
3
Available signals
4
Remove signal from connection
5
Further settings for some signals
Connection overview
T
he Safety Designer displays the safe multibeam scanner and the system connection.
Connecting cable
T
he Safety Designer displays the system connection and its individual pins.
CONFIGURATION 7
8025936/2021-01-08 | SICK O P E R A T I N G I N S T R U C T I O N S | scanGrid2 I/O
53
Subject to change without notice
