INSTALLATION 3
Voltage supply
● The supply voltage is 11 … 36 V DC.
● The TRANSIC111LP does not operate with AC voltage.
1-047Ab

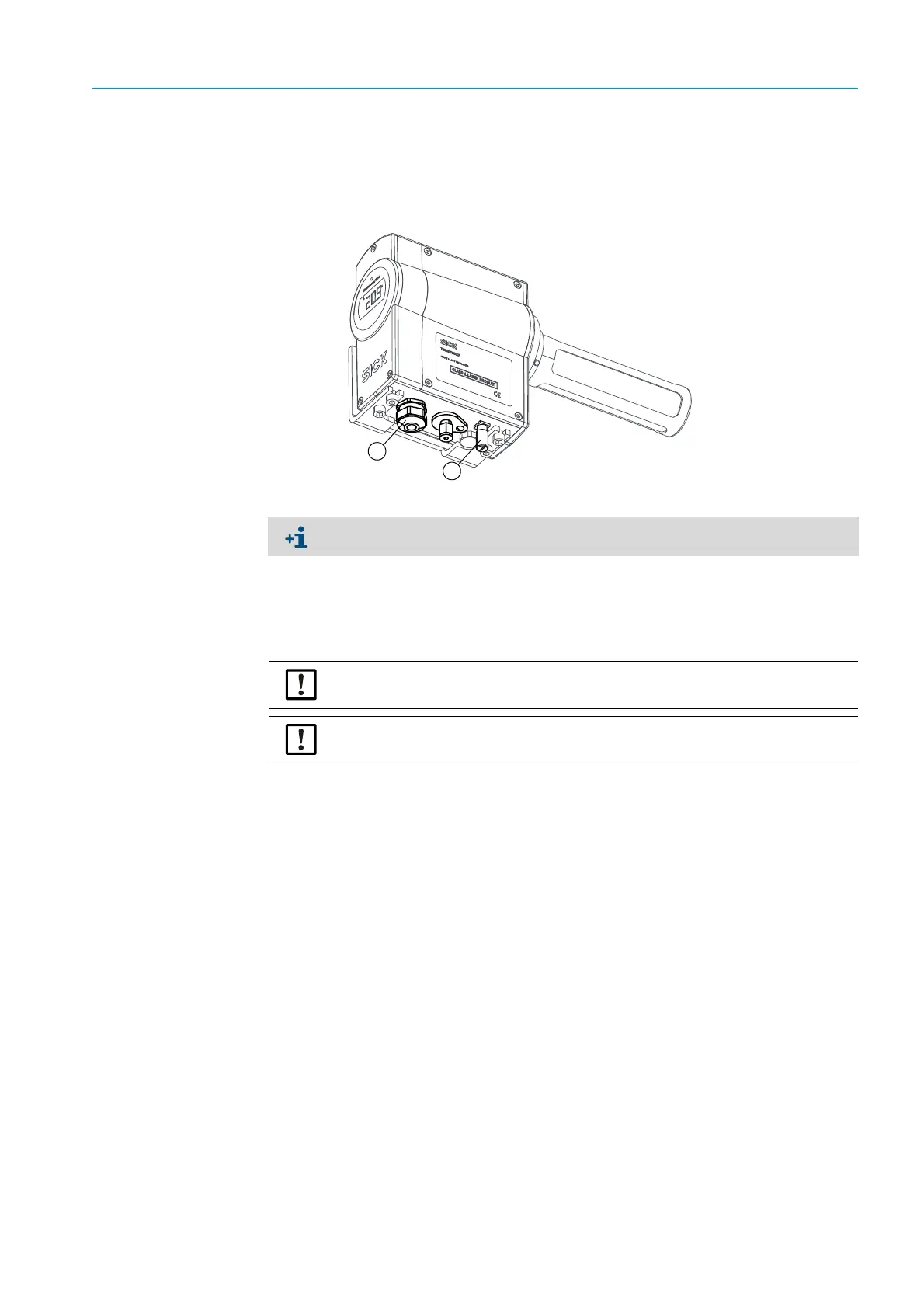

Fig. 11: Electrical connections
Grounding the transmitter
▸ Use suitable leads.
▸ Make sure the device is connected to the local ground.
▸ Lay the grounding as functional grounding.
1
1Cable duct
2 Ground terminal
2
Observe the cable specifications in the Technical Data, see “Technical data”, page 96.
NOTICE: No potential differences may occur.
NOTICE: Check the grounding regularly.
