Siemens Add 7 AddFEM User Manual

AddFEM
Commissioning / Operation / Maintenance
5-19
AddFEM
C79000–G8076–C900–03
RUN P
MRES
RUN
STOP

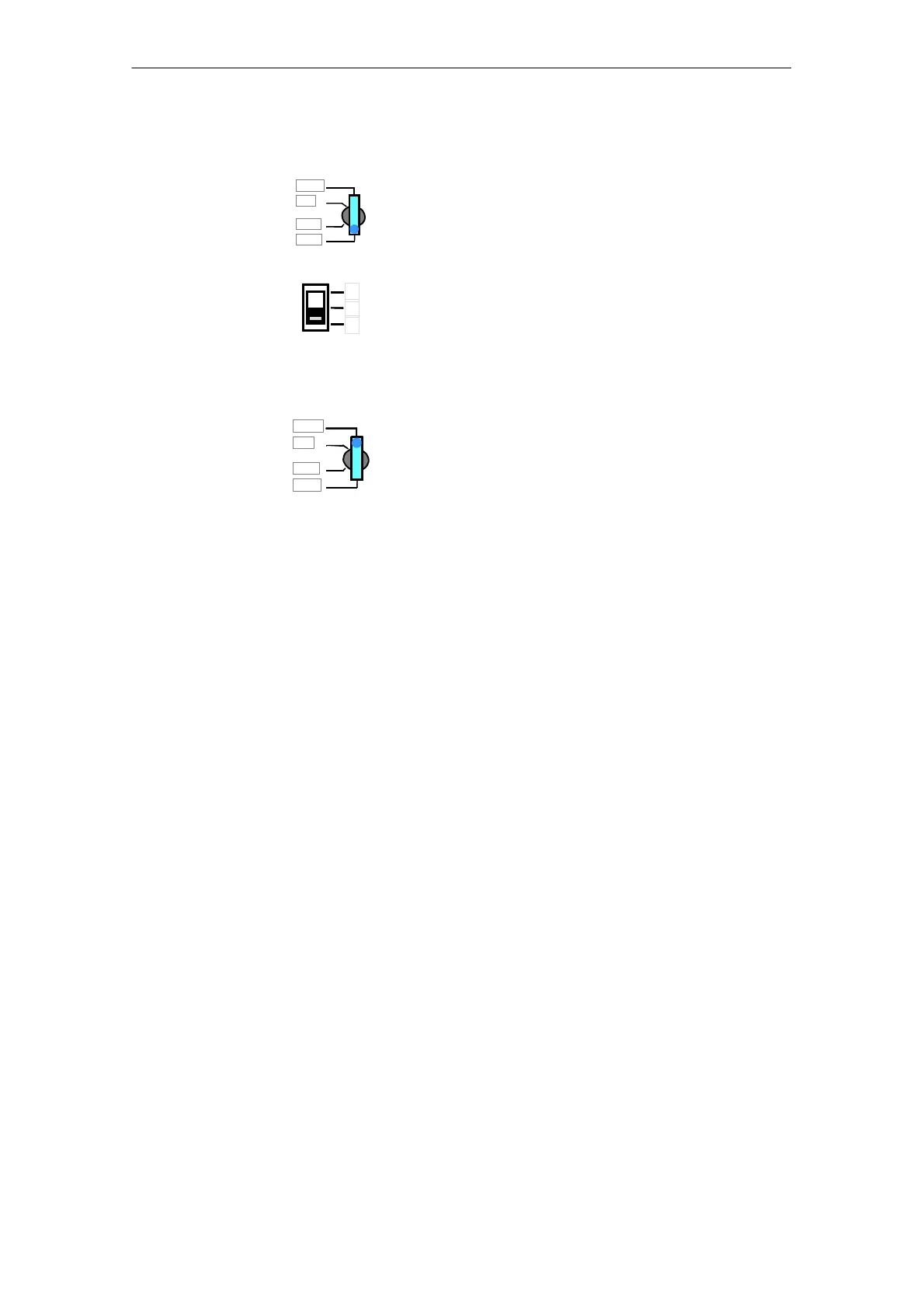

Momentary–contact position of the key–operated switch.
Is used during the setting procedure for the bus addresses.
2
1
0
Position 0 – Momentary–contact position spring–loaded:
The PROFIBUS DP station addresses are displayed via the DI
signal LEDs in hexadecimal forms. The least significant bit is at the
top! The display is activated for approx. 5 seconds.
Position 1 – Latched position: Position of rest
Position 2 – Latched position: No function
RUN P
MRES
RUN
STOP
Note:
Reserved for function extensions.
The key cannot be withdrawn in this position.
