Siemens Add 7 AddFEM - Figure 5-12 Configuring the Filtering of the Analog Inputs

AddFEM
Commissioning / Operation / Maintenance
5-31
AddFEM
C79000–G8076–C900–03
Configuring the Filtering of the Analog Inputs:

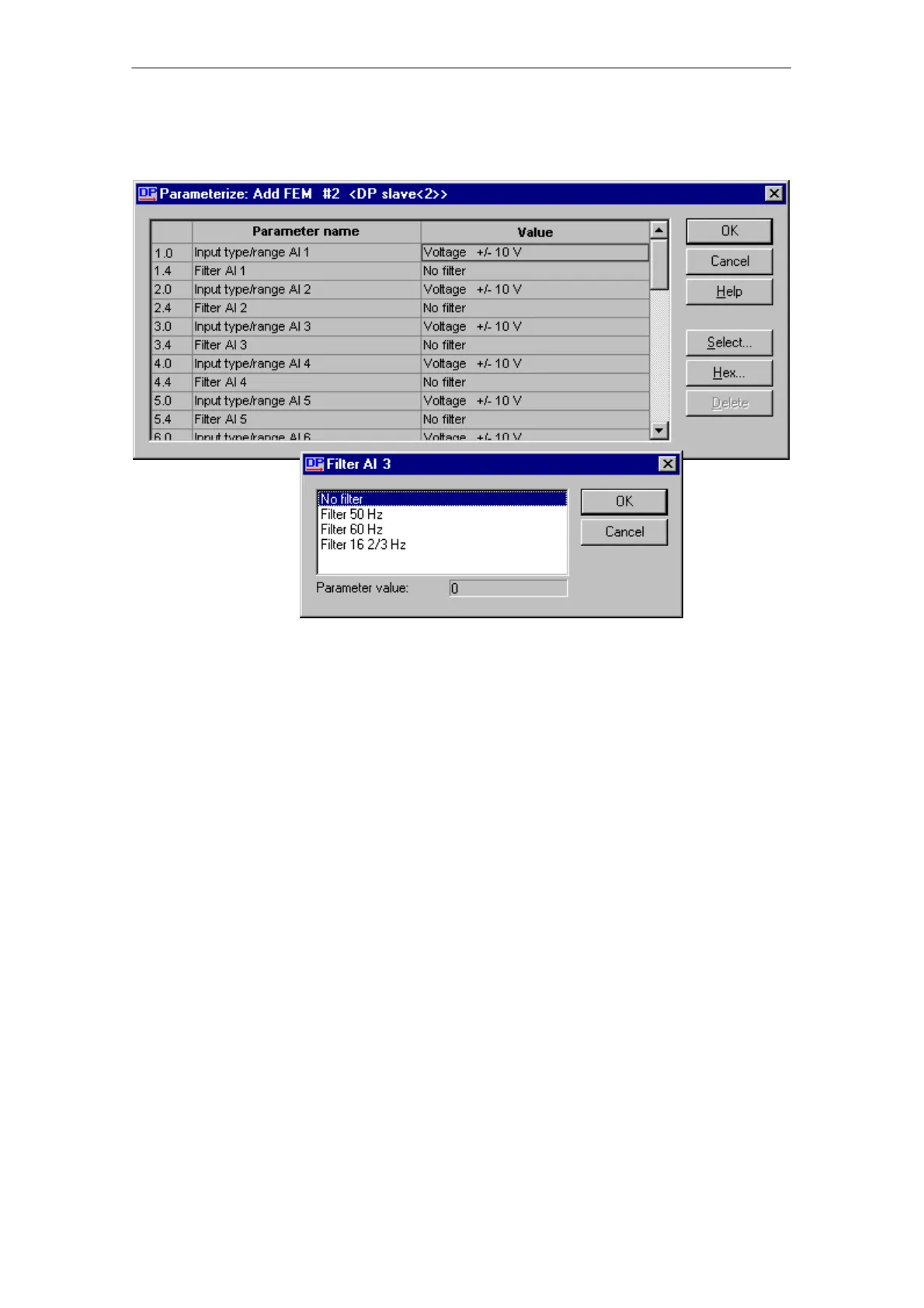

Figure 5-12 Configuring the filtering of the analog inputs
A filter can be configured for each analog input. Filtering results in a suppression of
the respective mains frequency.
