AddFEM
Commissioning / Operation / Maintenance
5-3
AddFEM
C79000–G8076–C900–03
Fastening of the AddFEM to the DIN rail:
– Slide the upper fixing bracket from above over the upper DIN rail and “hang
in” the module.
– Press the lower attachment lightly against the lower DIN rail.
– There is a slot in the lower fastening element at the level of the housing
base. Insert a flat–blade screwdriver at an angle from below into this slot
(refer to dimensioned drawing for DIN rail mounting) and move it towards the
housing bottom. This action pulls the lower fastening bow against the spring
pressure downwards and the AddFEM can then be fastened onto the lower
DIN rail.
– Remove the screwdriver. The AddFEM is now anchored firmly.
strategy to disbolt
the lower fastening

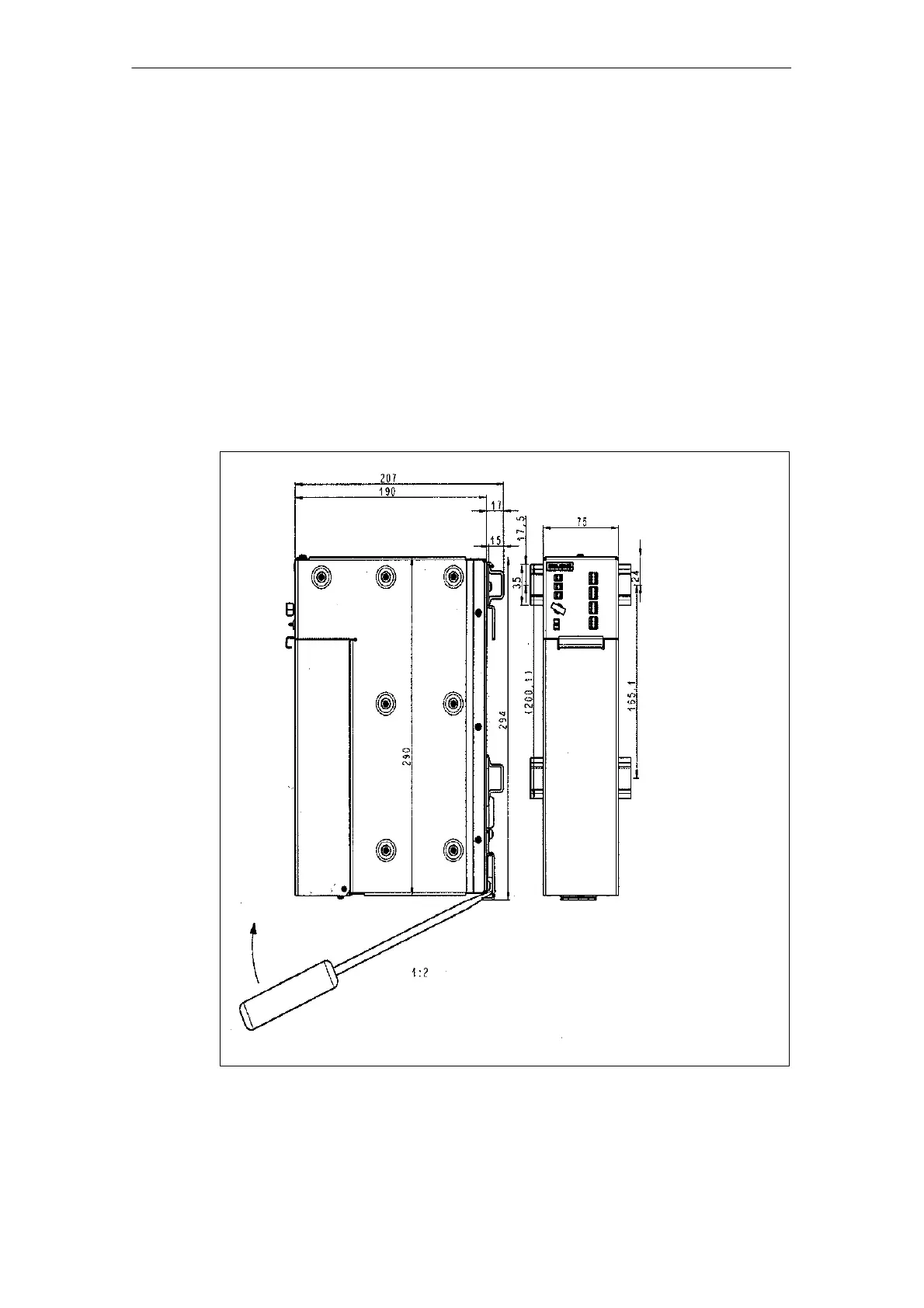

Figure 5-1 Dimensioned drawing for DIN rail mounting
