Commissioning / Operation / Maintenance AddFEM
5-4
AddFEM
C79000–G8076–C900–03
Screw Mounting
For direct mounting with screws the fastening elements on the module rear have to
be removed, turned around and attached again. 4 screws M5 are used as faste-
ning elements. The hole distances are indicated in the dimensioned drawing for
screw mounting.

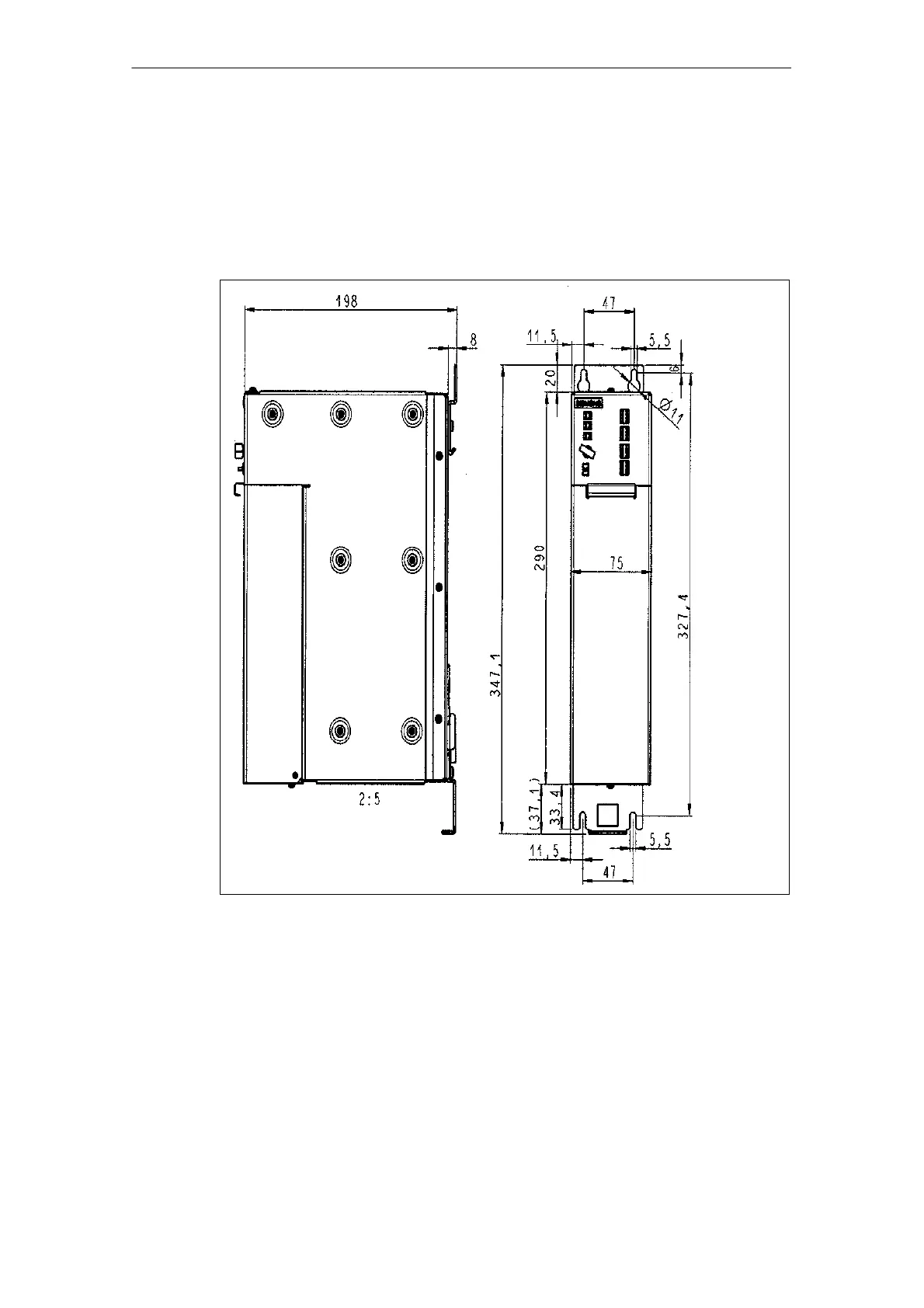

Figure 5-2 Dimensioned drawing for screw mounting
