Siemens Add 7 AddFEM - Figure 5-9 Configuring the Analog Inputs

Commissioning / Operation / Maintenance AddFEM
5-28
AddFEM
C79000–G8076–C900–03
Configuring the Analog Inputs:
OR

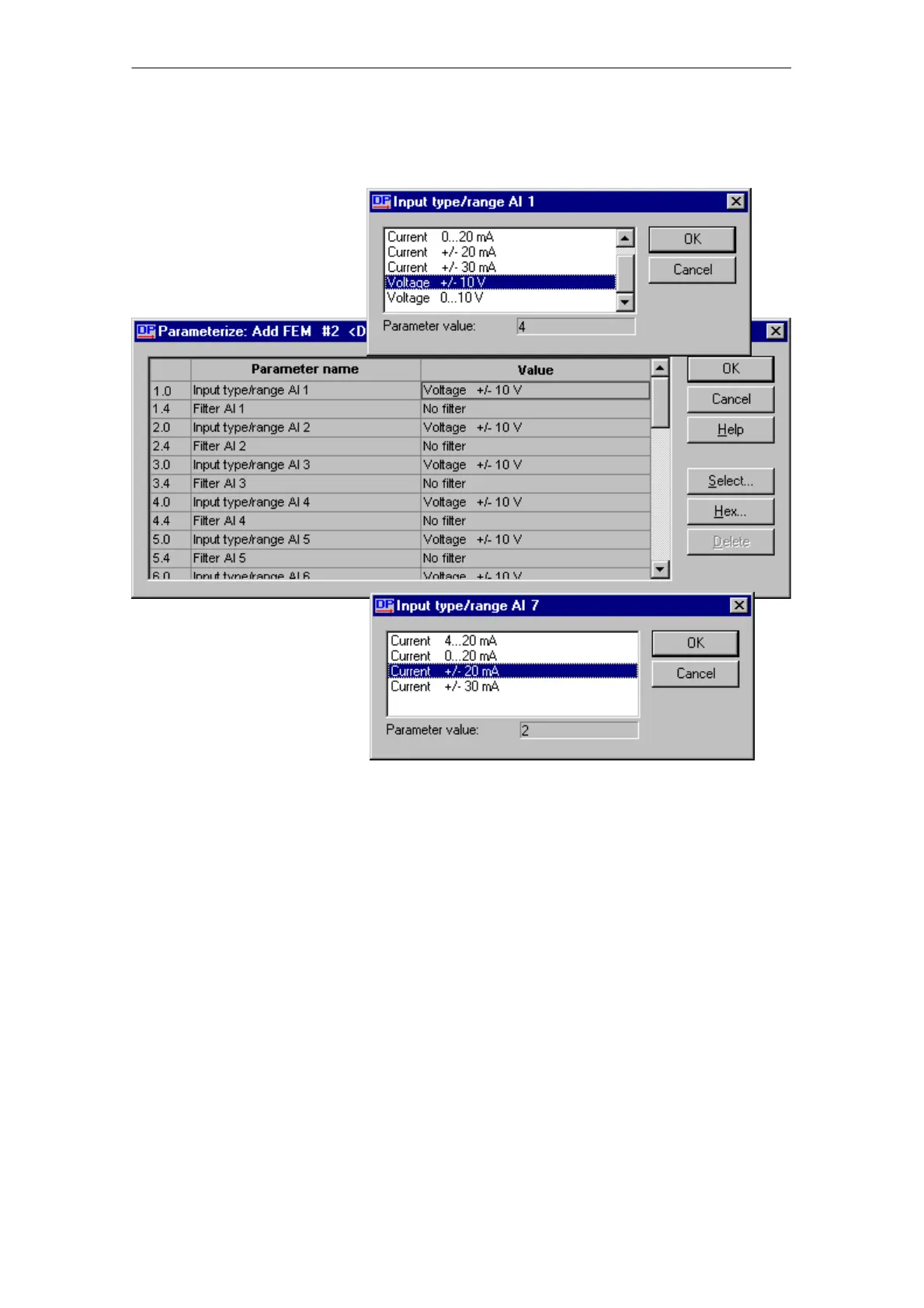

Figure 5-9 Configuring the analog inputs
The analog inputs 1 to 12 can be set selectively by the channels. The analog in-
puts 1 –6 can be configured as voltage or current inputs. The analog inputs 7 – 12
are pure current inputs.
