Siemens Add 7 AddFEM - Figure 5-18 Configuration at Single-Channel Use

Commissioning / Operation / Maintenance AddFEM
5-40
AddFEM
C79000–G8076–C900–03
5.5.3.1.1 Operating Mode 0 – Single Operation
At Operating Mode 0 the AddFEM is only connected with one channel to the
PROFIBUS DP.

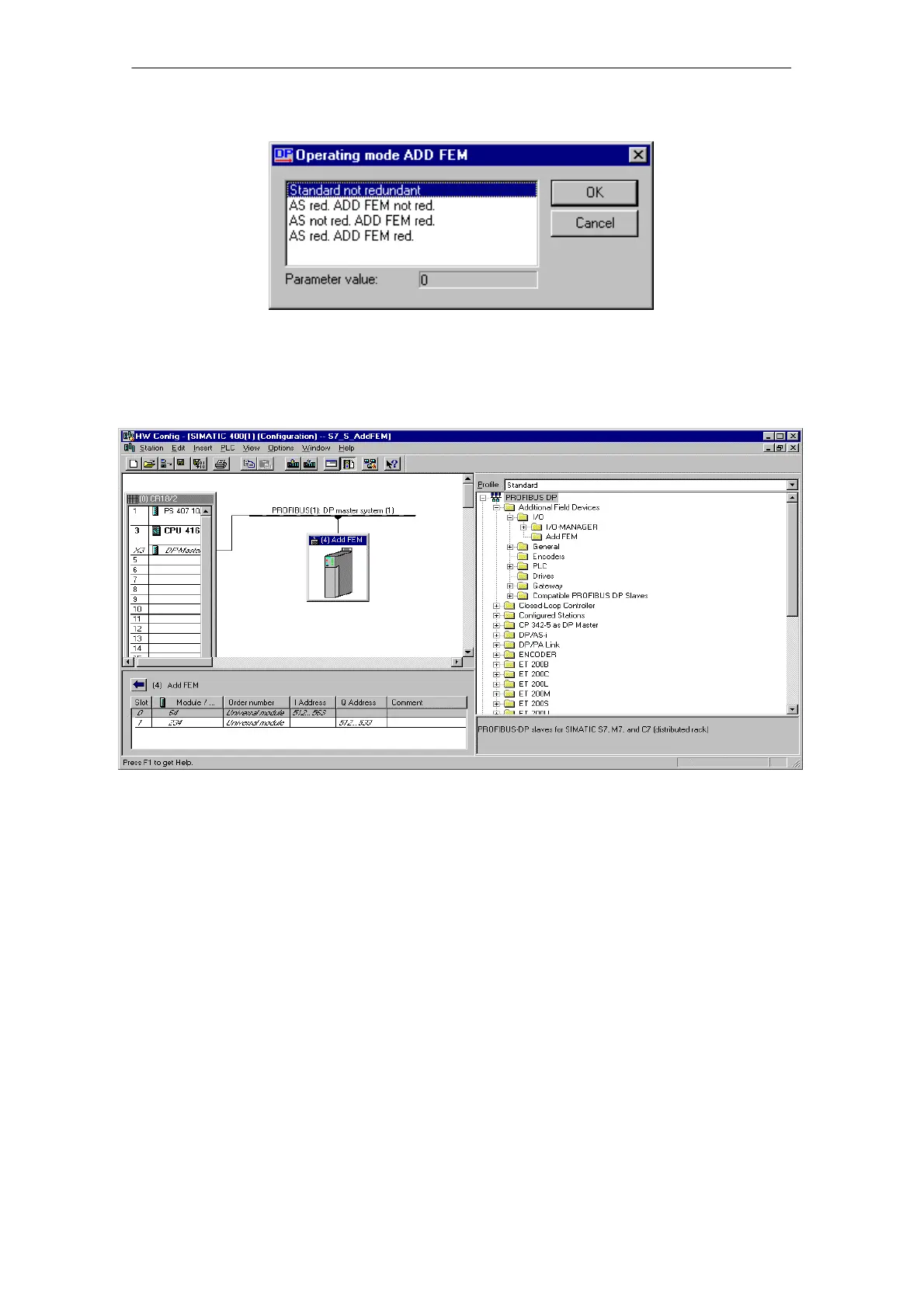

Figure 5-18 Configuration at single–channel use
