AddFEM
Commissioning / Operation / Maintenance
5-13
AddFEM
C79000–G8076–C900–03

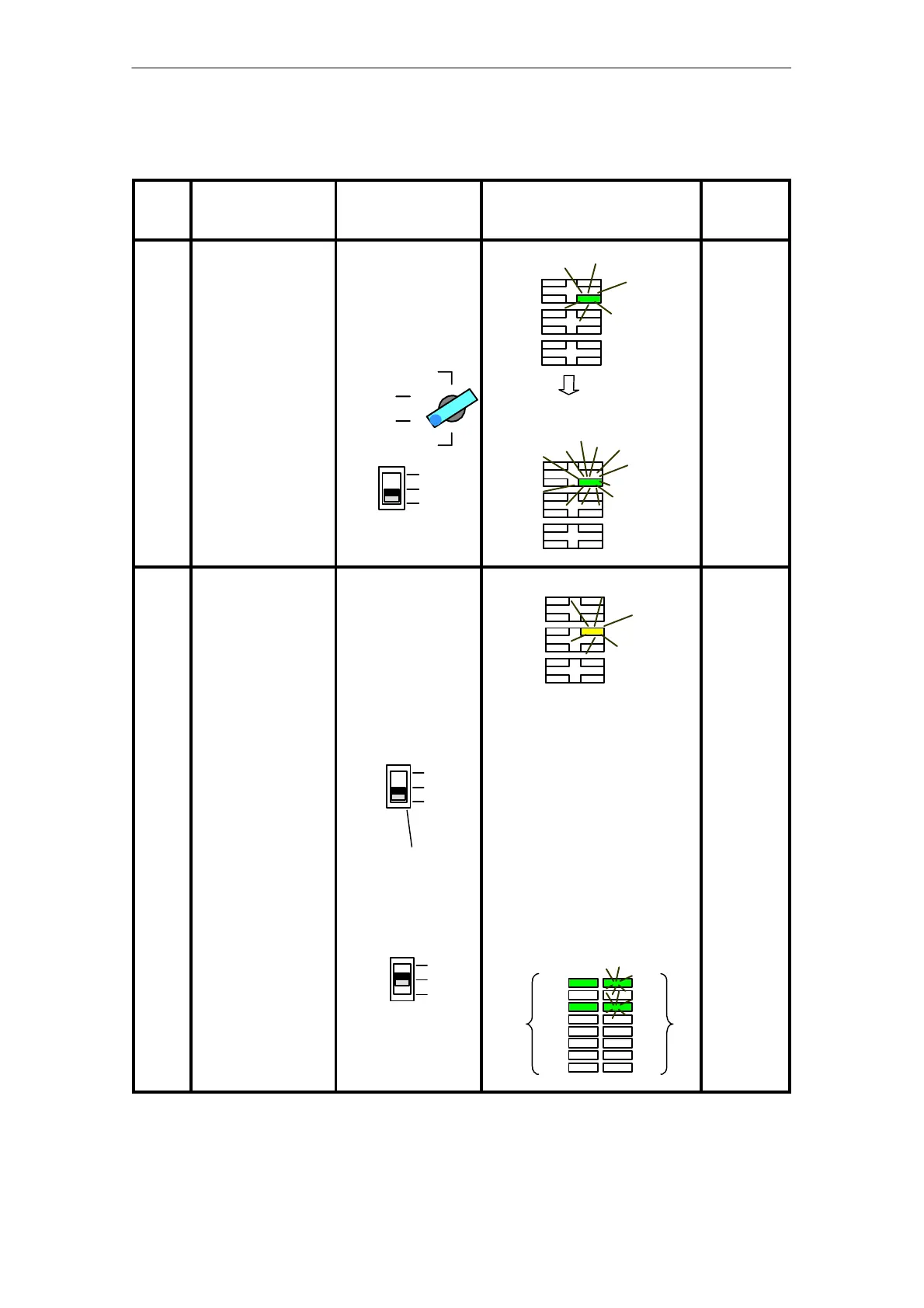

Table 5-2 Setting the PROFIBUS–DP Address for Bus B via Key–operated and Slide Switches
Seq.
No.
Operation Handling
(key–operated and
slide switches)
Display/Reaction Next step,
if ...
1 Preparation of
AddFEM for adjust-
ment procedures.
Turn key–opera-
ted switch to the
”STOP” position
and press slide
switch to spring
position 0.
2
1
0
MRES
RUN
STOP
RUN P
Status–LED ”USR1” flashes.
Status–LED ”USR1” flickers.
USR1
USR1
...wait until
status LED
”USR1”
flickers!
Then pro-
ceed with
Step 2.
2 Function mode 2,
set ”DP address B”.
Release the slide
switch.
The slide switch
springs back to Posi-
tion 1.
Function Mode 2 is
set by pressing the
slide switch once
more to the spring
position 0 !
Release the slide
switch!
Move once more
to Position 0!
2
1
0
2
1
0
Status LED ”SSA” flashes.
The currently set addresses for
DP A (left LEDs 1 to 8 static) and
DP B (right LEDs 9 to 16 flas-
hing) are indicated at the 16 si-
gnal LEDs in binary form.
LED 9 has the value 2
0
.
LED 10 has the value 2
1
.
etc.
The address 5 is set respectively
for DP A and DP B in the follo-
wing example:
SSA
1
8
9
16
Adr. DP BAdr. DP A
Continue
with Step 3
...
