Siemens Add 7 AddFEM - Table 5-3 Checking the Setting of the PROFIBUS-DP Address

AddFEM
Commissioning / Operation / Maintenance
5-15
AddFEM
C79000–G8076–C900–03
Seq.
No.
Next step,
if ...
Display/ReactionHandling
(key–operated and
slide switches)
Operation
6 Set the regular
”RUN” mode again.
Turn the key–opera-
ted switch to ”RUN”
or ”RUN P”.
RUN P
MRES
RUN
STOP
Setting has
been com-
pleted.

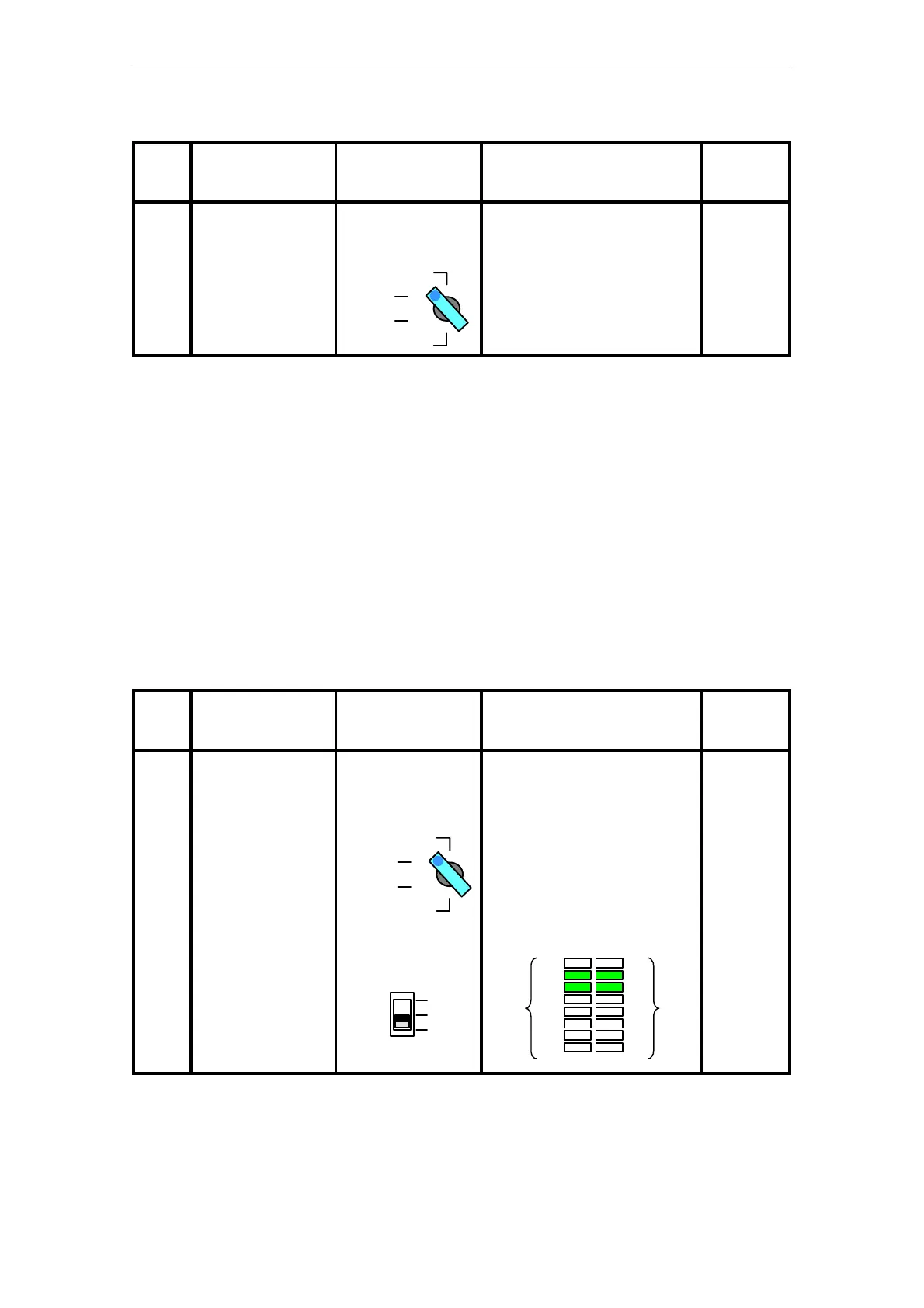

5.2.3 Checking the Setting of the PROFIBUS–DP Address
The set PROFIBUS DP addresses can be displayed during operation in order to
check them. To this purpose the following settings must be carried out at the
AddFEM.
Table 5-3 Checking the Setting of the PROFIBUS–DP Address
Seq.
No.
Operation Handling
(key–operated and
slide switches)
Display/Reaction Next step,
if ...
1 Display DP addres-
ses.
The key–operated
switch is in the Posi-
tion ”RUN”, ”RUN P”
or “STOP”.
Push the slide switch
to the Position 0 and
release it.
RUN P
MRES
RUN
STOP
2
1
0
The 16 signal LEDs display the
desired address statically for ap-
prox. 3 seconds .
LED 1 or 9 has the value 2
0
.
LED 2 or 10 has the value 2
1
etc..
The address 6 is set for DP A
and DP B in the following exam-
ple:
1
8
9
16
Adr. DP BAdr. DP A
Setting has
been com-
pleted.
