Siemens Add 7 AddFEM - Figure 5-11 Configuring Counter 1

Commissioning / Operation / Maintenance AddFEM
5-30
AddFEM
C79000–G8076–C900–03
Configuring Counter 1:

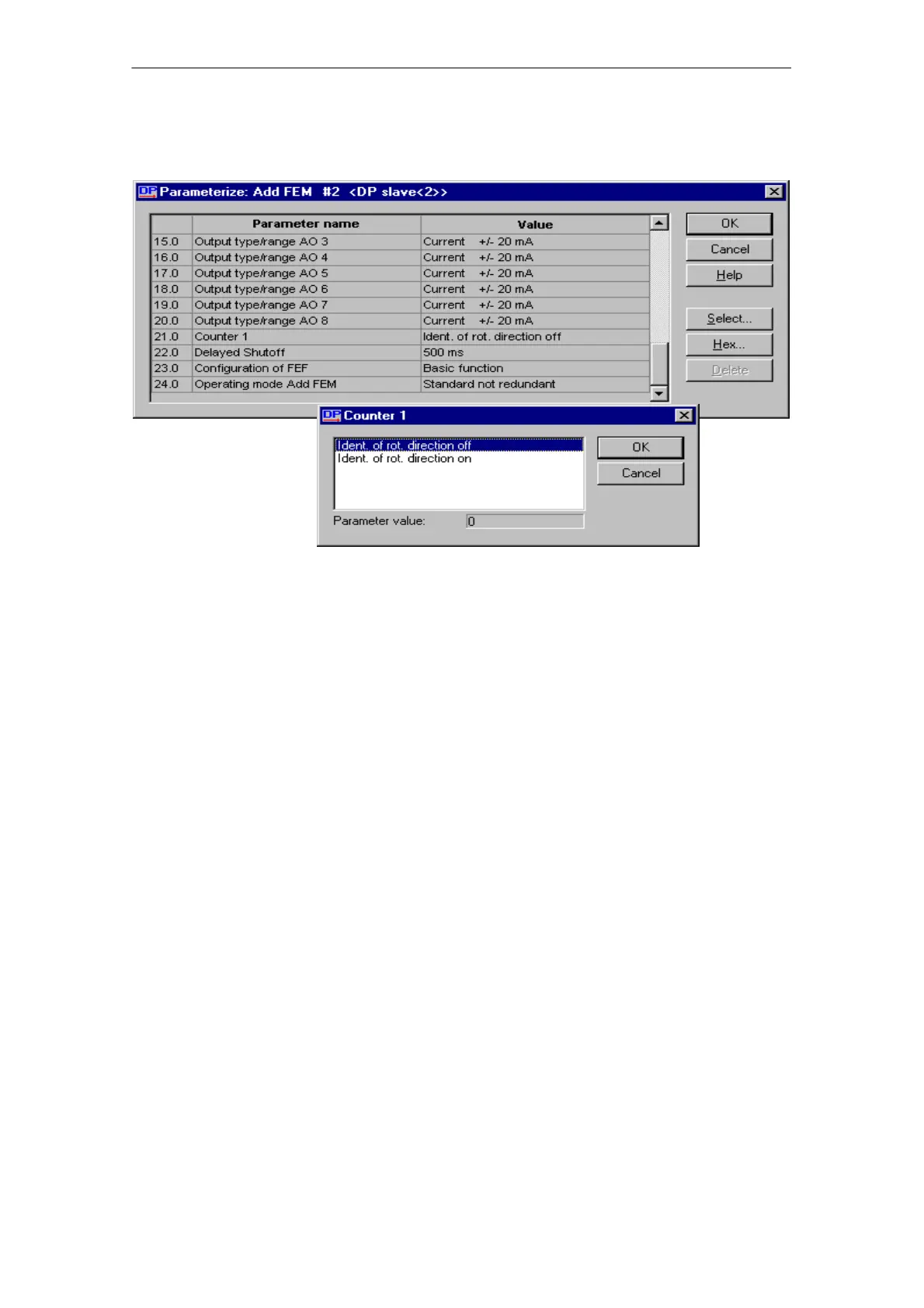

Figure 5-11 Configuring Counter 1
Counter 1 can be configured with or without a sense of rotation recognition func-
tion. For ”Sense of rotation recognition on” the leading or lagging signal must be
assigned to the counting pulse inputs 1 and 2.
