Siemens Add 7 AddFEM - Figure 5-10 Configuring the Analog Outputs

AddFEM
Commissioning / Operation / Maintenance
5-29
AddFEM
C79000–G8076–C900–03
Configuring the Analog Outputs:
OR

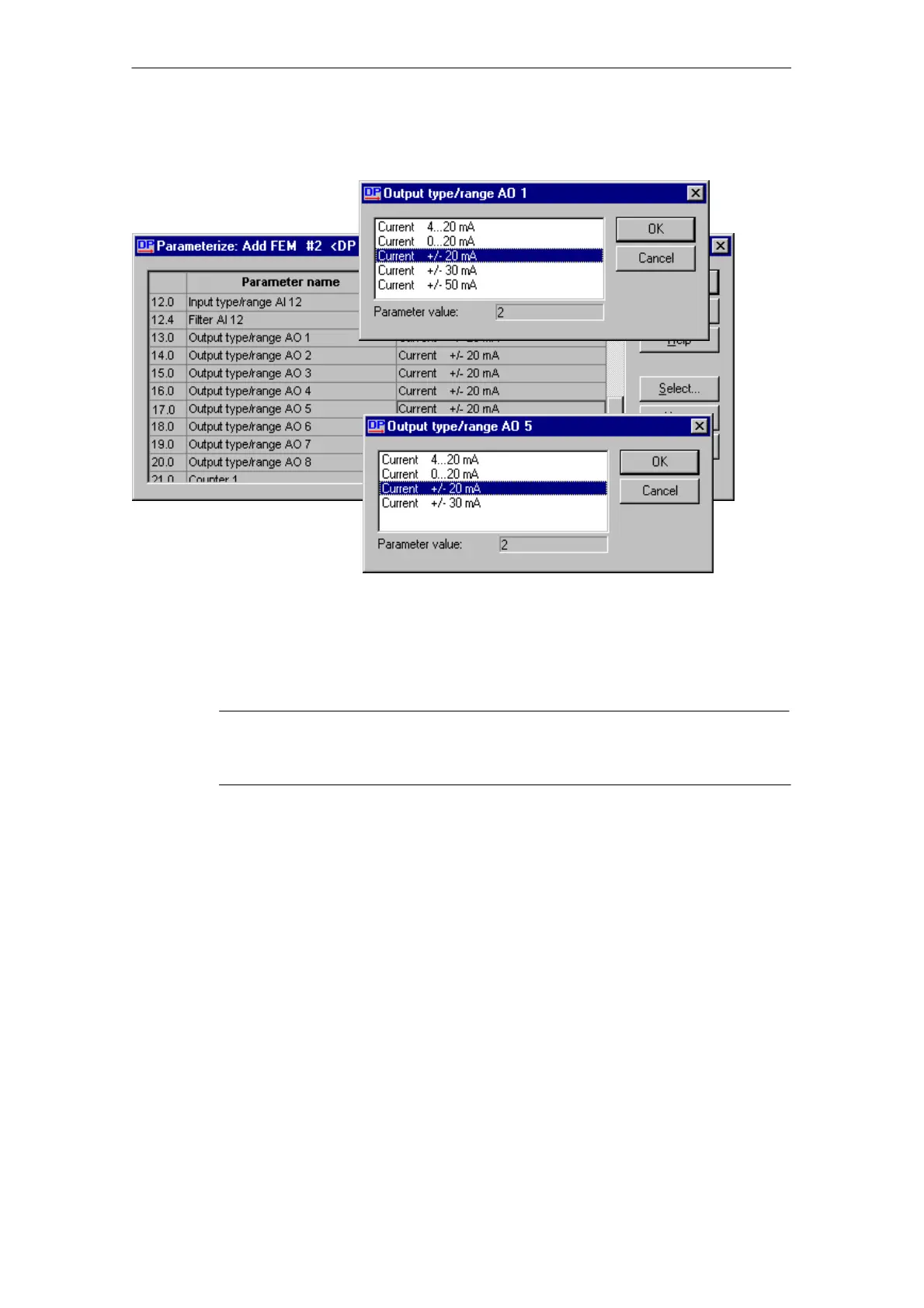

Figure 5-10 Configuring the analog outputs
The analog outputs 1 to 8 can be set selectively by the channels. They are all im-
plemented as current outputs which can be configured in the range of $30 mA.
Note
The analog outputs 1 – 4 can also be configured to "50 mA for short–term loads.
The analog inputs 5 – 8 can be configured with the maximum value of $30 mA.
