5.5.3 Configuration of the AddFEM Driver Block with Continuous
Function Chart (CFC)
Within the CFC in the SIMATIC–Manager the four AddFEM driver blocks, FEM AI,
FEM AO, FEM DI and FEM DO, are placed in the corresponding function chart
and connected to each other by means of the block connectors BLOCKCON,
BLOCKNI and BLOCKCNO. In addition the further inputs and outputs of the driver
function blocks are to be connected to the application function blocks.

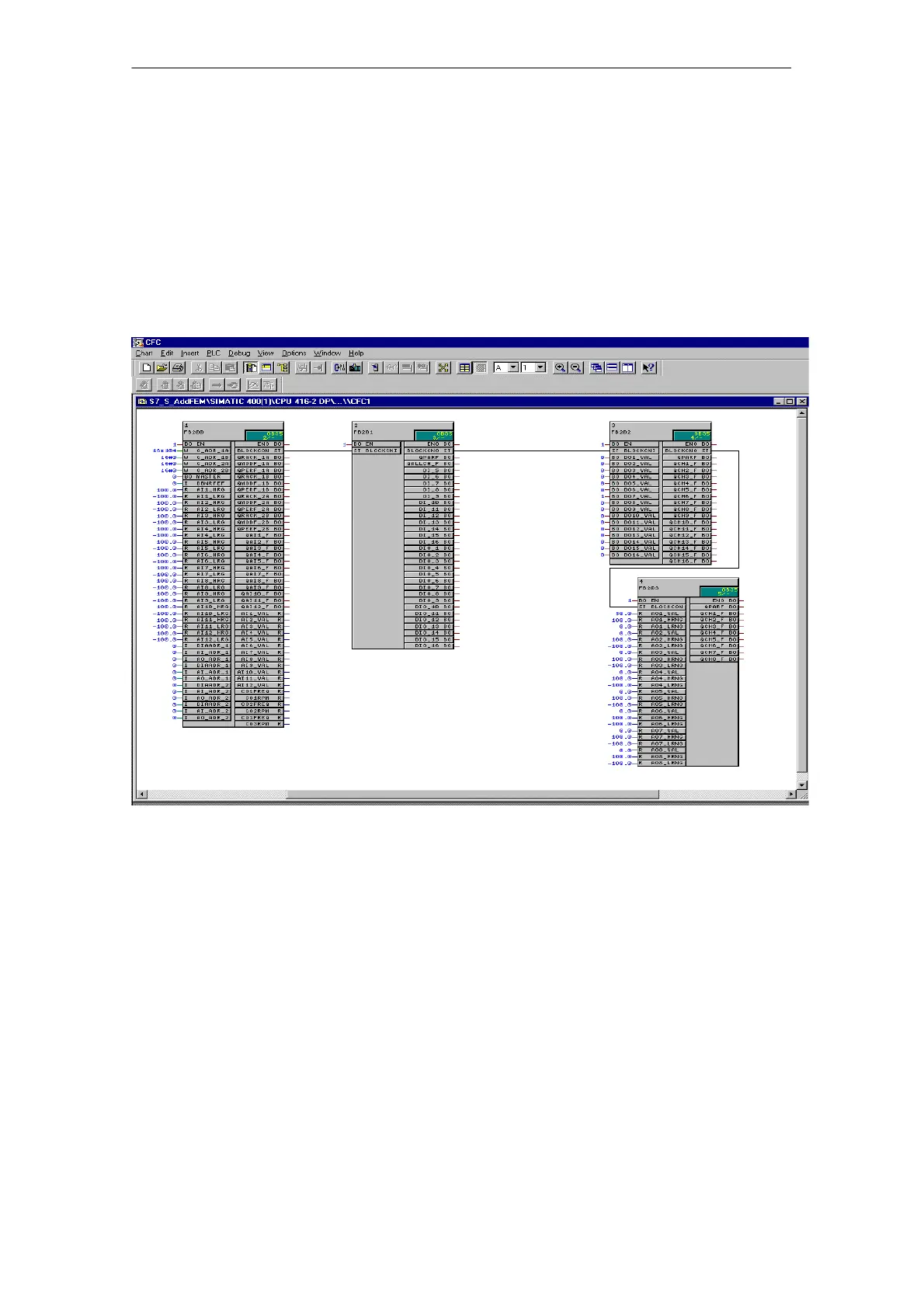

Figure 5-17 Representation of AddFEM driver blocks in CFC
