Communications configuring
3-118 System- and communication configuring D7-SYS - SIMADYN D
Edition 12.2003
All of the actions executed under this menu item refer to the SS5
communications module, which is addressed by the path, set under Init
path definitions.
1. First select CP Stop under the Load menu item, and then CP
database transfer with menu sub-item FD > CP. Database loading is
displayed.
2. Select CP Start: The database is transferred into the EEPROM and
then communication module SS5 is re-started (warm start). This can
take up to 2 minutes. This procedure can be identified as the two
LEDs on the SS5 communications module briefly go dark and then
light up again.
− If the loaded database is inconsistent, the green diode flashes. In
this case, the SS5 communications module must be reset
(SIMADYN D subrack reset). The SS5 communications module
then runs-up without database.
− Uploading the database
(CP database transfer - CP - > FD) is not possible!
3.7.7 Examples
Only the relevant information for the examples is provided. At the function
blocks, only inputs AT/AR are specified and possibly length information.
All of the examples require that a CS7 module has been configured with
an SS5 communications module as well as the @CSL2F central block.
3.7.7.1 Example 1: Process data between two SIMADYN D stations
• SIMADYN D notation: Station 1 transmits data to station 2.
• FMS notation: Station 1 writes into an object in station 2.
KB KB
3
4
5
..
3
4
5
..
'Send.0202.6001'
CTV
-
A
T
CRV
-
A
R
'6001'
SS5 SS5
Node1: Node2:
CPU CPU
PROFIBUS

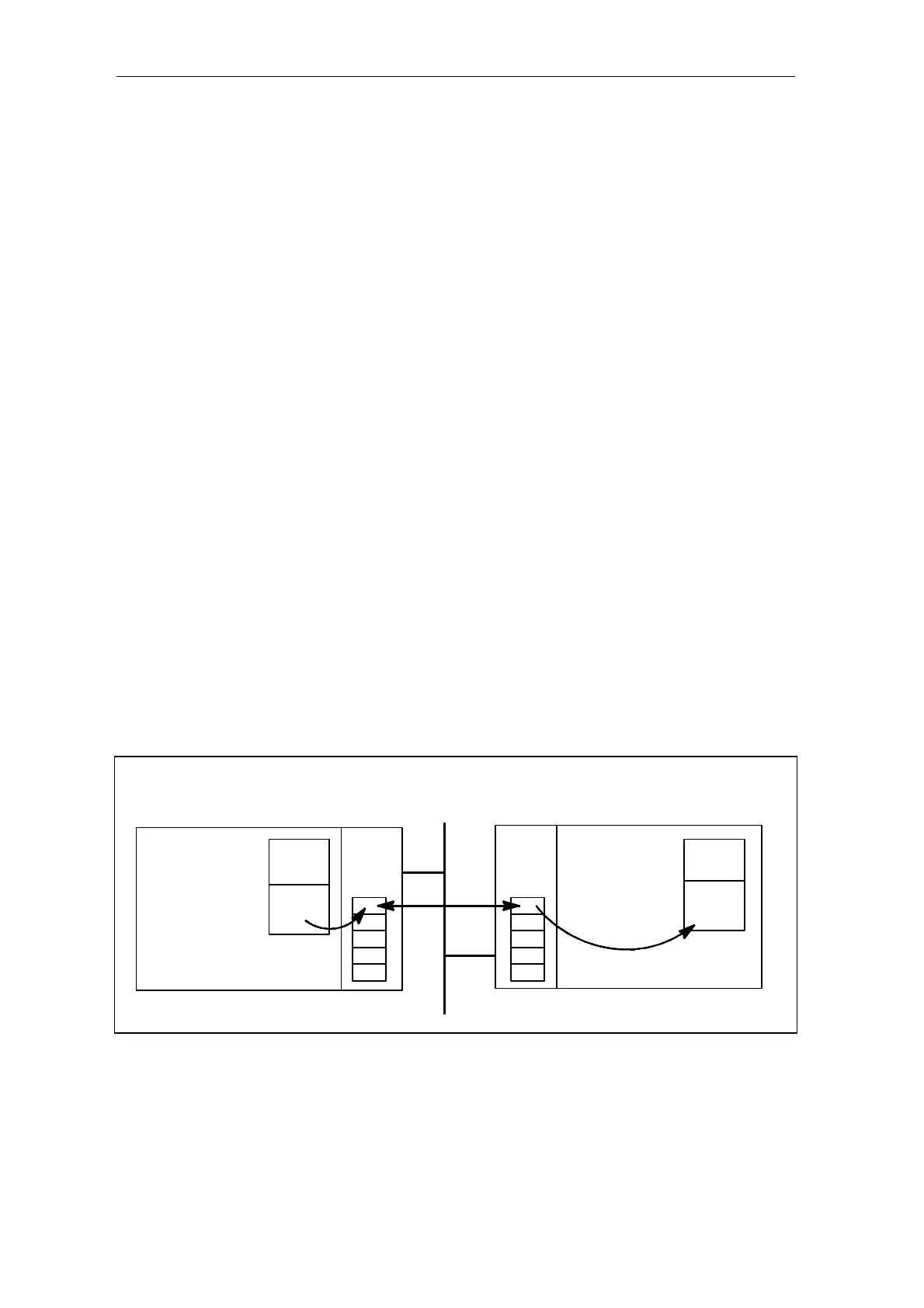

Fig. 3-39 Example 1
