• Highest MPI address of the SS52 = 126 (126 is entered as standard in
ProTool/Lite)
The following hardware configuration can be seen after work has been
completed in HWConfig:

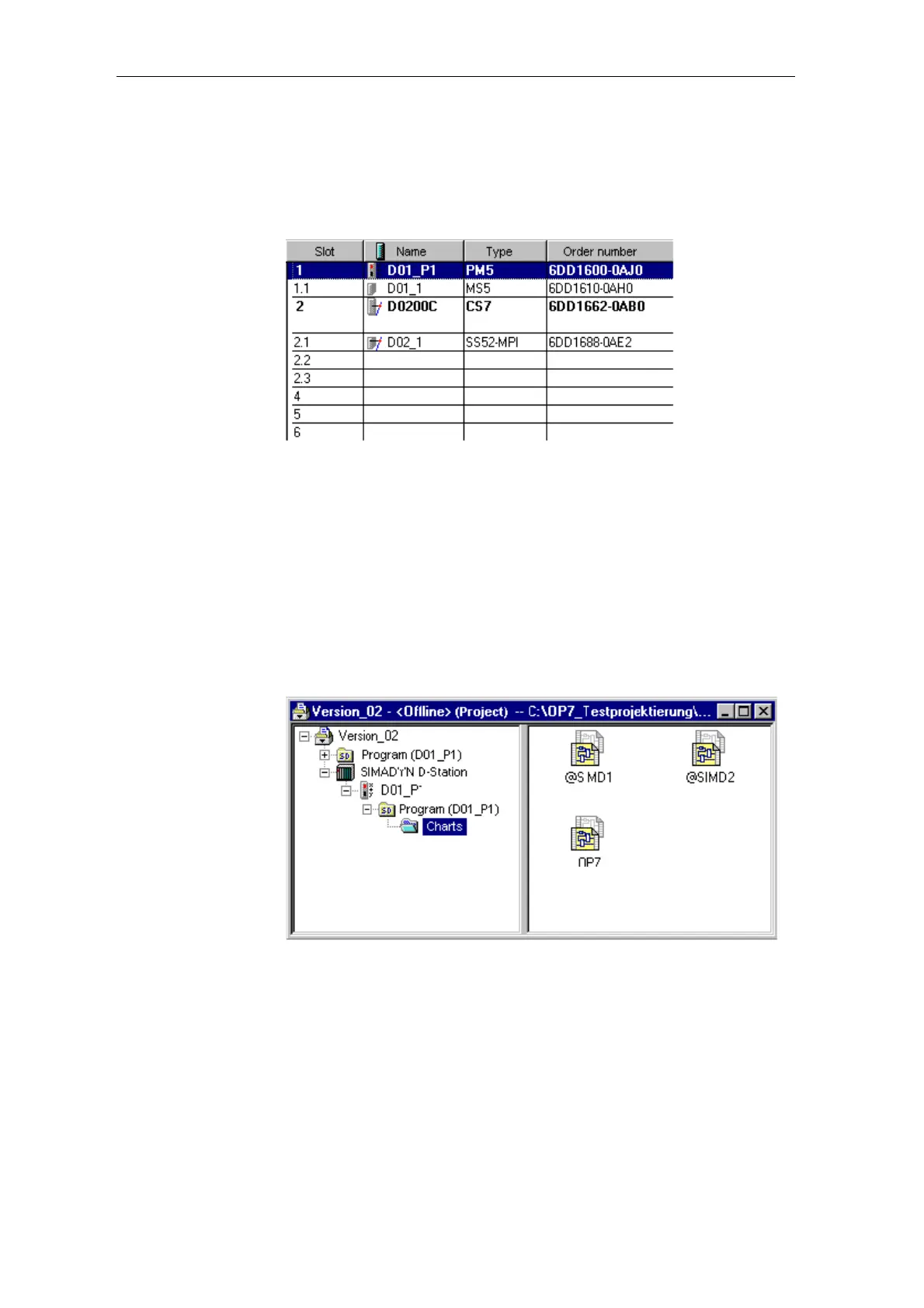

Fig. 3-117 Screenshot of the completed HWConfig menu
3.27.2.2 Configuring with CFC
After executing "Save and compile" in the "HWConfig", the "D01_P1"
symbol was inserted in the SIMATIC Manager below the "SIMADYN D
station".
A new chart, called "OP7" is added, in the associated chart container, to
the existing charts "@SIMD1" and "@SIMD2". All of the additional
configuring work will now be made in a new chart called "OP7".
Fig. 3-118 Screenshot of the completed chart container
• All of the function blocks to be configured are configured in the
sequence level T4.
• If not explicitly listed, the standard assignments of the function block
connections are kept.
Inserting a new
chart
Agreements
