Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-299
Edition 12.2003

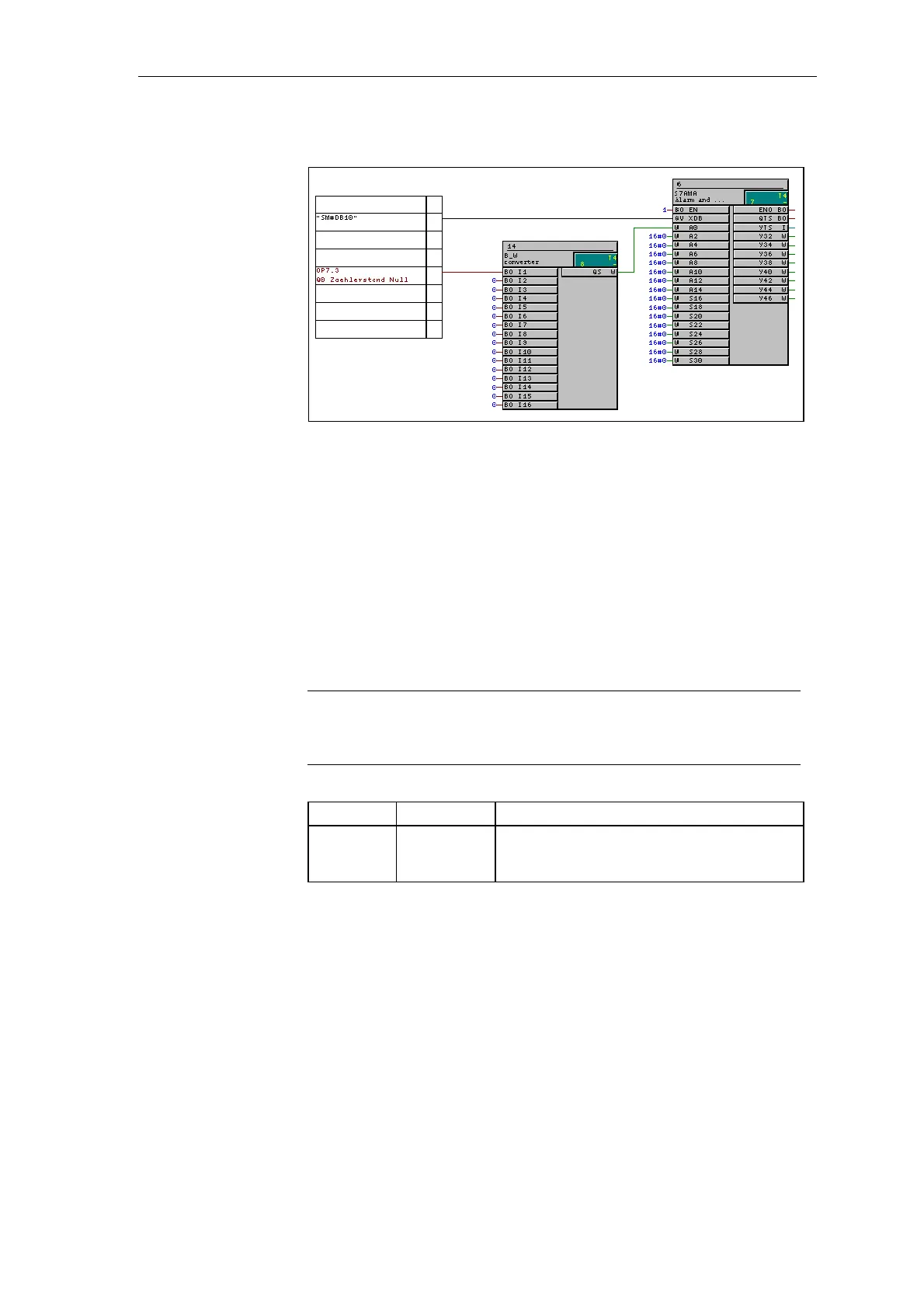

Fig. 3-123 Configuring alarm messages
3.27.2.2.6 Configuring the function keyboard
The configuring of the function keyboard includes, on the SIMADYN D
side, only the
S7FKA function block. The actual assignment of the key
functions is realized under ProTool/Lite.
S7FKA is assigned, via a global operand (OP connection) a virtual data
block No. for the user data area "function keyboard image".
NOTE
The data block No., assigned under SIMADYN D, for the OP
connection, must also be assigned the configured area pointer for the
function keyboard under ProTool/Lite.
FB Connection Connection assignment (significance)
S7FKA XDB Symbol name: FK_Tast
Data block No.: DB20
(global operand, OP connection)
Table 3-100 Connection assignment, S7FKA
CFC chart
Brief description
Configured
software
