Communications configuring
3-272 System- and communication configuring D7-SYS - SIMADYN D
Edition 12.2003
Receiving and transmitting with virtual connections.
"!SEND.0001"
Righthand marginLefthand margin
"!SEND"
Connection data,
transmit
Virtual
connections
CRT
QTS
YTS
YEV
CTV
-
-
-
-
-
-
CTS
A
T
MOD
EN
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
ANY_FB
-
-
-
-
X1
X2
X3
X4
X5
X6
X7
X8
"!REC"
Connection data,
receive
CRR
QTS
YTS
YEV
CRV
-
-
-
-
-
-
CTS
A
R
MOD
EN
"!SEND.0004"
"!REC.0017"
Virtual
connections
"!REC.0003"
"!REC.0555"
"!REC.0555"
"CS7.X01"
Module name
"CS7.X01"
Module name
-
-
-
-
-
"!SEND2.0004"
GV
BO
I
W
GV
BO
I
W
GV
S
BO
BO
GV
S
BO
BO
R
R
R
R
R
I
I
I
R
R
R
R
R
I
I
I
"!SEND.0007"
-
-
-
-
-
-
-
-
--

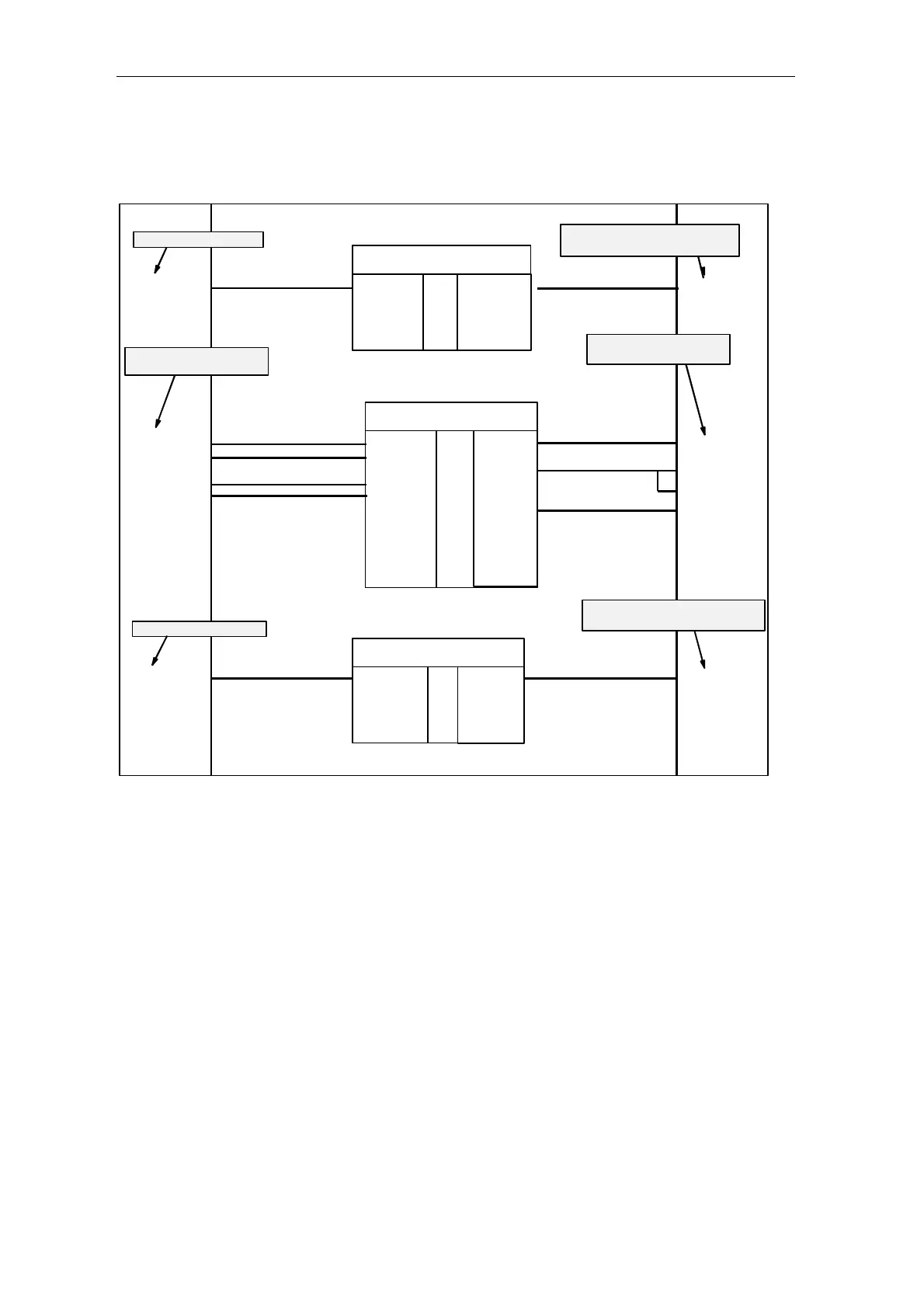

Fig. 3-107 Configuring: Receiving and transmitting with virtual connections
Configuring rules with reference to the example:
• The virtual connections, which belong to a virtual connection name,
can be configured at block I/O with different data types (ANY_FB.Y1
"REAL" and ANY_FB.Y6 "INTEGER") and in any sequence.
• Virtual connections (receive) at block inputs can be configured a
multiple number of times if the inputs have the same data type. These
inputs are supplied with identical data. (ANY_FB.X4 and X5)
• The same virtual connection (transmit) with identical connection name
and sequence number may not be configured a multiple number of
times at block outputs.
• Several different virtual connections (transmit) can be configured at a
block output (ANY_FB.Y3). The connections can differ, both in the
connection name as well as in the sequence number.
Configuring
example
