Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-123
Edition 12.2003
KB KB
2
3
4
5
2
3
4
5
...
'S2.0202.6001'
CTV
-
A
T
-
A
R
'6001'
SS5 SS5
Station 1: Station 2:
CPU CPU
PROFIBU
S
KB
2
3
4
5
...
-
A
T
'6001'
SS5
Node3:
CPU
'E3.0606.6001'
CRV
-
A
R
'S3.0606.KLAUS
BGT3 1P'
-
A
T
...
6
7
-
A
R
'KLAUS'
CTV
CTV
CRV
CRV

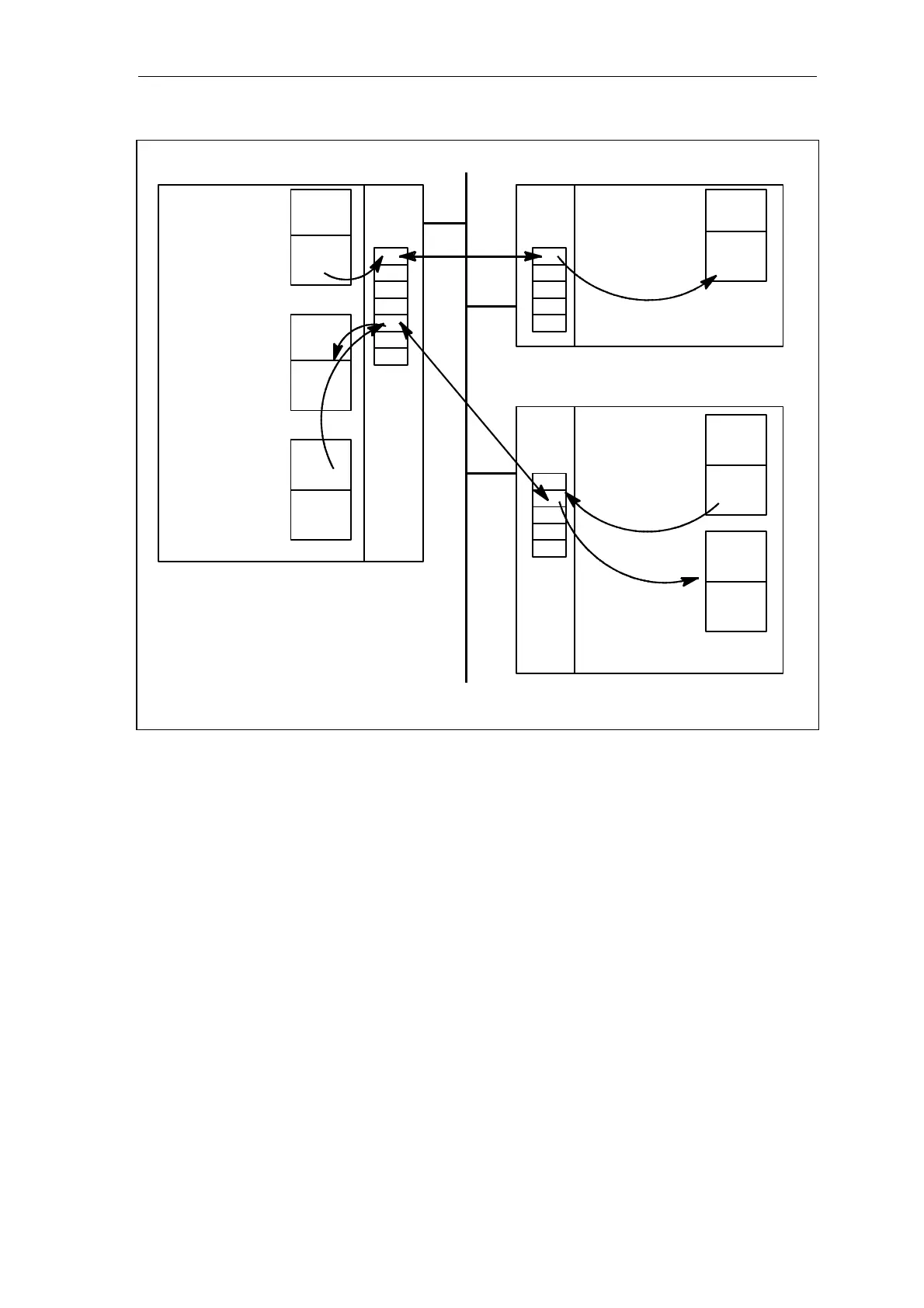

Fig. 3-40 Example 2
• Station 1 is client, station 2 and station 3 are servers.
• An object with PROFIBUS index 6001 is configured at station 2 and
can be written into.
• A communications connection is established between station 1 and
station 2 as well as between station 1 and station 3.
• An object, with the PROFIBUS index 6001 is configured at station 3,
and it can be read. Next to it is an object with the name
"KLAUS___BGT3__1P" which can be written into. The SS5 firmware
generates a name for this object taken from the configured channel
name "KLAUS", the (assumed) subrack names "BGT3", process
number "1" and the utility ID "P" for process data. The channel name
is made up to eight characters by adding "_", and the subrack name to
six characters, also using "_" (separator).
Explanations
