For modes 0, 2, 3 and 4, sources must be assigned to initiate the
configured interrupt tasks.
The settings are made in HW Config in the Properties window under the
"Interrupt task" tab, dependent on the configured hardware components.
Mode Interrupt source to be set for interrupt task Ix of the SIMOLINK blocks, if:
EXM 448-1/ITSL,
1st expansion
EXM 448-1/ITSL,
2nd expansion
optional SLB module
ITSL, 1st expansion
optional SLB module
ITSL, 2nd expansion
0 LE bus interrupt 1 LE bus interrupt 3 LE bus interrupt 2 LE bus interrupt 4
2 LE bus interrupt 5 LE bus interrupt 6 LE bus interrupt 7 LE bus interrupt 8
3 LE bus interrupt 1 LE bus interrupt 3 LE bus interrupt 2 LE bus interrupt 4
4 LE bus interrupt 1 LE bus interrupt 3 LE bus interrupt 2 LE bus interrupt 4
Table 3-62 Interrupt task source assignment for expansion modules with SIMOLINK

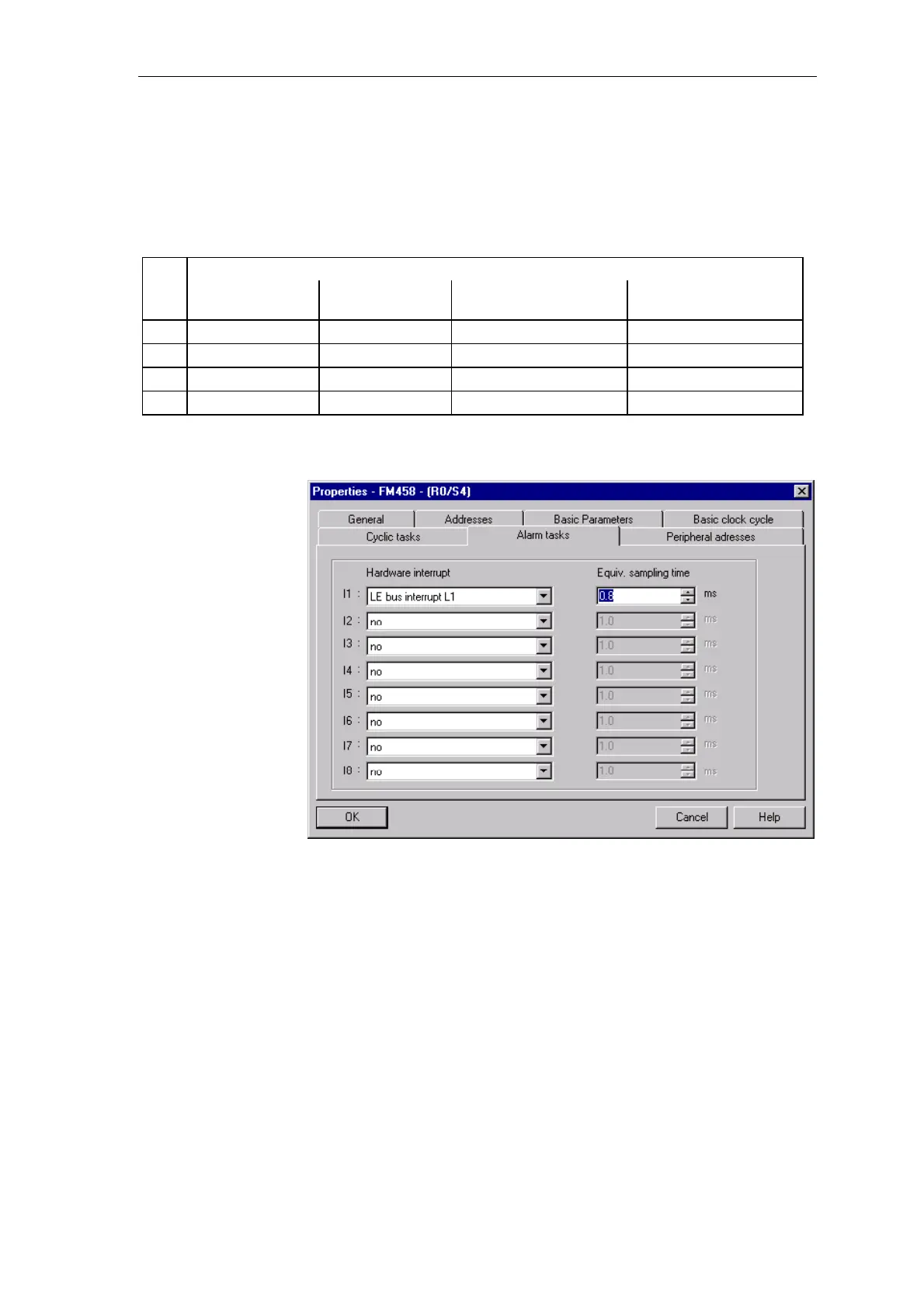

Fig. 3-64 Alarm task setting in the HW Config
The SIMOLINK blocks @SL, SLAV, SLD, SLDIS, SLSV, SLSV2 and
SLSVAV must be assigned to a HW address in the HW Config properties
window of the EXM 448 under the "Plug-in module / I/O addresses tab.
The "process I/O" should be activated as plug-in module type. After this,
symbolic names can be assigned for the I/O addresses (pre-set symbolic
names are entered via the "Default" button.
The SIMOLINK blocks only use the symbolic name under “I/O address 2”
(SIMOLINK does not require “I/O address 1”).
