10.4 Device views with spare part numbers
FIDAMAT 6
166 Operating Instructions, 01/2019, A5E00222135-04
①⑩
Outer ring
Gasket
Pressure ring
Union nut
C79451-A3040-D122
C79451-A3040-D105
A5E00295333
C79451-A3040-D127
②
Crimp restrictor DR4
A5E00296573
③
FI detector, complete
A5E00295816
④
3-way distributor T4
A5E00296591
⑤⑧
Outer ring
Gasket
Pressure ring
Union nut
C79451-A3040-D122
C79451-A3040-D103
A5E00295333
C79451-A3040-D127
⑥
Outer ring
Gasket
Pressure ring
Union nut
C79451-A3040-D122
C79451-A3040-D102
A5E00295333
C79451-A3040-D127
⑦
Cable, measurement cable 230 V
A5E00284094
⑧
see ⑤
⑨
3-way distributor T3
A5E00296588
⑩
see ①
⑪
3-way distributor T2
A5E00296585
⑫
Cable, polarization voltage
A5E00284092
⑬
Crimp restrictor, restrictor line 1FS, complete DR13
A5E00417394
⑭
4-way distributor T1
A5E00296582

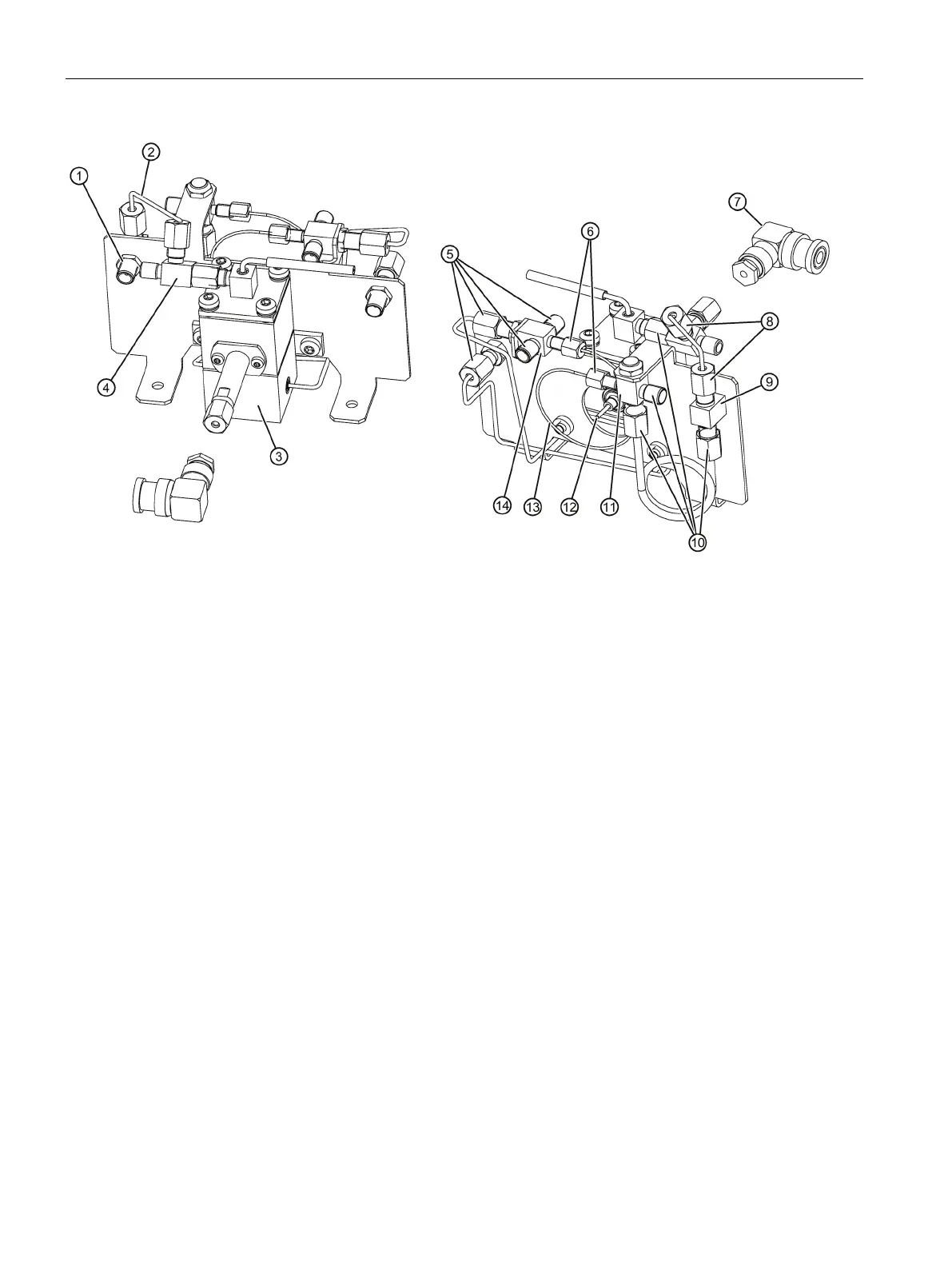

Figure 10-11 FID oven insert A5E00429789 FIDAMAT 6-G
