Appendix
A.5 Wiring diagrams
FIDAMAT 6
Operating Instructions, 01/2019, A5E00222135-04
181
A.5.2 Plug connector assignment of the optional board and PROFIBUS

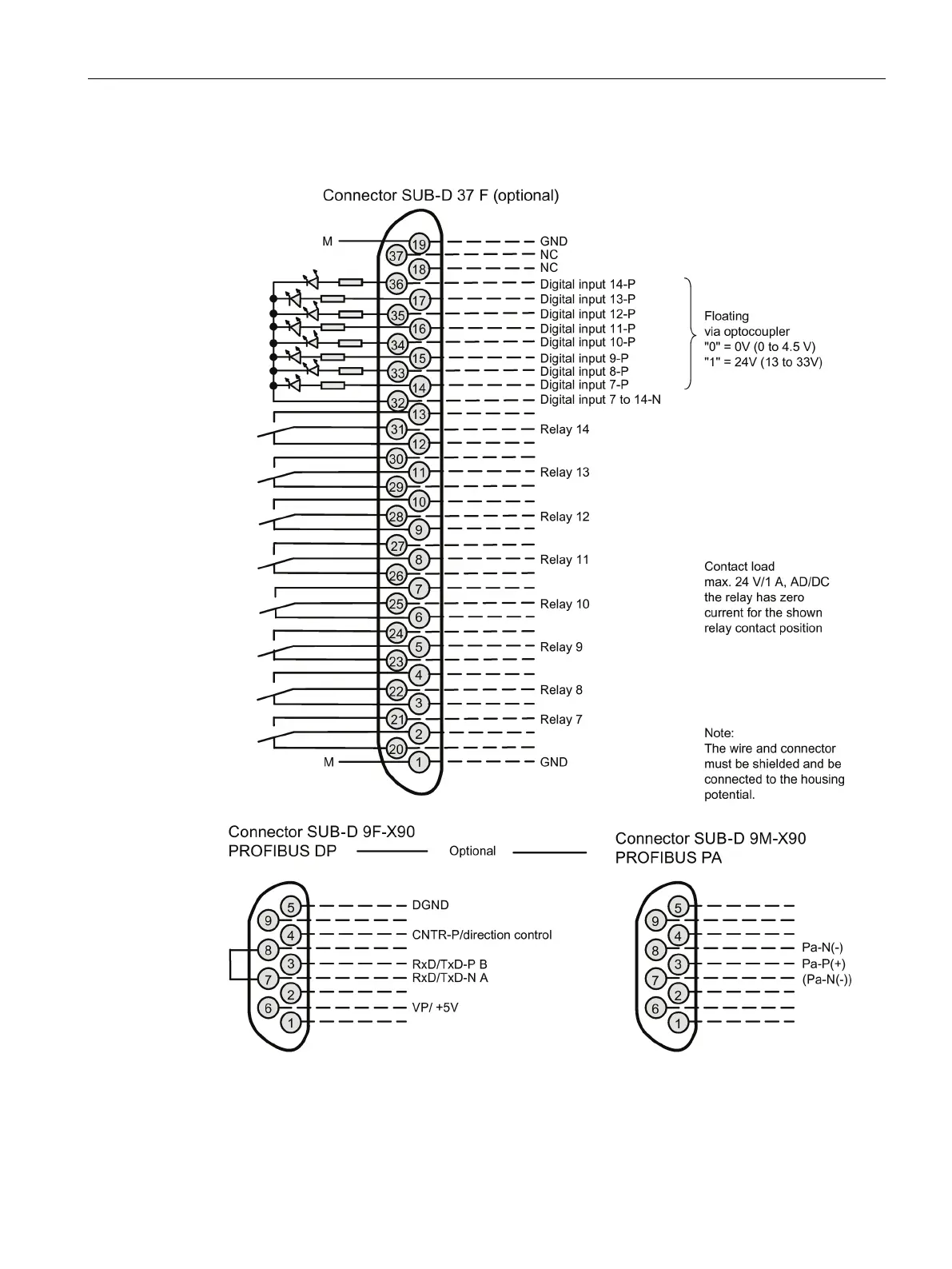

Figure A-3 Pin assignment of the option board and PROFIBUS connector, 19" rack unit
