Description
3.5 Gas flow
FIDAMAT 6
28 Operating Instructions, 01/2019, A5E00222135-04
3.5 Gas flow
3.5.1 Gas flow of the FIDAMAT 6-E
①
Sample chamber
⑩
Sample gas
②
Heated oven
⑪
Zero gas
③
Pressure sensor
⑫
Calibration gas
④
Mechanical pressure regula-
tor
⑬
Filter
⑤
Solenoid valve
⑭
Mechanical pressure regulator
⑥
Restrictor
⑮
Pressure sensor
⑦
Combustion gas H
2
⑯
Pump
⑧
Gas exhaust
⑰
Damping
⑨
Combustion air
⑱
Restrictor

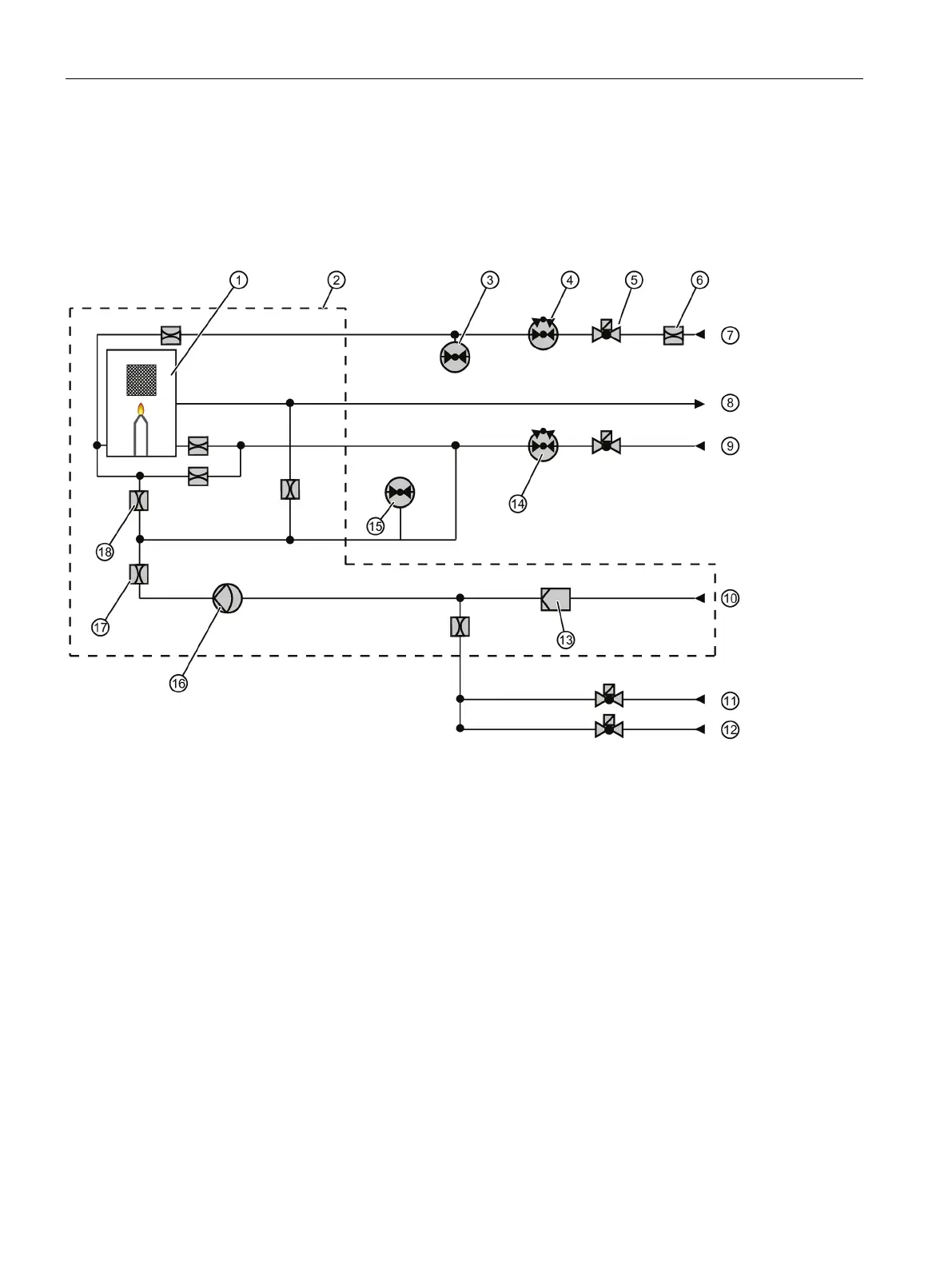

Figure 3-3 Gas flow FIDAMAT 6-E
