Siemens LMV5 Series Technical Instructions

TechnicalInstructions  LMVSeries
DocumentNo.LV5‐1000
Section6 Page32SCCInc.





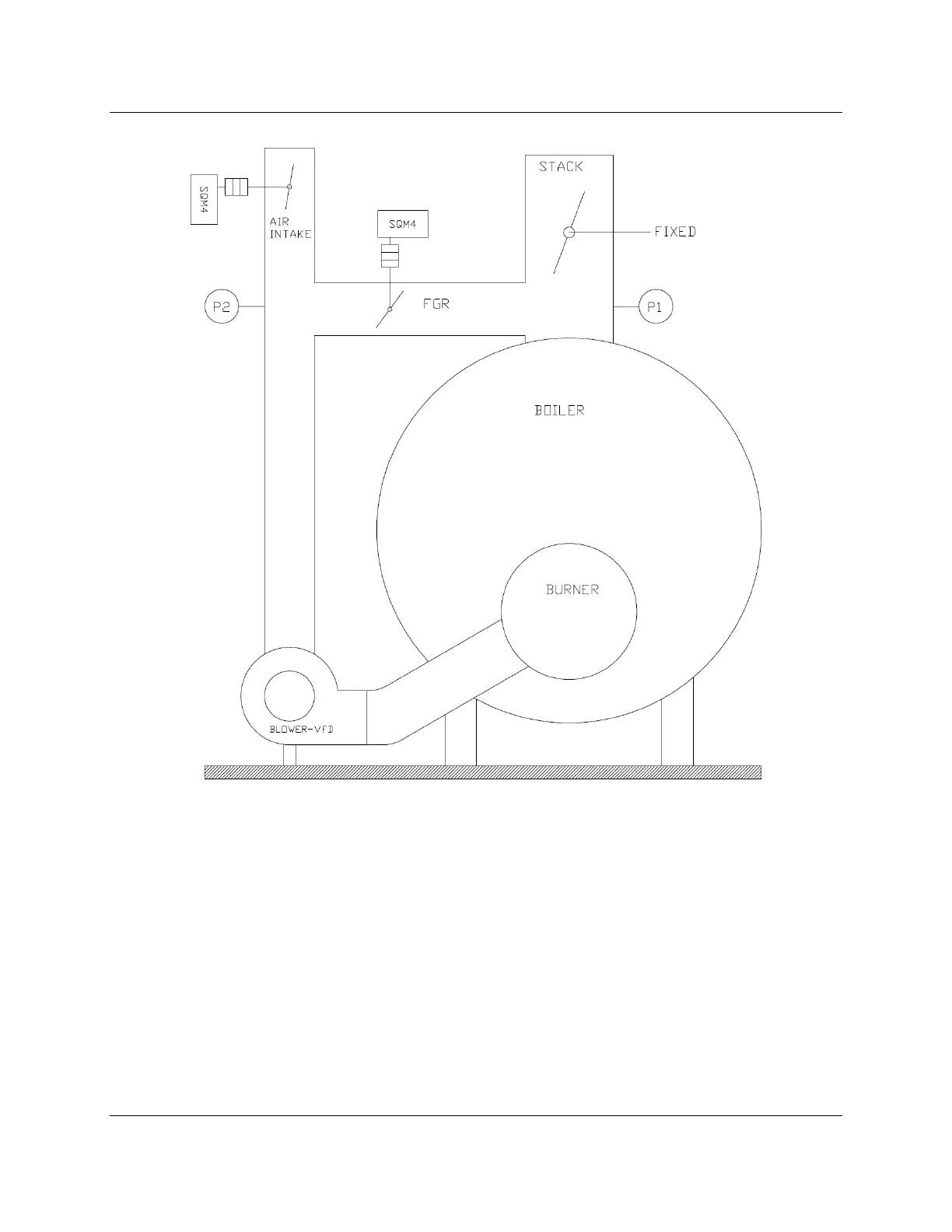

Figure6‐13:FGRBurnerwithVFDandAirDamperonBlowerInlet


Insummary,thearrangementshowninFigure6‐13ispreferableforthefollowingreasons:

1. BetterrepeatabilityofFGRflowwithslightpressurechangesfromP1toP2.
2. GreateradjustabilityoftheFGRtoairratiowhentrimming.
3. TheabilitytodrawmoreFGRatlowerfiringrates.






