Service and diagnostics
5.5 How to search for stations within the system network
PCU-Basesoftware (IM8)
Commissioning Manual, 02/2014, 6FC5397-1DP40-4BA0
129
Note
local device #
When the devices are listed, an IP address will
be identified with "#" to indicate that
this is the local device on which the VNC scanner will be used.

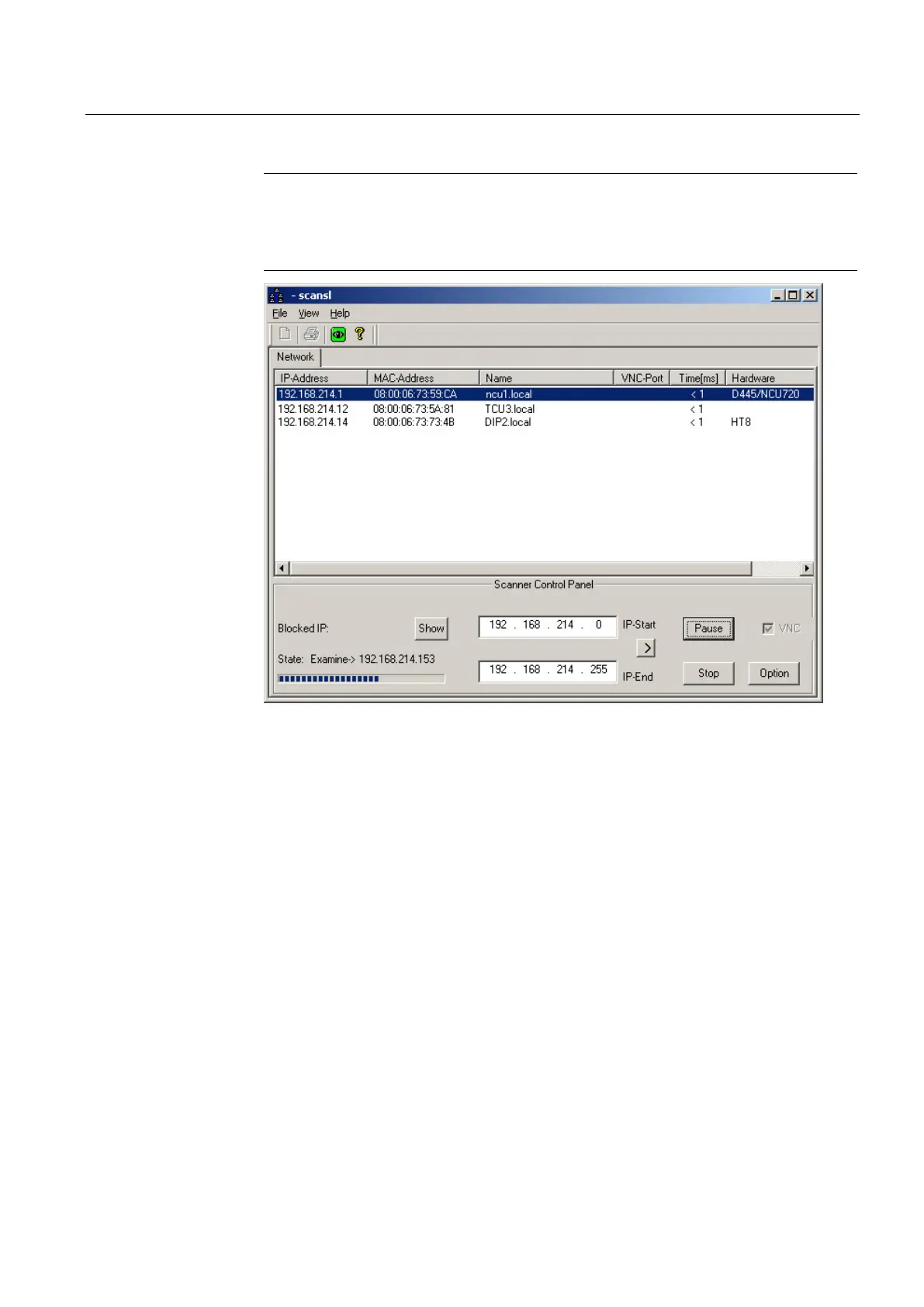

Figure 5-4 VNC scanner: List of stations
2. By right-clicking a network station from the list, you can execute the following actions via
a pop-up menu:
– "VNC": Connecting directly to the VNC server and, if applicable, operating the HMI.
– "VNC → Auto reconnect": Corresponds to the option "Automatic reconnect if the server
closes the connection" in order to restore the connection to the selected network
station.
– Ping: Opens a command shell and executes the "ping" command to the selected
network station.
