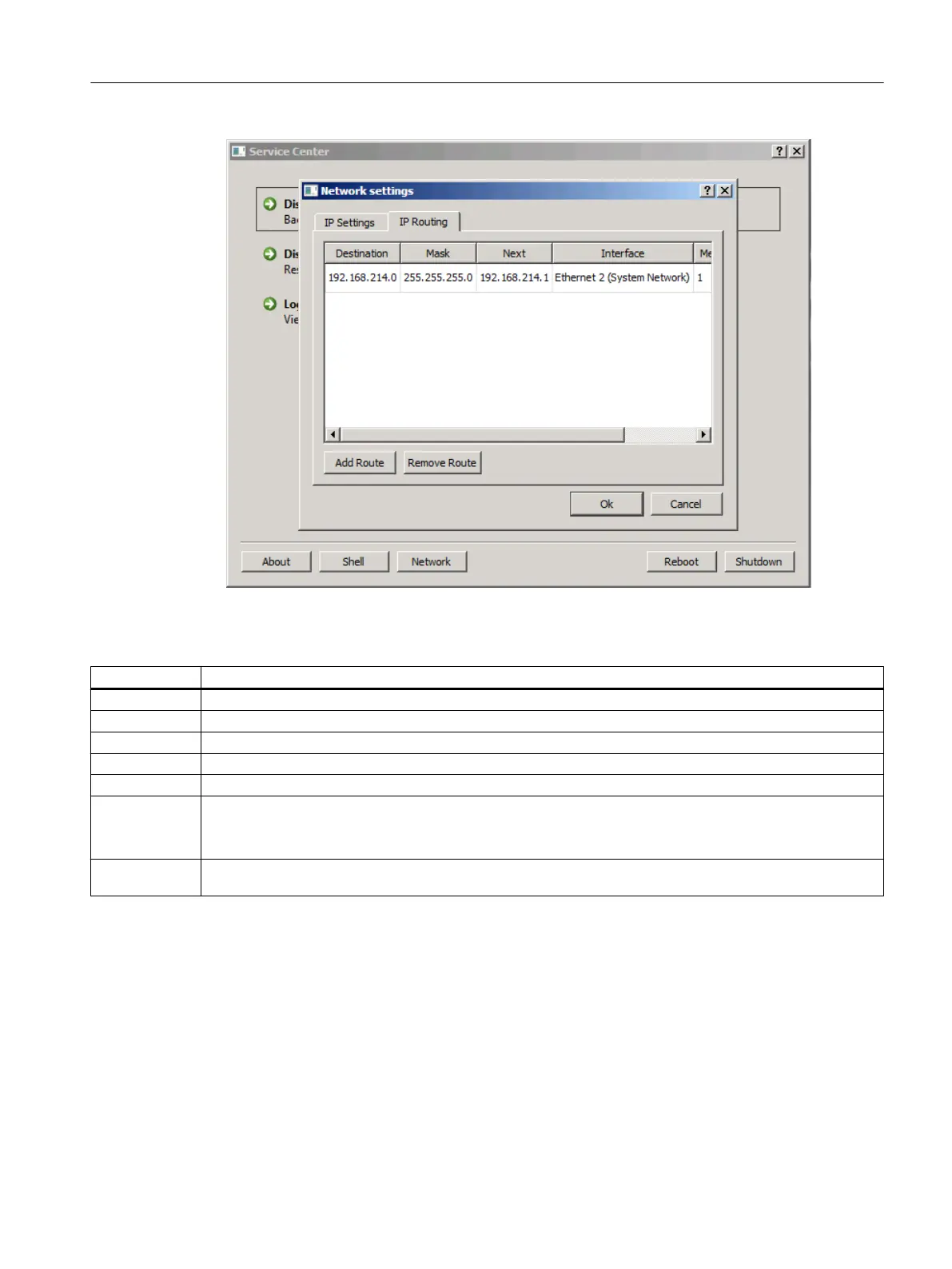

Figure 6-3 Service Center - IP routing
Table 6-3 Routing settings in the "Network Settings" dialog box
Settings Purpose
Add Route Add a new route.
Remove Route Delete a selected route.
Destination Specify the network destination of the route as an IP address.
Mask Subnet mask of the specified IP addresses.
Next Next hop or forwarding IP address via which the network destination can be accessed.
Interface Select an interface to which the configured IP routing applies:
● Enterprise network interface X1 (Local Area Connection 2)
● Plant network interface X2 (Local Area Connection)
Metric Integer cost metric (1 to 9999). Required if several routes for sending a packet to a network destination are possible in
the routing table.
See also
Network settings (Page 10)
Release directory of the PC/PC in the network (Page 148)
Creating a shortcut to the network drive (Page 151)
Configuring routing in the network (Page 144)
Backing up and restoring data
6.4 Network settings in the Service Center
PCU Base Software (IM10)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 127
