Accessories
9.14 Display (3KC8 only)
Manual, 08/2017, L1V30368969104A-02
165

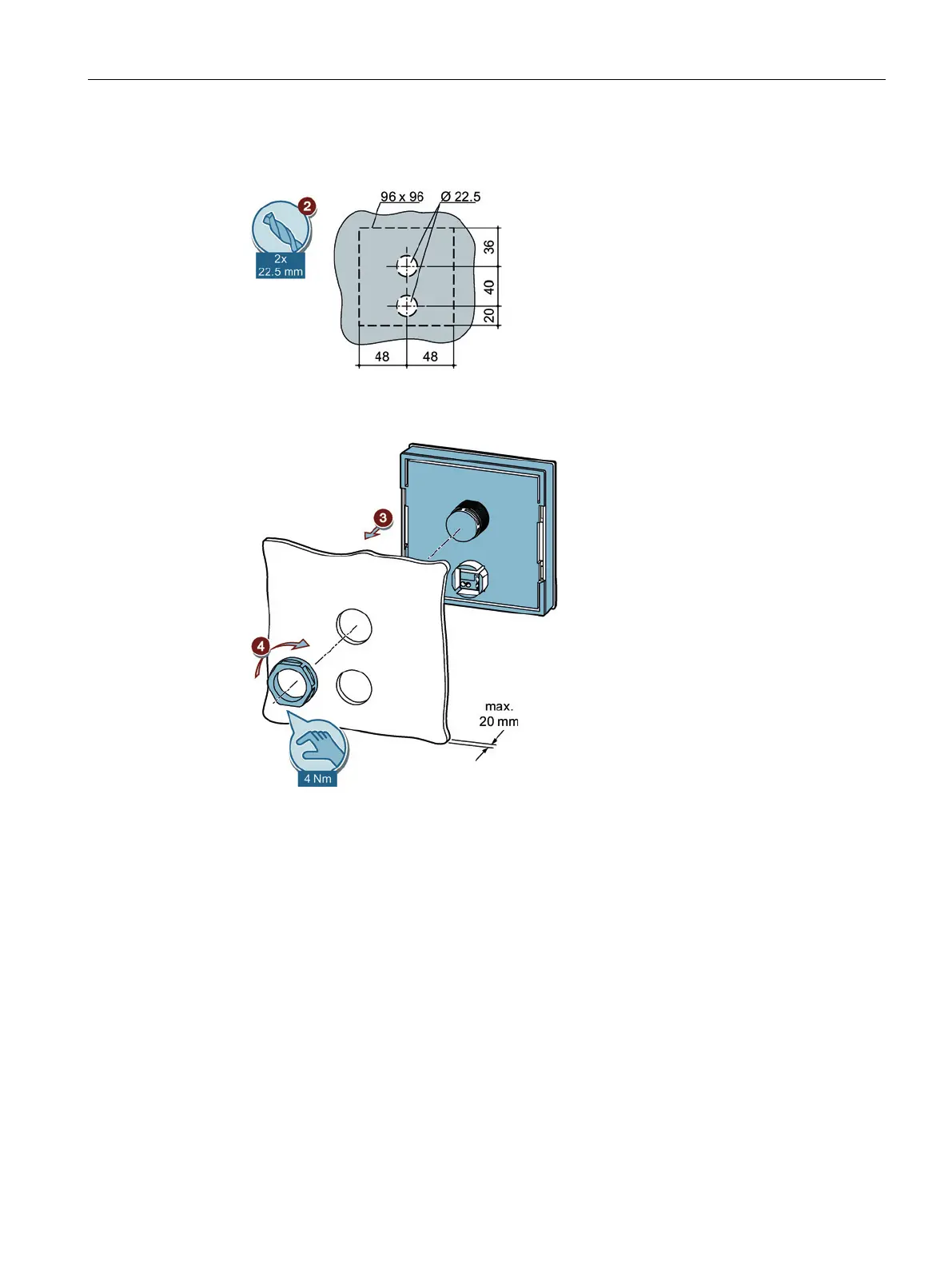

2. Drill two holes with a diameter of 22.5 mm at the point in the door where you would like to
mount the display. Note the dimensions in the figure:
Figure 9-28 Cabinet door drill holes
3. Insert the bolt thread and the connection socket of the display through the two drill holes.
Figure 9-29 Mounting the display
4. Place the nut on the bolt thread and tighten it with the specified torque.
