Accessories
9.14 Display (3KC8 only)
166 Manual, 08/2017, L1V30368969104A-02
The 3KC9823-2 connection cable is required for connecting the display to the transfer
switching equipment (see also the section titled Connection cable (3KC8 only) (Page 167)).
1. Connect one end of the 3KC9823-2 connection cable with the connection socket on the
rear of the display.

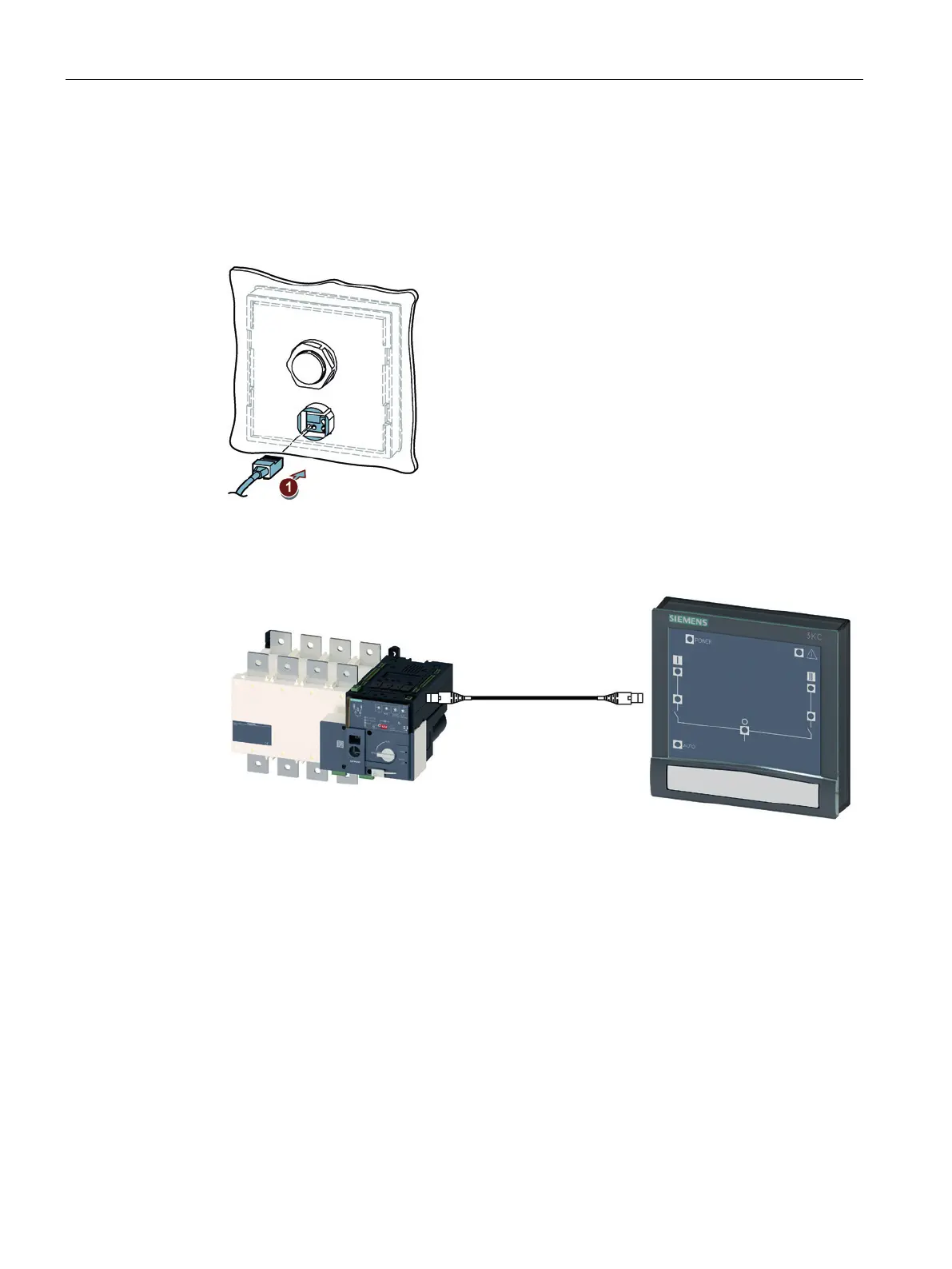

Figure 9-30 Connecting the 3KC9823-2 connection cable on the display
2. Connect one end of the connection cable 3KC9823-2 with the connection socket on the
rear of the display.
Figure 9-31 Connecting the display on the transfer switching equipment
