6.2 Connecting the main circuit
Manual, 08/2017, L1V30368969104A-02
47
Current ratings 250 A to 630 A
Requirements
● Main circuit is disconnected
● Transfer switching equipment is in the "Manual" position

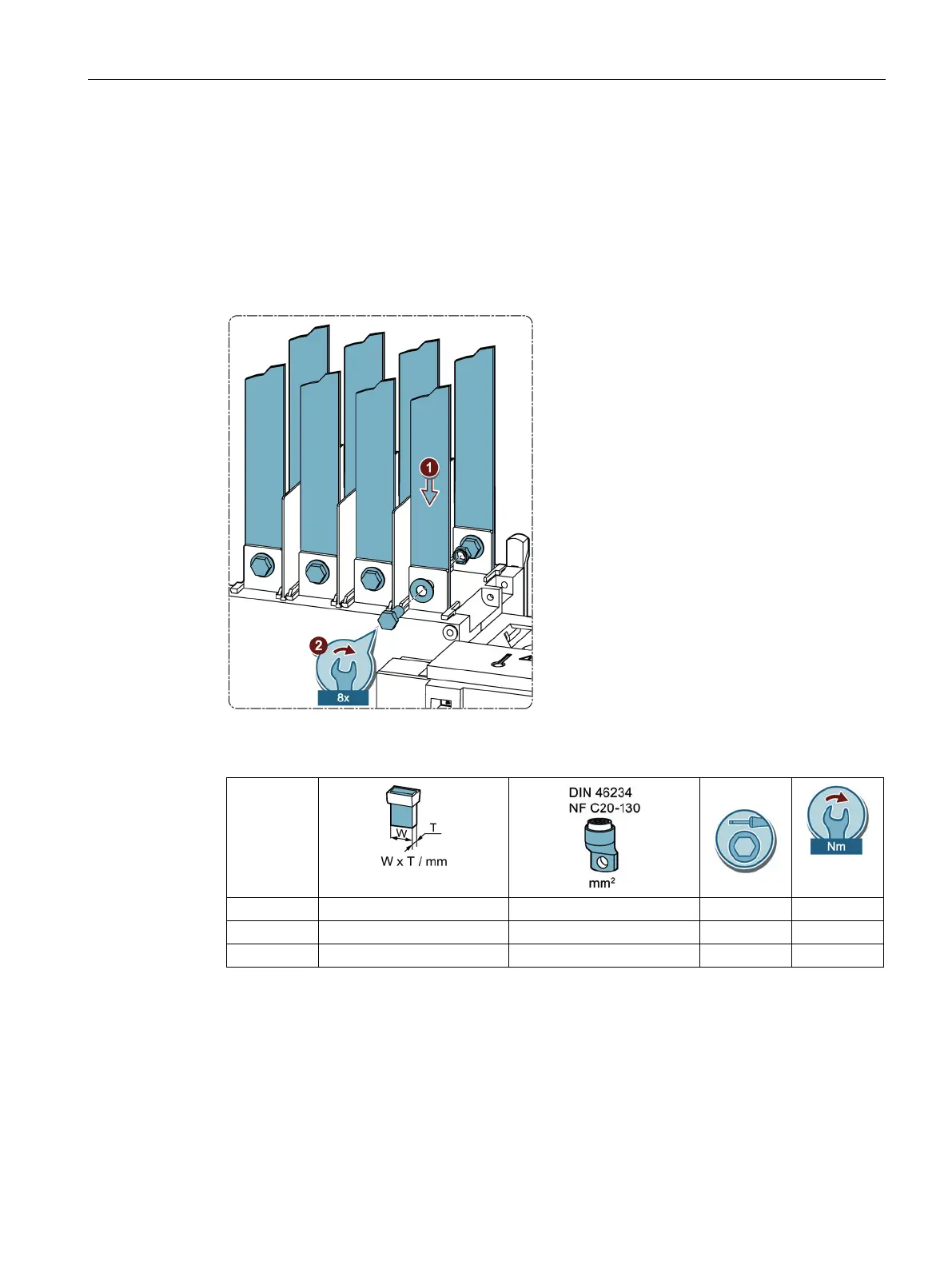

Figure 6-14 Connecting current ratings 250 A to 630 A
250 A 1 x 30 x 4 ... 1 x 32 x 5 120 ... 150 M10 20 ... 26
400 A 1 x 30 x 8 ... 1 x 32 x 8 240 M10 20 ... 26
630 A 2 x 40 x 5 ... 2 x 50 x 8 2 x 185 ... 2 x 300 M12 40 ... 45
1. Mount the cable lug or the busbar according to the figure.
2. Secure the connection with 1 bolt, 2 washers, and 1 nut on the cable lug or the busbar.
