Connection
6.2 Connecting the main circuit
48 Manual, 08/2017, L1V30368969104A-02
Current ratings 800 A to 1600 A
Requirements
● Main circuit is disconnected
● Transfer switching equipment is in the "Manual" position

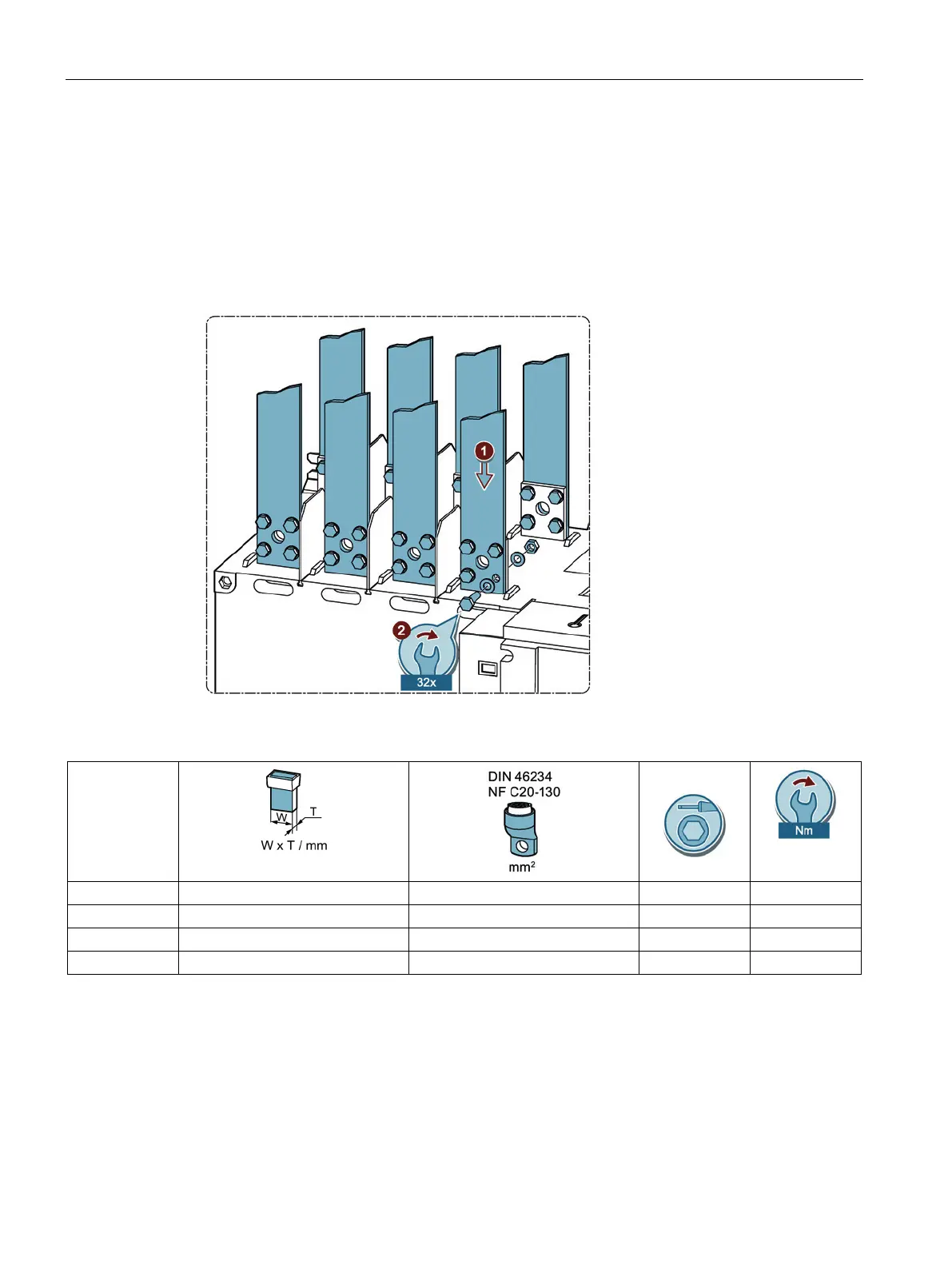

Figure 6-15 Connecting current ratings 800 A to 1600 A
800 A 2 x 50 x 5 2 x 240 ... 2 x 300 M8 8.3 ... 13
1000 A 2 x 60 x 5 4 x 185 M8 8.3 ... 13
1250 A 2 x 60 x 7 4 x 185 M10 20 ... 26
1600 A 2 x 100 x 5 6 x 185 M12 40 ... 45
1. Mount the cable lug or the busbar according to the figure.
2. Secure the connection with a cable lug or the busbar.
– For current ratings of 800 A to 1250 A with 4 bolts, 8 washers, and 4 nuts in each
case.
– For current ratings of 1600 A with 2 bolts, 4 washers, and 2 nuts.
