6.2 Connecting the main circuit
58 Manual, 08/2017, L1V30368969104A-02
Mounting and connecting version 2 (3200 A)

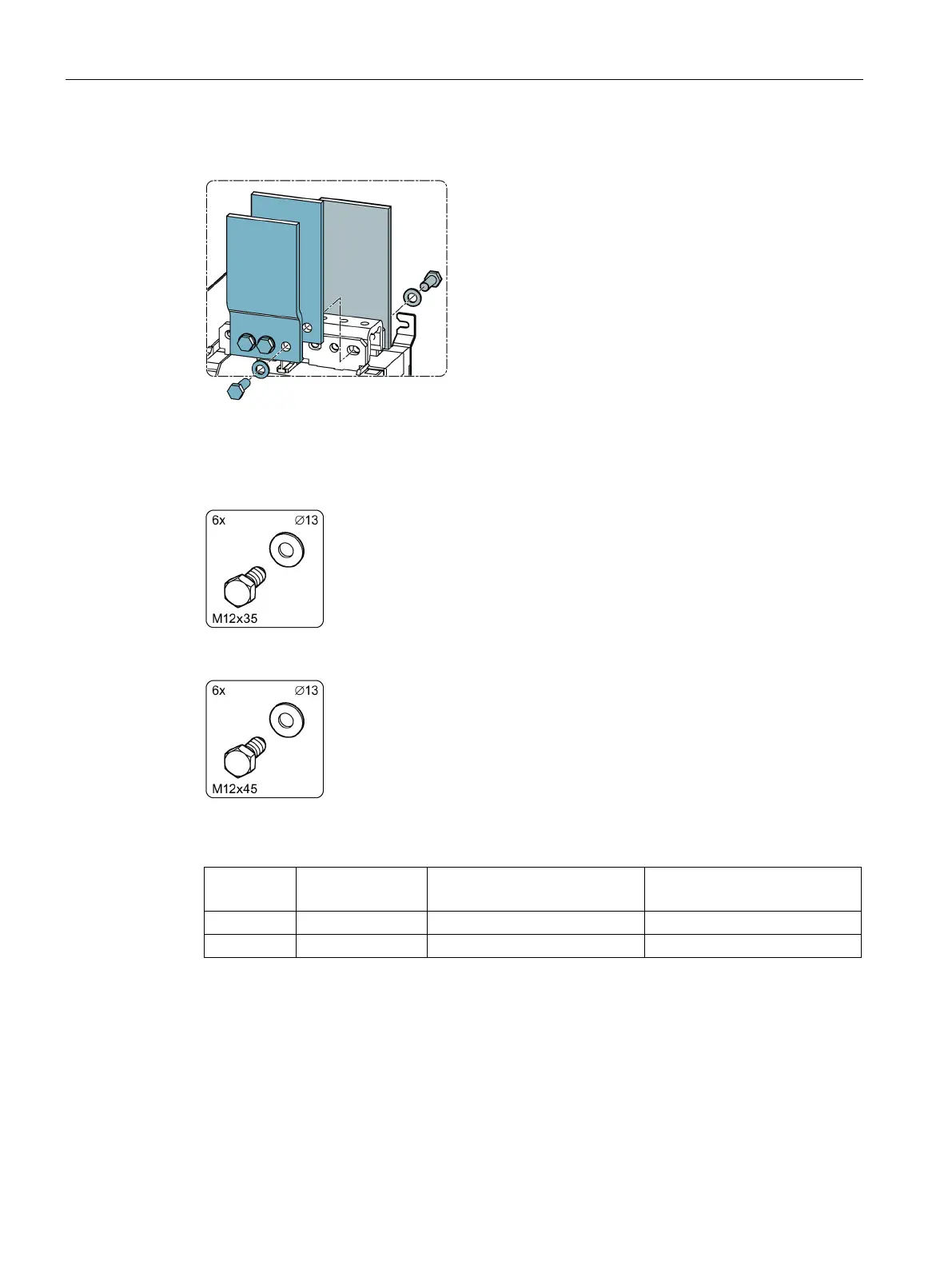

Figure 6-29 Connecting busbar, version 2
The following components of the copper bar connection kit are required in the following
quantities for these versions:
Figure 6-30 Bolt set, part B, 35 mm short length, 3KC9811-2
Figure 6-31 Bolt set, part B, 45 mm, 3KC9811-1
Bolt set, part B, 35 mm
(3KC9811-2)
1)
Bolt set, part B, 45 mm
(3KC9811-1)
1)
3-pole 3200 A 3 x 3 x
4-pole 3200 A 4 x 4 x
1) Contains only the quantity for line-side connection
This variant is connected directly to the power supply systems via the busbars. Part A is
included with the transfer switch and must be secured.
