Connection
6.2 Connecting the main circuit
70 Manual, 08/2017, L1V30368969104A-02
Mounting versions 9 to 12 copper bar connection kit
1. Insert a connection, part A (3KC9811-0) between every pair of opposite connecting
terminals.

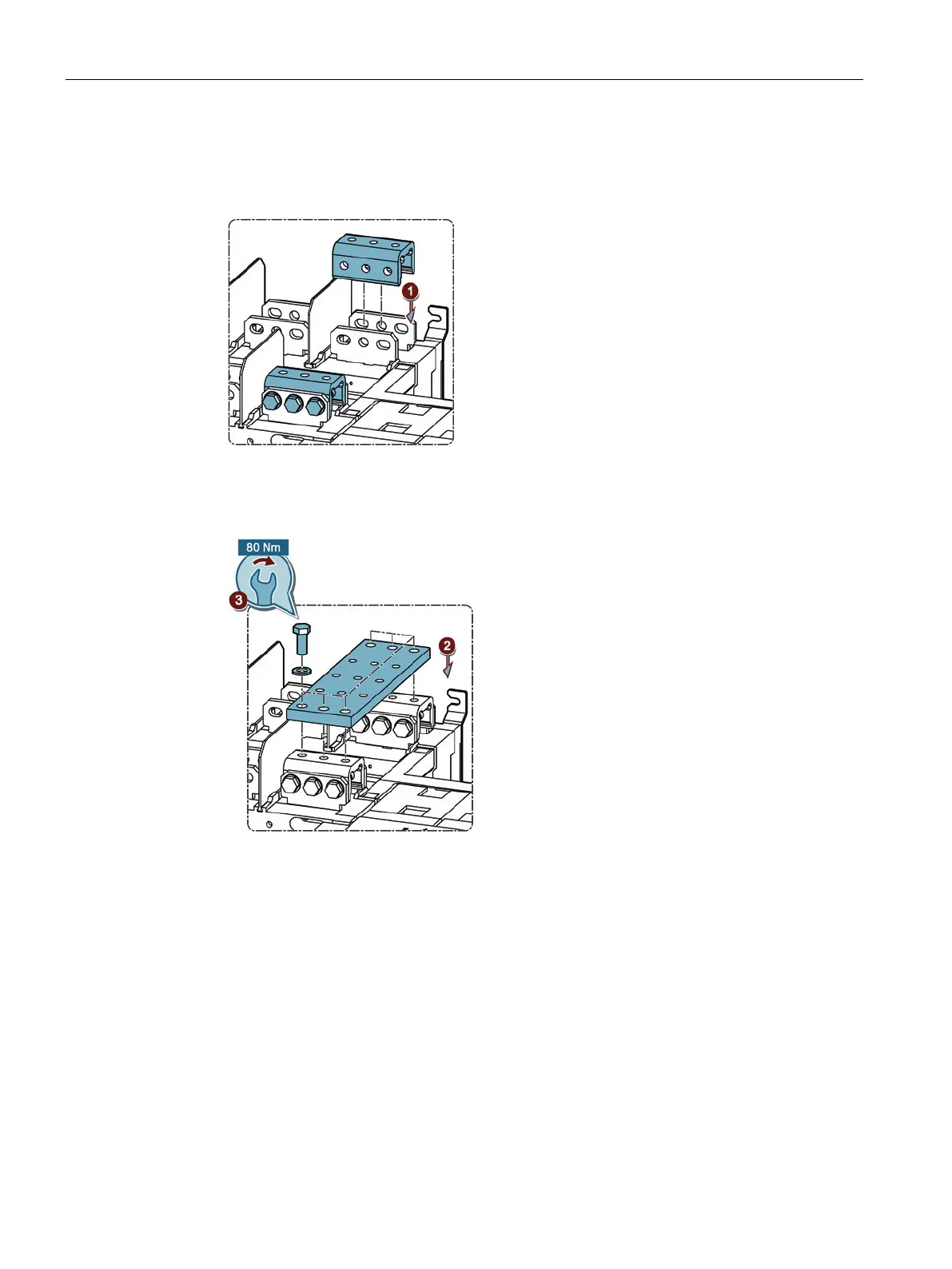

Figure 6-46 Inserting connection, part A
2. Position the bridging bar, part E (3KC9811-8) as shown in the figure on the already
mounted parts A.
Figure 6-47 Mounting bridging bar, part E
3. Mount the bridging bar with the supplied bolts and washers on the parts A.
