6.3 Connecting the control circuit
96 Manual, 08/2017, L1V30368969104A-02
The following figure shows the 3KC9822-, 3KC9832- auxiliary conductor terminal connection
kit for 3-pole applications without neutral.

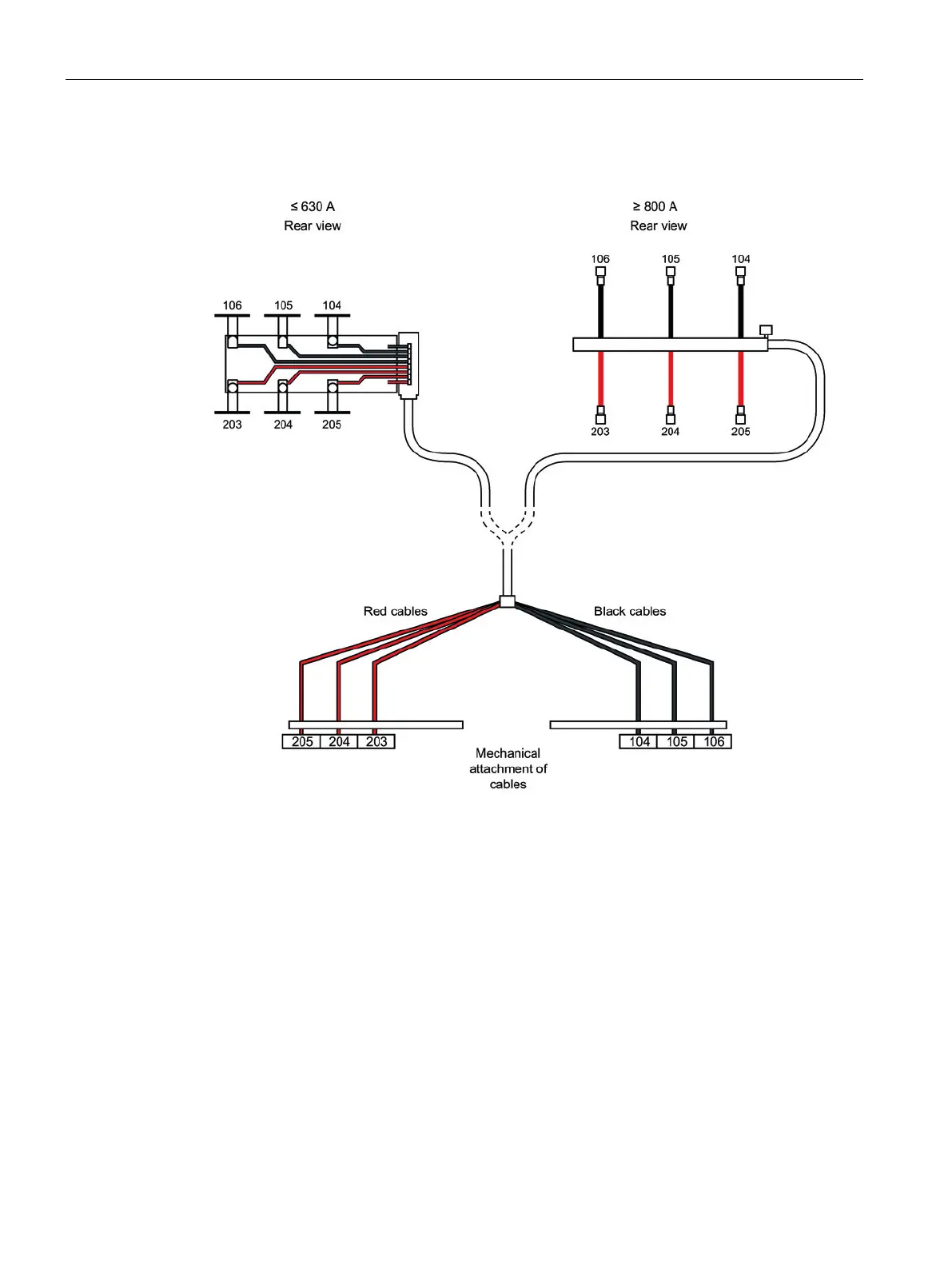

Figure 6-83 3KC9822-, 3KC9832- auxiliary conductor terminal connection kit for 3-pole applications
without neutral (3KC9832- for fastening on top of the transfer switching equipment is
shown here)
