Connection
6.3 Connecting the control circuit
Manual, 08/2017, L1V30368969104A-02
99

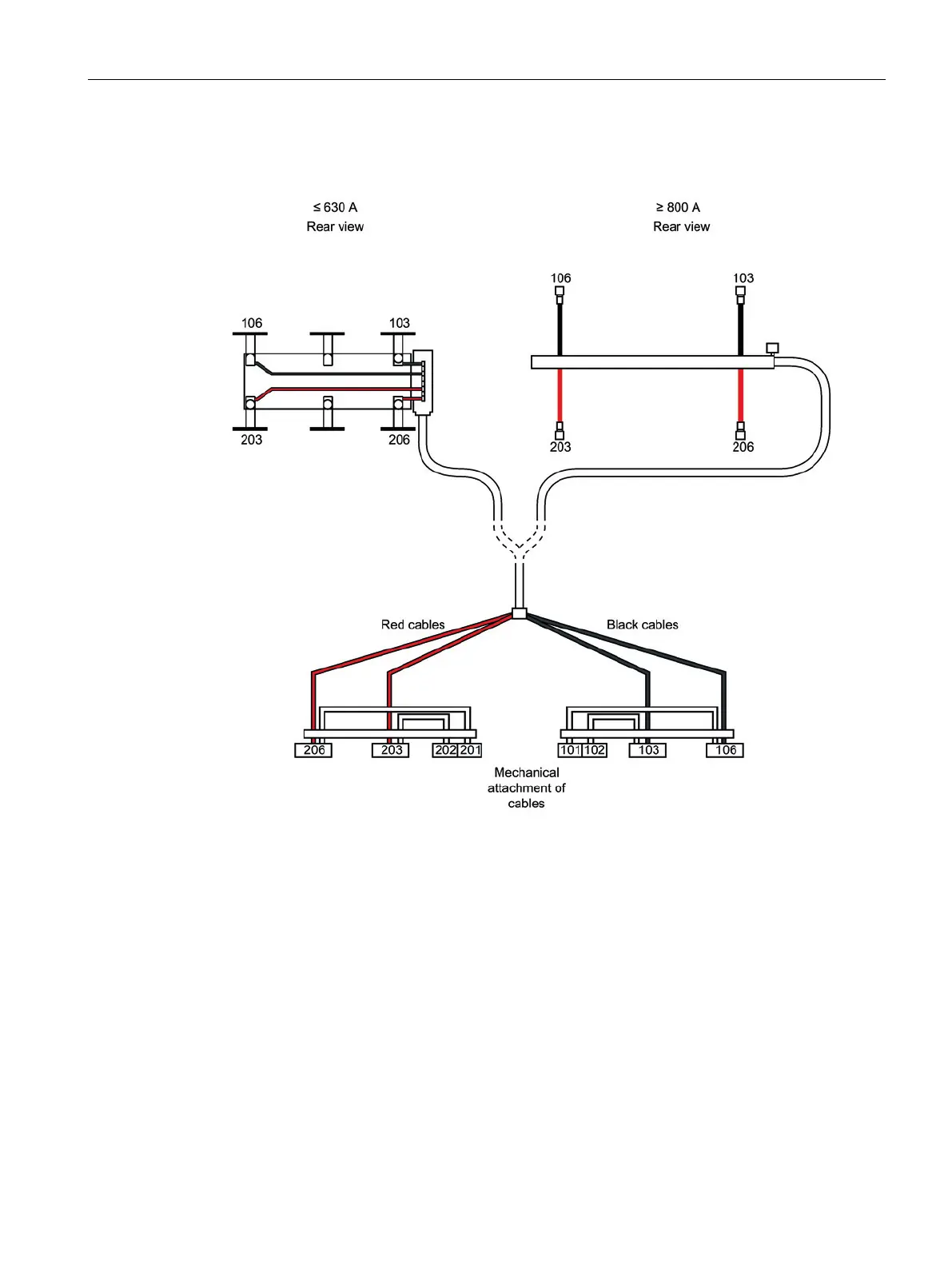

The following figure shows a 3KC9833-, 3KC9834- power supply kit for a single-phase
network
Figure 6-86 3KC9833-, 3KC9834- power supply kit for a single-phase network (3KC9834- for
fastening on top of the transfer switching equipment is shown here)
